Home > Products > a. Crushing Machine > Energy-saving Lab Jaw Crusher, Stone Crusher
Energy-saving Lab Jaw Crusher, Stone Crusher
- 120 Set / Sets per Month
- Qingdao Shanghai Shenzhen Tianjin etc.
- T/T Credit Card
You May Like
Product Details
| Type | Other, Jaw Crusher, Jaw Crusher,Crusher | |||
| Application | Break ore and bulk materials | Motor Type | DC Motor | |
| Power(W) | 5-40kw | Capacity(t/h) | 1-800 | |
| Place of Origin | Henan, China | Brand Name | DSM | |
| Model Number | PE, PE Series,PEX Series | Weight | 0.5-110t | |
| Certification | ISO CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Lab Jaw Crusher1.Simple structure
2.Easy maintenance
3.Stable performance
4.Good quality
Energy-saving Lab Jaw Crusher , Stone Crusher
Brief introduction
Lab Jaw Crusher has two jaws in crushing room,one is called moving jaw,the other is called static jaw,it simulates animal jaw movement to finish crushing process.
Application
Usually Lab Jaw Crusher is widely used for medium-grained crushing(various ore and bulk materials) in this industries such as mining,metallurgy,building materials,road,railway,water conservancy,chemical industry etc.The maximum compressive strength of raw materials is 320Mpa.

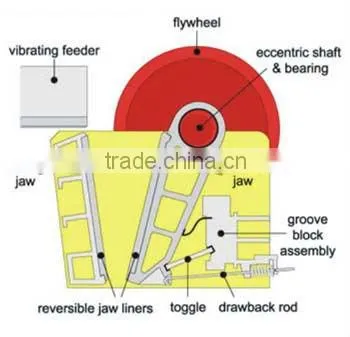

Operating Principle
The motor drives the belt wheel,and makes movable jaw up and down by eccentric shaft. When the movable jaw rises,the angle between the fixed jaw and movable jaw gest larger,and the materials can be crushed to reach the crushing target.When the movable jaw is down, the angle between the fixed jaw and movable jaw becomes smaller.The movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring. and then the crushed materials are discharged from the lower outlet of the crushing cavity.
Features
It features of simple structure,large crushing ratio, high output,even particles convenient maintenance,low production cost and soon.

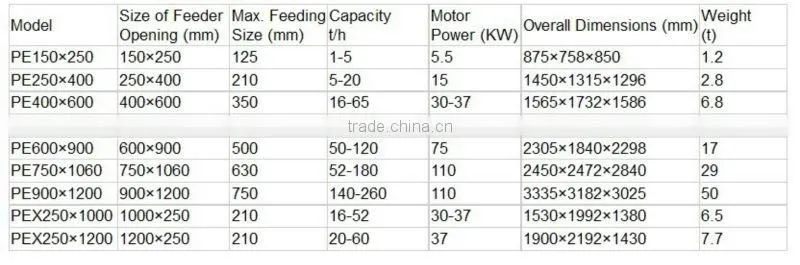

Specifications
Contact Us
- Henan Dashan Mining Machinery Co., Ltd.
- Contact nameJuan Wei Chat Now
- Phone0086-371-63525818
- AddressJiulong Industrial Park, Zhongyuan District, Zhengzhou, Henan
