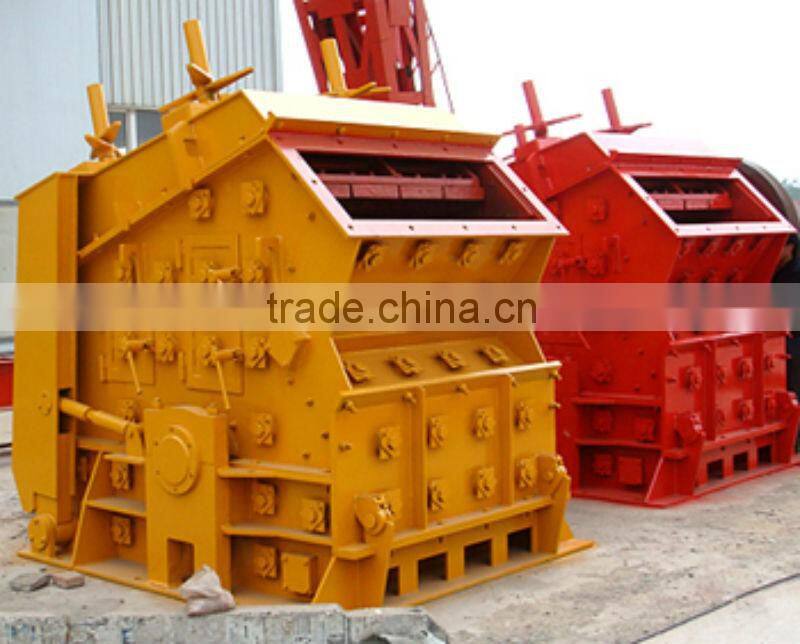

Energy-saving Blow Bar for Impact Crusher

Specifications

Energy-saving Blow Bar for Impact Crusher

Brief introduction

Blow Bar for Impact Crusher is optimized after adopting domestic and foreign technique.It can process granite,basalt,limestone,etc,which the granularity is not bigger than 120-300 mm and crushing compression strength is not more than 320mp.It features high crushing scale,high crushing efficiency,and it is convenient for maintenance.This cubeshaped fineness product is the first-class device used in high grade road surface,railway,water conservancy and eledtrictiy industry.

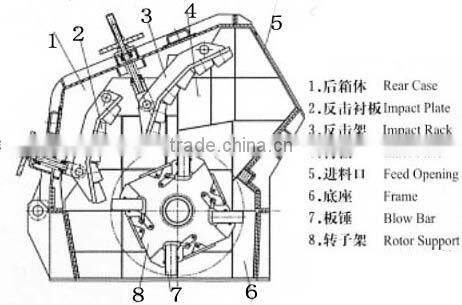

Impact Crusher Operating principle

Blow Bar for Impact Crusher is a kind of crushing equipment, using impact energy to crush materials. When materials get into the area where the board hammer plays a part, under the impact function of board hammer at a high speed, the crushed ones are thrown to the impact device above the rotor continuously. And then they are rebounded from the impact liner to the area where the board hammer plays a part, and are impacted again. The materials from large ones to small ones get into the impact cavity for being crushed repeatedly. The process is going on until the materials are crushed to the required sizes and discharged from down of the machine.
