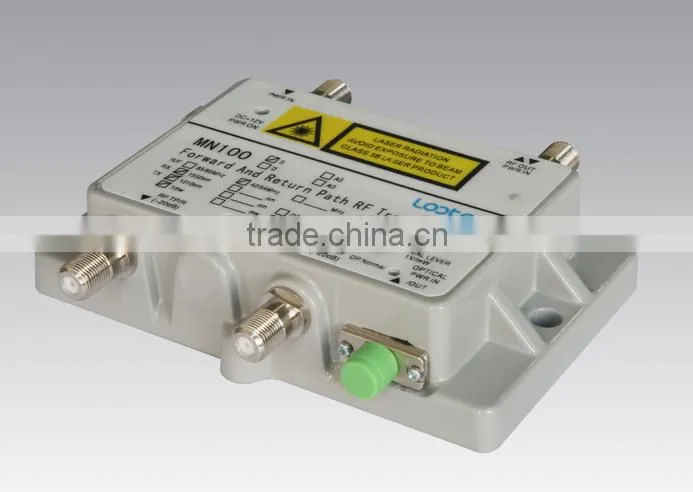

optical node TON6800E 1GHz FTTH Optical Mini Node
Overview
TON6800E is bi-directional node designed for FTTH applications, is applied to be terminal equipment for television and data service of advantaged HFC network.
Features
u Adopting high-sensitivity optical filter
u The first grand of RF amplifier adopts pHEMT GaAs FET technology,which is fit in low-power receiving
u Local coaxial power supply
u Aluminum case with excellent heat dissipation
u Users can choose backward port,and it can be used as one way FTTH optical receiver,too
Diagram
Technical parameters
Item |
Condition |
Unit |
Parameters |
Forward RF parameters | |||
Bandwidth |
|
MHz |
87 ~ 870(1000) |
Flatness |
Worst |
dB |
±0.75 |
Impedance |
|
Ω |
75 |
RF out level |
|
dBmV |
Optical power:24±2@ -4dBmW Modulation OMI=3.7% |
RF reflect loss |
Worst |
dB |
16 |
RF out test point |
|
-dB |
20±0.75 |
CNR |
|
dBc |
>48 @ –4dBmW Optical power |
CTB |
|
dBc |
>70 @ –4dBmWOptical power |
CSO |
|
dBc |
>65 @ –4dBmWOptical power |
Forward optical parameters | |||
Receiving power |
|
dBm |
-8 ~ 0 |
Power test point |
|
V/mW |
+1V/mW |
Equivalent noise current |
|
|
<4pA /√H |
Working wave length |
|
nm |
1200~1600 |
Backward RF parameters | |||
Bandwidth |
|
MHz |
5 ~65 |
Flatness |
Worst |
± dB |
0.75 |
Impedance |
|
Ω |
75 |
RF reflect loss |
Worst |
- dB |
16 |
RF input level |
|
dBmV |
20 |
RF test point |
|
-dB |
20±0.75 |
Backward optical parameters | |||
Transmitter type |
|
|
IFP |
Out power |
Standard |
dBmW |
0 |
Power test point |
|
V/mW |
+1V/mW |
Wave length |
|
nm |
1310 |
NPR |
|
dB |
20(≥30dB) |
General | |||
Operating temperature |
|
℃ |
- 25~+65 |
Voltage |
|
VDC |
+12 ~ +24 |
Power consumption |
|
W |
4 |
surge protection |
|
KV |
6 |
RF output stability |
|
dB |
±0.75 |
Connector type |
|
|
SC/APC |
