MN100S RF PON(RFoG) TDM Transceiver

Name: MN100S RF PON(RFoG) TDM Transceiver
Brand: Lootom
SKU: 112122029
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Lootom

Model Number:

MN100

Lootom Telcovideo Network (Wuxi) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Lootom

Model Number MN100

Specifications

MN100S(RFPON) RFoG TDM transceiver
up to 1.1Ghz
Burst mode laser
Single fiber input/output
apply to CMTS system, DOCIS

Features

· For FTTH

· Using the low noise pHEMT GaAs FET as the first RF amplify module, fit to low optic power input

· Support the universal HFC set-top box, cable modem and head-end equipment

· Transparent return path capability (protocol and modulation format agnostic)

· Optical AGC function ( reach the positive RF level)

· Reduce the convergence noise

· Local or remote power supply

· Die-casting aluminum housing, excellent heat dissipation performance

· It is compatible with DAVIC and DOCSIS

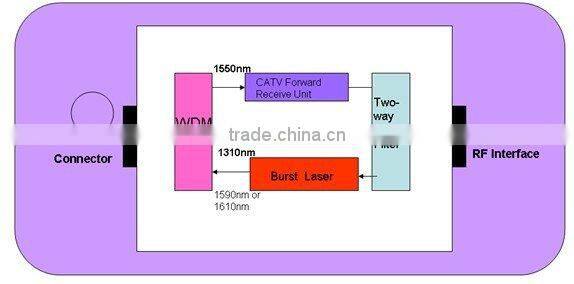

Diagram

Specifications

Number	Item	Unit	Description	Remark
Physical
1	Dimension	mm	31×128×78	H×W×D
Indicators
2	Red Light		Power supply
3	Green Light		Optic power
4	Test Point	V/mW	1V/mW
Optic Connector
5	Optic Connector		SC/APC
Customer Interface
6	RF Connector		75Ω "F" connector
7	Power Supply Connector		“F” connector
Forward Path Parameter
8	Input Wavelength	nm	1525~1565
9	Input Power Range	dBm	-8~0
10	Loss of Signal Alarm Threshold	dBm	<-8
11	Bandwidth	MHz	54~1000
12	Flat	dB	±0.75	at the worst condition
13	Impedance	Ω	75
14	RF Output Level	dBmV	24±2	OMI=3.7%, at -4dBm input power
15	RF Return Loss	dB	16	at the worst condition
16	RF Output test Point	dB	-20±0.75
17	CNR	dBc	>48	-4dBm input power
18	CTB	dBc	>70	-4dBm input power
19	CSO	dBc	>65	-4dBm input power
Return Path Parameter
20	Bandwidth	MHz	10~42	at the worst condition
21	Flatness	dB	±0.75
22	Impedance	Ω	75
23	RF Return loss	dB	-16	at the worst condition
24	RF Input Level	dBmV	20
25	RF Input Test Point	dB	-20±0.75
26	Laser		FP
27	Output Power	dBmW	>0	standard
28	Wavelength	nm	1310±50	all wavelength optioned
29	Laser Operation		bust mode
30	RF Input Test Point	dB	-20±0.75
31	RF Input Dynamic Range	dBmV	15~40
32	CNR	dBc	>-45	at the worst condition
33	CTB(FP)	dBc	>-45	at the worst condition
34	CSO(FP)	dBc	>-45	at the worst condition
Power and Environment
35	Operation Temperature	°c	- 40~+60
36	Operation Humidity		5%~95%	non-condensing
37	Power Input Voltage	VDC	+12 ~ +24	+12VDC nominal
38	Power Consumption	W	4
39	Surge Protection	KV	6
