Classic Type TON6800E FTTH Mini Optical Node

Classic Type TON6800E FTTH Mini Optical Node photo-1
US$ 25 - 40 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Lootom
Model Number:
TON6800E
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name Lootom
Model Number TON6800E

Specifications

1000MHz, mini optical node
FTTH application
FP,DFB and CWDM Available
GaAs FET technic
Power adapter matched in free

Features

  • Work wavelength: 1200~1600nm
  • 862MHz passband, Bi-directional transmission, return optical transmitter: 1310nm FP,DFB and CWDM available
  • Broad range optical input power (-8dBm~+2dBm)
  • pHEMT GaAs FET technology.
  • Local or remote power supply
  • Die-casting aluminum housing, excellent heat dissipation performance

Diagram

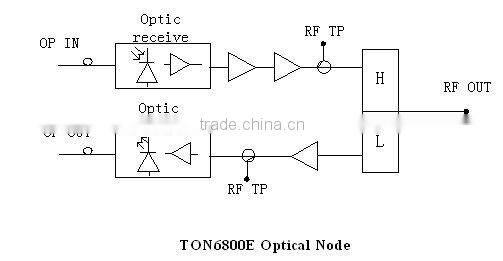

Classic type TON6800E FTTH Mini Optical Node

Forward Path

Item

Unit

Description

Remark

Optical

Input Optical Power Range

dBm

-8 ~ +2



Optical Test Point

V/mW

+1V/mW



Equivalent Input Noise Current



<4pA /√H



Work Wavelength

nm

1200~1600



Optical Connector



SC/APC

others on request

RF

Bandwidth

MHz

54/70/85 ~ 1000



Flatness

dB

±0.75



Impedance

Ω

75



RF Output Level

dBmV

24±2

@ -6dBmW, OMI=3.7%/ch

RF Return Loss

dB

≥18



RF Test Point

dB

-20±0.75



RF Output Stability

dB

±0.5



CNR

dBc

>46

@ –6dBmW

CTB

dBc

>70

@ –6dBmW

CSO

dBc

>65

@ –6dBmW

General

Work Temperature

°C

- 40~+60



Power Supply Voltage

V DC

+12 ~ +24



Power Consumption

W

4



Surge Protection

KV

6



Reverse Path

Item

Unit

Description



Optical

RF Test Point (@Return Optical Transmitter)

dB

-20±0.75



Laser Type



FP , DFB or CWDM



Optical Output Power

dBmW

≥0



Optical Power Test Point

V/mW

+1V/mW



Optical Wavelength

nm

1310



CNR

dBc

>-45



CTB(FP)

dBc

>-45



CSO(FP)

dBc

>-45



RF

Passband

MHz

5 to 42/55/65



Flatness

dB

±0.75



Impedance

Ω

75



RF Return Loss

dB

-16



RF Input Level

dBmV

20
