TRT1000 1310nm Reverse Optical Transmitter

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	Lootom
Model Number	TRT1000

TRT1000 1310nm reverse optical transmitter
Famous brand DFB laser
3U height
5-200MHz bandwidth
Excellent NPR dynamic range

Features

5~75/200MHz operating bandwidth, FP,DFB laser optional
FP or DFB optional, excellent APC control
RFoG technology optional
Excellent NPR dynamic range
Network management function, compliance with national standard and SCTE HMS
Hot-plug design to improve the reliability, easy to install and maintain
Designed for high-density installation, good thermal design, low power consumption, high reliability

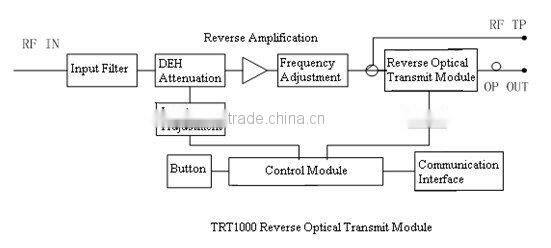

Diagram

Specifications

Conventional reverse optical transmit module

NO.	Item	Unit	Description
NO.	Item	Unit	FP	DFB
1	Output Optical Wavelength	nm	1310 or 1550
2	Output Optical Power	dBm	0		1~4
3	Optical Connector Type		SC/APC or FC/APC
4	Laser Type		FP	DFB
5	Frequency Range	MHz	5~200
6	Flatness	dB	±0.75
7	Nominal Input Level(@3.2MHz bandwidth)	dBμV	80
8	Input Level Adjustment Range	dBμV	0~-10
9	Impedance	Ω	75
10	Return Loss	dB	>16
11	Input Level Test Port	dB	-20±1(compare with nominal input level)
12	NPR Dynamic Range	dB	≥20(NPR≥30)	≥25(NPR≥30)
13	Power Consumption	w	6
14	Temperature	°c	0~50	0~50
15	Dismension	mm	39×130×340

Burst reverse optical transmit module

NO.	Item	Unit	Description
NO.	Item	Unit	FP	DFB
1	Output Optical Wavelength Range	nm	1310/1550/1590/1610
2	Operating Mode	dBm	Burst mode
3	Optical Connector Type		SC/APC or FC/APC
4	Laser Type		FP	DFB
5	Frequency Range	MHz	5~200
6	Flatness	dB	±0.75
7	Recommended Input Level	dBμV	80
8	Input Level Adjustment Range	dBμV	0~-10
9	Impedance	Ω	75
10	Return Loss	dB	>16
11	Input Level Test Port	dB	-20±1(compare with nominal input level )
12	NPR Dynamic Range	dB	≥20(NPR≥30)	≥25(NPR≥30)
13	Power Consumption	w	6
