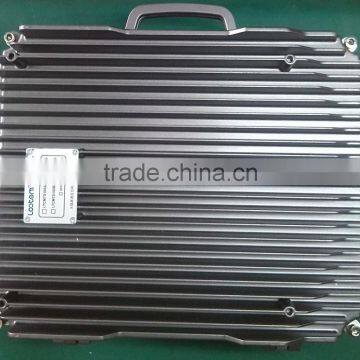

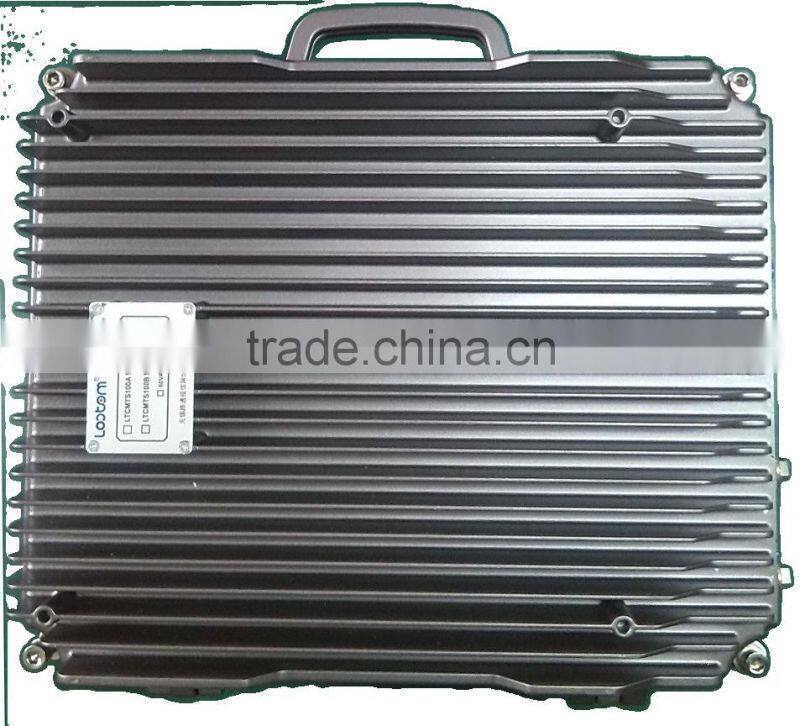

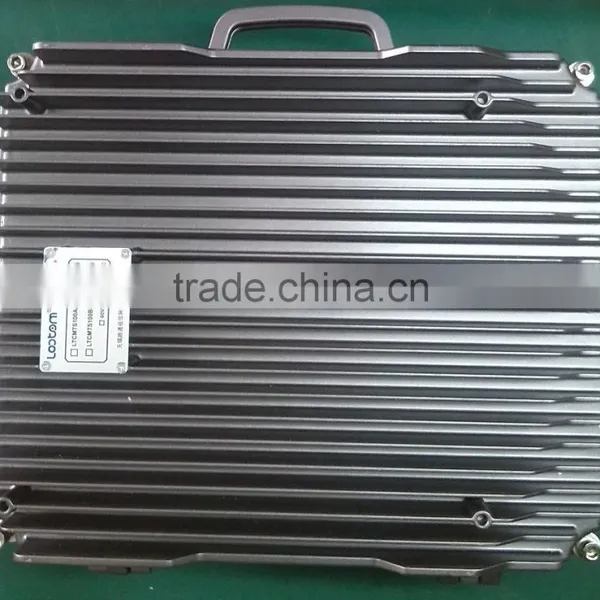

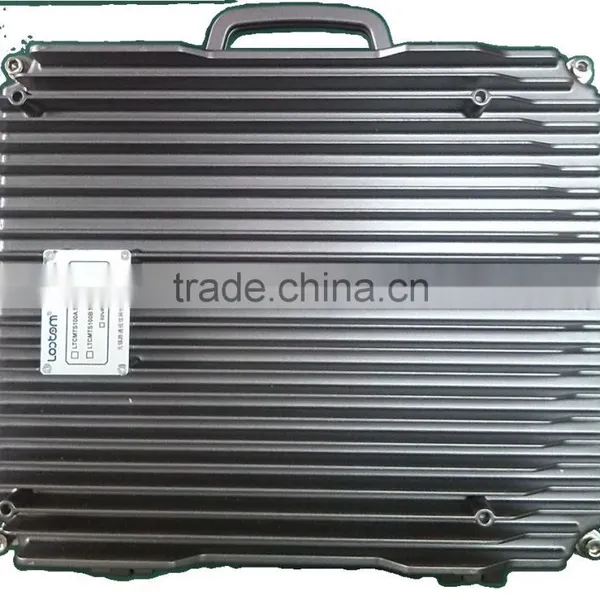

CMC LTCMTS100c Outdoor Docsis 3.0 / C-DOCSIS CMTS With ONU module
Overview
Lootom’s LTCMTS100C Series Outdoor CMTS can be widely used in CATV Network, Digital Network and Telecommunication Network. It has in-built CMTS modules, optical receiver modules, ONU modules (optional) and SFP fiber optical transceiver module (optional), being able to prompt the modulation & demodulation of QAM signal and the photo voltaic conversion of broadcasting TV signal and IP data. There are two options for the uplink port: one is for it to have optical interface linked directly to the TV signal fiber, alternatively it can be gigabit Ethernet interface providing direct access to IP signal; the downlink port is RF interface (one port, two ports or four ports) directly linked into Coaxial Cable Distribution Net, which can well meet the transmission requirement of such Video Business as IPTV and VOD at highly favorable price. Thus, it is an attractive alternative to large, complex, and significantly costly CMTS solutions as the installment cost is low.
Features
- 1~4 output port for mixed signal of CATV and data
- Downstream operating frequency up to 1000MHz
- Output level up to 108dBuV
- Independently adjustable insert design attenuation and equalizer
- Perfect surge suppress protection circuit that facilitates greater anti-lightning strike and anti-surge capacity, further enhancing the overall reliability.
- Comply with DOCSIS3.0 and C-DOCSIS technical standard, American Standard and European Standard compatible.
- Connectivity with DOCSIS1.0/1.1/2.0/3.0 cable modems and interactive digital set-top box
- IP data received and sent through GEP or SFP before MDM
- CMTS module closer to user end, greatly reducing the influx noise
- 3-layer routing system which supports static routing,VLAN,L2VPN and DhcpRelay
- Built-in DHCP/TFTP Server
- Support IPV6() and multicast function
- Traffic based QoS mechanism that can fulfill the bandwidth demand of all services
- Network transmission security guaranteed by BPI+, CM certificate, anti DoS attack, user isolation, source IP address check.
- Supporting up to 500 cable modems
- 16 downstream channel bonding; 64,256,1024QAM modulation available; the data speed can be increased to a maximum of 1.1Gbps @1024QAM
- 4 upstream channel bonding; QPSK and QAM modulation available; the data speed can reach as high as 160Mbps
- Flexible channel bonding ensures efficient planning and utilization of channel resources
- Upstream frequency analysis feature enables instant monitoring of upstream channel signal and noise
- 3 network management modes: CLI after log in using Telnet; CLI after remote login through web; OAM based network management software
- Remote control, configuration parameter, failure warning, reset and user management.
Diagram
Technical Parameters
Model |
LTCMTS100C(With ONU Integrated) |
Picture |
|
Standard |
DOCSIS/Euro-DOCSIS 2.0/3.0 C-DOCSIS |
Operating Frequency |
Uplink:5-85MHz,Downlink:91MHz-1000MHz |
Bandwidth(max) |
Downstream:1100Mbps( Single Channel, 8MHz, 64/256/1024QAM ) Upstream:160Mbps( Single Channel, 6.4MHz, QPSK/16/32/64/256QAM ) |
Work Channel |
Downstream:16(max);Upstream:4(max) |
Modulation Mode |
ATDMA/TDMA/SCDMA |
CM Amount |
> 400 |
Case |
Case:Outdoor,Aluminium Protection:IP65 Thunder Proof:6KV,20KA |
Network Port |
GE/10GEPON/GPON |
User Port |
RF Port:1-4 |
Module |
Built-in ONU Module,CATV Optical Receiver Module |
Management |
Telnet,SNMP V1/V2/V3,WEB,CLI. |
Power Consumption |
<65W |
Power |
60V AC/220V AC |
Dimension |
321×215×139(L*W*H) |
Operation Circumstance |
Operating Temperature:-40℃~+65℃ Storage Temperature:-30℃~+70℃ |
