Cable Modem DOCSIS 2.0 GDCM200-1FE High Speed DICSIS Devices

Cable Modem DOCSIS 2.0 GDCM200-1FE High Speed DICSIS Devices thumbnail-1
Cable Modem DOCSIS 2.0 GDCM200-1FE High Speed DICSIS Devices thumbnail-2
Cable Modem DOCSIS 2.0 GDCM200-1FE High Speed DICSIS Devices photo-1

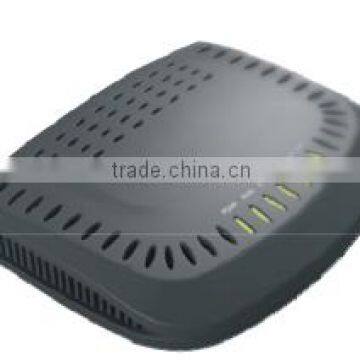

Cable Modem DOCSIS 2.0 GDCM200-1FE High Speed DICSIS Devices photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Lootom
Model Number:
GDCM200-1FE
Contact Supplier Request Quote Chat Now
Lootom Telcovideo Network (Wuxi) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Lootom
Model Number GDCM200-1FE

Cable Modem DOCSIS 2.0 GDCM200-1FE High Speed DICSIS Devices

 Cable Modem DOCSIS 2.0 GDCM200-1FE High Speed DICSIS DevicesCable Modem DOCSIS 2.0 GDCM200-1FE High Speed DICSIS Devices



Overview



The CMM1.3VU1-1 EuroDOCSIS®2.0 Cable Modem provides DOCSIS® broadband service providers with a cost-effective solution for delivering high-speed bi-directional data services. Basing on BCM3309 chipset solution, the CMM1.3VU1-1 provides a fast connection to the internet as downstream data rates in excess of 55.62Mbps and upstream data rates up to 30.72Mbps.


It is designed to meet EuroDOCSIS®2.0 specifications as well as offering backward
compatibility for operation in EuroDOCSIS®1.1 and 1.0 network.



Block Diagram







Parameter    Specification



Parameter Specification

System Specifications

Chipset RAM

Flash

Ethernet

BCM3309KFBG + BRCM 3409 16MB   SDRAM

2MB SPI Flash

10/100 M

Feature and Technical Specifications







External Connectors


  • 1 x DC power jack
  • 1 x RJ45 for 10/100 Base-T Ethernet LAN
  • 1 x RF interface (75Ù F-type) to bi-directional Hybrid Fiber
  •  Coaxial (HFC) network for CATV.
  • 1 x Reset button for factory default settings









LED Indicators


  • POWER
  • Down
  • Up
  • Internet
  • Lan











DOCSIS Future

ITEM Downstream(Receiver) Upstream (Transmitter)

Center 112 MHz ~ 858MHz 5MHz ~ 65 MHz

Frequency Range

Channel Bandwidth 8 MHz 200 K, 400 K, 800K, 1.6M, 3.2MHz, 6.4 MHz

Capture Bandwidth Full band capture Full band capture

Modulation 64QAM/256QAM A-TDMA:

QPSK, 8, 16, 32, 64 QAM S-CMDA:

QPSK, 8, 16, 32, 64, 128QAM

Symbol Rate 6.952 Msymbols/sec 160, 320, 640, 1280, 2560,

5120 K symbols/sec



Parameter Specification















































































































Management

Bits per Symbol 64QAM: 6 bits QPSK: 2 bits

256 QAM: 8 bits 8QAM: 3 bits

16QAM: 4 bits

32QAM: 5 bits

64QAM: 6 bits

128 QAM: 7 bits

Data Rate 41.71 Mbits/ sec(64QAM 0.32 ~ 10.24 Mbits ( QPSK)

) 0.64~ 20.48 Mbits( 16 QAM)

55.62 Mbits/ sec(256 QA 0.96~ 30.72 Mbits( 64 QAM) M)

Output Power +8dBmV~+ 58dBmV(QPSK)

(A-TDMA mode) +8dBmV ~ +55dBmV(8 QAM)

+8dBmV ~ +55dBmV(16QAM)

+8dBmV ~ +54dBmV(32QAM)

+8dBmV ~ +54dBmV(64QAM)

Output Power +8dBmV ~ +53dBmV( QPSK)

(S- CDMA mode) +8dBmV ~ +53dBmV(8 QAM)

+8dBmV ~ +53dBmV(16QAM)

+8dBmV ~ +53dBmV(32QAM)

+8dBmV ~ +53dBmV(64QAM)

+8dBmV ~+53dBmV(128 QAM)

Output Power +8dBmV ~ +58dBmV( QPSK)

+8dBmV ~ +55dBmV(16QAM)

Input Power +13dBmV ~

-17d BmV(64 QAM)

+17dBmV ~ -

13dBmV( 256 QAM)

RF Interface 75ohm F-type female connector

Ethernet Interface Standard RJ45 connector

Carrier To Noise 64QAM:

Ratio 25.5d B@BER< 10 -8

256 QAM:

31.5d B@BER< 10 -8



Power Dissipation < 10 Watts





  • Web based Configuration



Parameter Specification













Security
  • CMTS configure /FTP/TFTP Firmware upgrade
  • SNMP management (MIB)
  • TelnetSSH management
  • Management Access Control for LAN/WAN sides
  • Prevent port scanning, Denial of Service (DOS) ,
  •  LAND attack
  • IP/ MAC filtering, Application filtering, URL filter
  • Baseline Privacy Plus Interface(BPI)
  • security mechanism

Environment Requirements

Operating

0ºC - 40ºC (32℉ - 104℉)

Temperature



Storage Temperature

-40ºC - 70ºC (-40℉ - 158℉)

Operating Humidity

10% - 95%, non-condensing

Storage Humidity

5% - 95%, non-condensing

Power adapter input

100V - 240V AC, 50/60Hz

Power adapter output

DC 12V/1A

Power dissipation

7W

EMC and Safety

Regulatory Compliance Safety Regulations

Green Standard

CE



CB RoHS

Physical Characteristics

Physical Dimension

L*W*H=140*120.5*38.5mm
