CMCLTCMTS100H 19" Chassis Indoor Docsis 3.0 / C-DOCSIS CMC With Layer 3 Routing Function 16 QAM Channels

Name: CMCLTCMTS100H 19" Chassis Indoor Docsis 3.0 / C-DOCSIS CMC With Layer 3 Routing Function 16 QAM Channels
Brand: LOOTOM
SKU: 112120459
Availability: InStock

CMCLTCMTS100H 19" Chassis Indoor Docsis 3.0 / C-DOCSIS CMC With Layer 3 Routing Function 16 QAM Channels thumbnail-1

CMCLTCMTS100H 19" Chassis Indoor Docsis 3.0 / C-DOCSIS CMC With Layer 3 Routing Function 16 QAM Channels thumbnail-2

CMCLTCMTS100H 19" Chassis Indoor Docsis 3.0 / C-DOCSIS CMC With Layer 3 Routing Function 16 QAM Channels thumbnail-3

CMCLTCMTS100H 19" Chassis Indoor Docsis 3.0 / C-DOCSIS CMC With Layer 3 Routing Function 16 QAM Channels thumbnail-4

CMCLTCMTS100H 19" Chassis Indoor Docsis 3.0 / C-DOCSIS CMC With Layer 3 Routing Function 16 QAM Channels thumbnail-5

CMCLTCMTS100H 19" Chassis Indoor Docsis 3.0 / C-DOCSIS CMC With Layer 3 Routing Function 16 QAM Channels photo-1

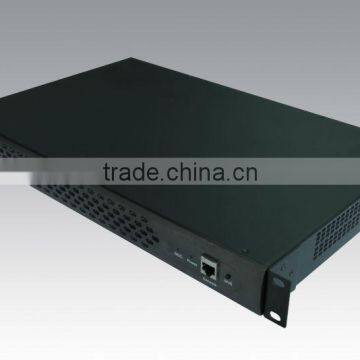

CMCLTCMTS100H 19" Chassis Indoor Docsis 3.0 / C-DOCSIS CMC With Layer 3 Routing Function 16 QAM Channels photo-2

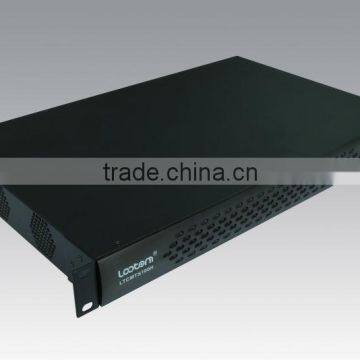

CMCLTCMTS100H 19" Chassis Indoor Docsis 3.0 / C-DOCSIS CMC With Layer 3 Routing Function 16 QAM Channels photo-3

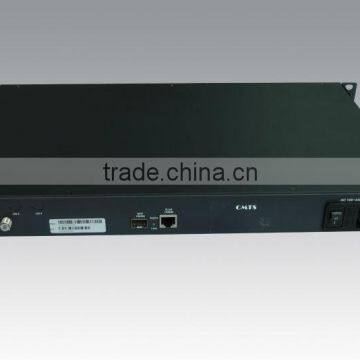

CMCLTCMTS100H 19" Chassis Indoor Docsis 3.0 / C-DOCSIS CMC With Layer 3 Routing Function 16 QAM Channels photo-4

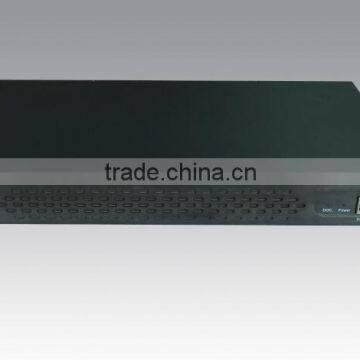

CMCLTCMTS100H 19" Chassis Indoor Docsis 3.0 / C-DOCSIS CMC With Layer 3 Routing Function 16 QAM Channels photo-5

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

LOOTOM

Model Number:

LTCMTS100H

Contact Supplier Request Quote Chat Now

Lootom Telcovideo Network (Wuxi) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name LOOTOM

Model Number LTCMTS100H

CMC LTCMTS100H 19" chassis 1 U Indoor Docsis 3.0 / C-DOCSIS CMC With layer 3 routing function 16 QAM channels

1.1 Overview

All LTCMTS100H CMC series from Lootom are developed based on DOCSIS3.0 and C-DOCSIS protocols. There are kinds of product types such as rack mount, outdoor and D-node.

LTCMTS100H series adopt channel binding technology, for downstream (DS), there are 16 QAM channels which has 1.1Gbps data rate;

for upstream, there are 4 QPSK/QAM channels which could reach up to 160Mbps. LTCMTS100H’s downstream can be configured to data

channels or IP QAM channel, for data port, there are 1000Mbps power port (RJ45) and 1000Mbps optical port (SFP). With layer 3 routing

function and perfect QoS, they can meet all kinds of working conditions and requirements from different operators.

Due to LTCMTS100H’s high bandwidth, perfect QoS, it is very suitable for IPTV or VOD, such kind of video service. It is cost effective for cut

down cost then, add value for traditional HFC network.

There are three ways to manage LTCMTS100H: use CLI after log in via serial port Telnet, use CLI to realize remote log in via web and use network management software based on OAM.

LTCMTS100H series can compatible with DOCSIS3.0/2.0/1.1/1.0 cable modem.

LTCMTS100H is one of a chassis CMC with 19 inch 1U standard chassis, it is tailor made for front end room deployment. It is suitable for

small broadband user’s scaled network. It has wide coverage and high efficiency. Completely isolated upstream channels can reduce the funnel

mixture noise, 8dB. With the large screen panel display, users can check all parameters, real time running status and upstream spectrum analysis

directly.

1.2 Features

n Compatible with DOCSIS3.0, C-DOCSIS standard, work with all cable modem based on DOCSIS, support both EURO DOCSIS and DOCSIS.

n 16 DS channels bound, 64/256/1024QAM modulation mode optional. Data rate could reach up to 1.1Gbps@1024QAM.

n 4 US channels bound, could be configured to QPSK, 3-8 grade QAM mode, data rate could reach up to 160Mbps.

n Flexible on channels bound quantity set for operator’s convenient planning and use of channel resource.

n Layer 3 routing functions, support static route, VLAN,NAT and DHCP relay agent.

n There are 1000M RJ45 port and SFP on data port, convenient and flexible.

n Built-in DHCP/TFTP server, support PPPoE.

n Load balancing.

n Support IPV6, multicast function.

n QoS based on service flow ensures bandwidth needs for various services.

n Ensure network transmit safety via various kinds of methods such as BPI+, CM identification, anti-DOS attack , user isolation and IP source checking.

n Real time upstream spectrum analysis function which helps to check US channel signal and noise status rapidly.

n 4 upstream channels could be choiced physical independent, reduce 8dB overlay return noise from the combination .

n Support three management ways: use CLI after log in via serial port Telnet, use CLI to realize remote log in via web and network

management

software based on SNMP.

1.3 Specification

		Downstream		Upstream
		Euro- DOCSIS	DOCSIS
Modulation Mode		64QAM/256QAM/1024QAM		256QAM/64QAM/32QAM/16QAM/8QAM/QPSK
Frequency Range(MHz)		112~1002 adjustable	91~857 adjustable	5~65(85 Optional)
Single channel bandwidth (MHz)		8	6	Single channel bandwidth (MHz)			6.4	3.2	1.6
Binding channel quantity		16		4
Max.total data bandwidth (Mbps)		1100	857	160
Single channel data rate(Mbps)	64QAM	41	27	Single channel data rate (Mbps)	256QAM		40.96	20.48	10.24
					128QAM		35.84	17.92	8.96
	256QAM	55	38		64QAM		30.72	15.36	7.68
					32QAM		25.60	12.80	6.40
Output level (dBmV)		45~58 adjustable 1 stepping			16QAM		20.48	10.24	5.12
					8QAM		15.36	7.68	3.84
					QPSK		10.24	5.12	2.56
				Receiving level (dBmV)			-1~+29	-4~+26	-7~+23
Single channel baud rate (Msymps)	64QAM	6.952	5.056941	Single channel baud rate (Msymps)			5.12	2.56	1.28
	256QAM	6.952	5.360537
RF port number		1		1
Reflection loss(dB)		> 14		> 14
Output impedance(Ω)		75		Input impedance (Ω)			75
Supported protocols		Euro-DOCSIS/DOCSIS2.0/1.1/1.0,TCP/IP,ARP,RIPv2,ICMP,VLAN,multicast,OSPF, DHCP,TFTP,SNMP,PPPoE,DHCP relay agent,Telnet Etc.
Physical parameters
Network Port		1000M SFP fiber (SC/APC)		Input voltage		AC100~240V,DC-48V customizable
		1000M RJ45 port		Consumed power		< 50W
RF port		F type plug		Net weight		2.50Kg
Controlling port		2 COM		Working conditions		Temperature 0~40℃;humidity <90%
Status display		HD LCD display		Dimension		W430mm H44mm D285mm
