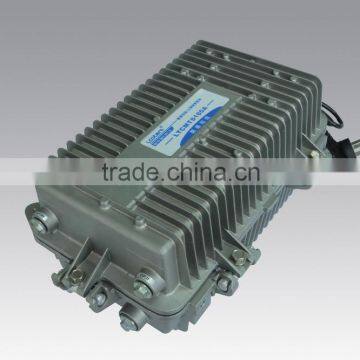

CMC CMTS LTCMTS100A Outdoor Docsis 3.0 / C-DOCSIS CMTS With ONU Module photo-2

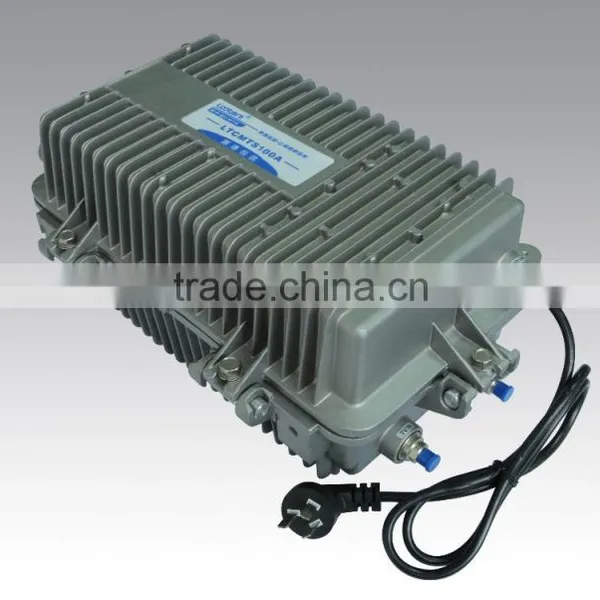

CMC CMTS LTCMTS100A Outdoor Docsis 3.0 / C-DOCSIS CMTS With ONU Module photo-3

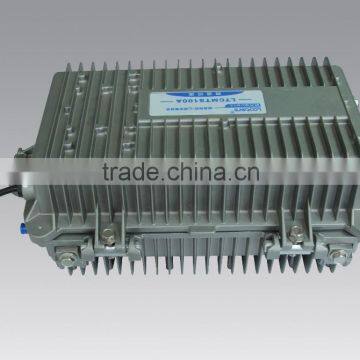

CMC CMTS LTCMTS100A Outdoor Docsis 3.0 / C-DOCSIS CMTS With ONU Module photo-4

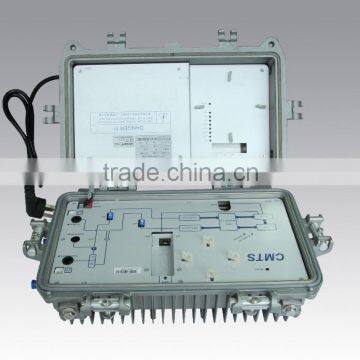

CMC CMTS LTCMTS100A Outdoor Docsis 3.0 / C-DOCSIS CMTS With ONU Module photo-5

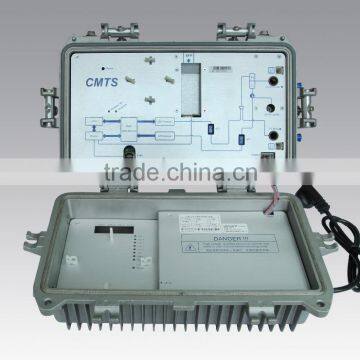

CMC CMTS LTCMTS100A Outdoor Docsis 3.0 / C-DOCSIS CMTS With ONU Module photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
LOOTOM
Model Number:
LTCMTS100A
Contact Supplier Request Quote Chat Now
Lootom Telcovideo Network (Wuxi) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name LOOTOM
Model Number LTCMTS100A

CMC CMTS LTCMTS100A Outdoor Docsis 3.0 / C-DOCSIS CMTS With ONU  module



CMC CMTS LTCMTS100A Outdoor Docsis 3.0 / C-DOCSIS CMTS With ONU module

 Overview

Lootom’s LTCMTS100B Series Outdoor CMTS can be widely used in CATV Network, Digital Network and Telecommunication Network. It has in-built CMTS modules, ONU modules (optional) and SFP fiber optical transceiver module (optional), being able to prompt the modulation & demodulation of QAM signal and the photovoltaic conversion of IP data. Uplink port is optic port connect to IP fiber, or it is available Gigabit Ethernet port connect to IP data signal; Downlink port is upstream/downstream mix port or independent 2 RF ports, connect to the closed equipment or optical receiver, linked into the coaxial cable distribution network, which can well meet the transmission requirement of such Video Business as IPTV and VOD at highly favorable price. Thus, it is an attractive alternative to large, complex, and significantly costly CMTS solutions as the instalment cost is low.





Feature

It has inbuilt high-efficiency switching power supply module, which can transform AC60V or AC220V input into +12V DC to power the whole facility. Also it has effective lightening surge design in place:

 Lightning strike protection design for each RF port

  • Tube fuse for AC 60V input end;Protection circuit against lightning induction for SMPS module
  • D.C TVS protection; Support CMTS upstream and downstream signal mix output and independent output
  • Perfect surge suppress protection circuit that facilitates greater anti-lightning strike and anti-surge capacity, further enhancing the overall reliability
  • Comply with DOCSIS3.0 and C-DOCSIS technical standard, European Standard/ American Standard Compatible
  • Connectivity with DOCSIS1.0/1.1/2.0/3.0 cable modems and interactive digital set-top box
  • IP data transceivers throgh GEP or SFP, and QAM modulation and remodulation
  • Output level up to 106 dBuV;Independently adjustable insert design attenuation and equalizer
  • Connectivity with DOCSIS1.0/1.1/2.0/3.0 cable modems and interactive digital set-top box
  • Network transmission security guaranteed by BPI+, CM certificate, anti DoS attack, user isolation, source IP address check.
  • Supporting up to 500 cable modems on line at the same
  • 16 downstream channel bonding; 64,256,1024QAM modulation available; the data speed can be increased to a maximum of 1.1Gbps @1024QAM;Remote control, configuration parameter, failure warning, reset and user management.

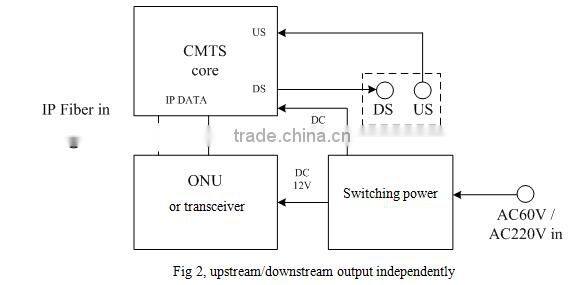

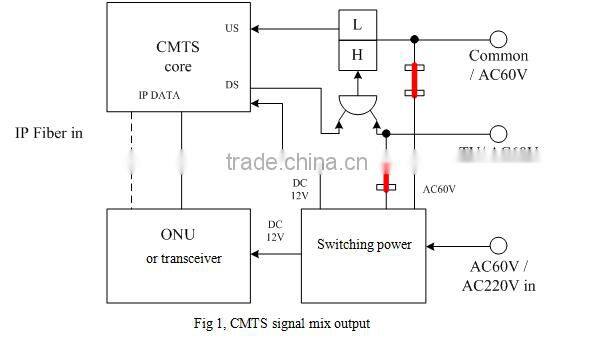

Block Diagram

CMC CMTS LTCMTS100A Outdoor Docsis 3.0 / C-DOCSIS CMTS With ONU moduleCMC CMTS LTCMTS100A Outdoor Docsis 3.0 / C-DOCSIS CMTS With ONU module


Specification





CMTS Module

No

Item

Unit

Parameter

1

Downstream

Standard



Europe

USA

2

Modulation



64QAM,256QAM,1024QAM

3

Frequency Range

MHz

112~1000,adjustable

91~1000,adjustable

4

Single Channel Bandwidth

MHz

8

6

5

Bonding Channel Number



16

6

Max total data Bandwidth

Mbps

1100

857

7

Single Channel data speed

64QAM

Mbps

41

27

8

256QAM

Mbps

55

38

9

Output Level

dBmV

45~58 adjustable,1dB stepping

10

Single Channel Character Rate

64QAM

Msymps

6.952

5.056941

11

256QAM

Msymps

6.952

5.360537

12

Upstream

Modulation



256QAM,64QAM,32QAM,16QAM,8QAM,QPSK

13

Frequency Range

MHz

5~85

14

Single Channel Bandwidth

MHz

6.4

3.2

1.6

15

Bonding Channel Number



4

16

Max Total Data Bandwidth

Mbps

160

17

Single Channel Data Rate

256QAM

Mbps

40.96

20.48

10.24

18

128QAM

Mbps

35.84

17.92

8.96

19

64QAM

Mbps

30.72

15.36

7.68

20

32QAM

Mbps

25.60

12.80

6.40

21

16QAM

Mbps

20.48

10.24

5.12

22

8QAM

Mbps

15.36

7.68

3.84

23

QPSK

Mbps

10.24

5.12

2.56

24

Receiving Level

dBmV

-1~+29

-4~+26

-7~+23

25

Single Channel Character Rate

Msymps

5.12

2.56

1.28

26

Standard



Euro-DOCSIS/DOCSIS3.0/2.0/1.1,telnet C-DOCSIS,TCP/IP,ARP,ICMP,VLAN,Multicast,DHCP,TFTP,SNMP,PPPoE,DHCP Relay Regent,

Telnet, etc.

ONU Module

27

RX Optical Wavelength

nm

1490

28

TX Optical Wavelength

nm

1310

29

Transmitting Power

dBm

-1~+4

30

Receiving Power

dBm

-26.5~-3

31

Optic Connector



SC/PC

32

Transmission Rate



Symmetric Transmission Rate of 1Gbps

33

Data Interface



4 way 10/100 Base-T, 10/100M Adaptive

34

Support Protocol



IEEE 802.3ah,YD/T 1475-2006,IEEE 802.1D,Spanning Tree,IEEE 802.1Q,VLAN,IEEE 802.1w,RSTP/Ethernet–II,Ethernet-SNAP,IEEE 802.3x,Anti-Head Of Line Mechanism,IEEE p802.1p,CoS,WR,SP and FIFO queue scheduling algorithm ,

UDLD,Dying-Gasp,CHAP,EAP,CLI,Web,SNMP, TELNET,TFTP,FTP

RF Parameter
