Help Center22inch Outdoor 5 Wire Resistive Touch Screen for Medical Equipment / Gaming Machine /ATM /VTM
Related Products
-
18.5inch LCD Touch Screen Monitor,Resistive Touch Screen for Monitor, POS, KIOSKUS$ 1 - 60MOQ: 1 Piece -
LCD Monitor Touch Screen,18.5" 5 Wire Resistive Touch Screen With USB/Seriel RS232US$ 1 - 60MOQ: 1 Piece
-
18.5 Inch 5 Wire Resistive POS Touch Screen With Pen Or Finger InputUS$ 1 - 60MOQ: 1 Piece
-
10.4 Inch 10.4" 4 Wire Resistive Touch Screen for Industrial Control Systems,interactive Teaching ,GPSUS$ 6 - 25MOQ: 1 Piece
-
Green Touch 15inch 4wire Resistive Touch Screen PanelUS$ 1 - 99MOQ: 10 Pieces
For Easy Talk,My Skype ID is greentouch88
1. 5wire resistive touch screen panel specification :
| Model number | Ratio | Outline(mm) | Viewing Area(mm) | Active Area(mm) | Thickness(mm) |
| GT-5W-22.0K-A | 16:10 | 488x310 | 475x298 | 471x293.80 | 2.3 |
| Interface Type: | USB or RS232 |
| Resolution | 4096x4096 |
| Screen Ratio | 16:10 |
| Material | Glass + Film |
| Certificates | CE, FCC, RoHS |
| Input method | Finger or touch pen |
| Position accuracy | 2~5mm |
| Operating Voltage | DC ≤ 10V |
| Operating current | 5~25mA |
| Response time | Less than 10ms |
| Touch action force | 20~100g |
| Operating temperature | -10°C~60°C |
| Storage temperature | -20°C~70°C |
| Surface hardness | 3H |
| Working environment | Under sunlight, indoor and outdoor |
| Transparency | ≥80% |
| Isolation resistance | ≥20MΩ DC 25V |
| X.Y resistance | 30Ω~350Ω according to the size |
| Linearity | ≤2% |
| The number of hits | ≥35,000,000/point |
| Warranty | 1 year |
| Support Systems | Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac |

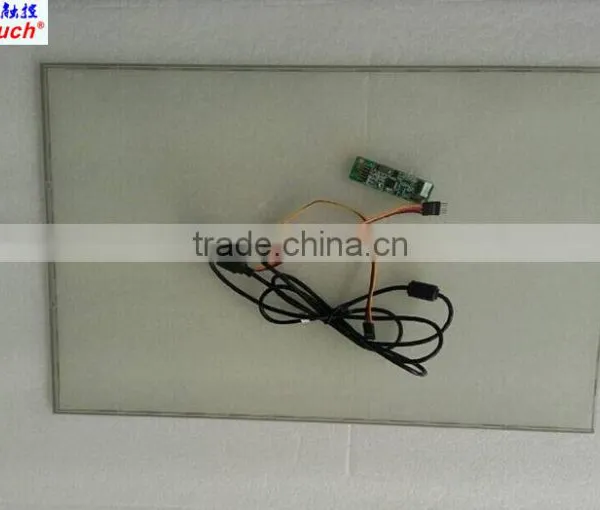

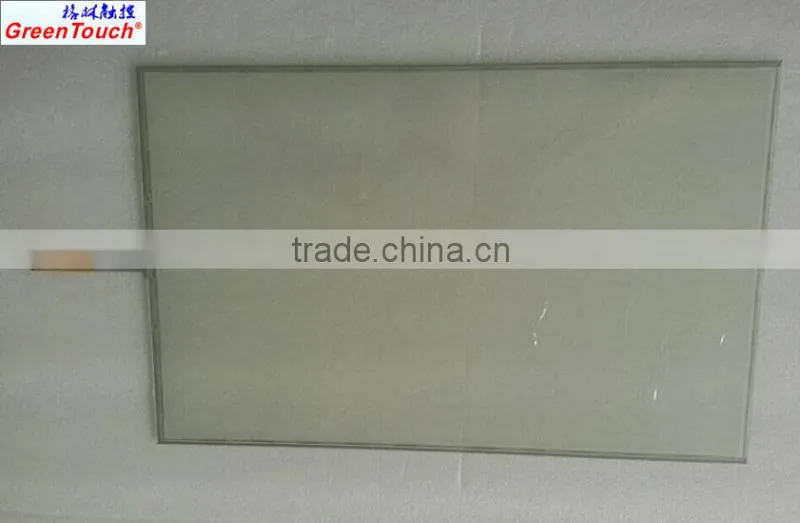

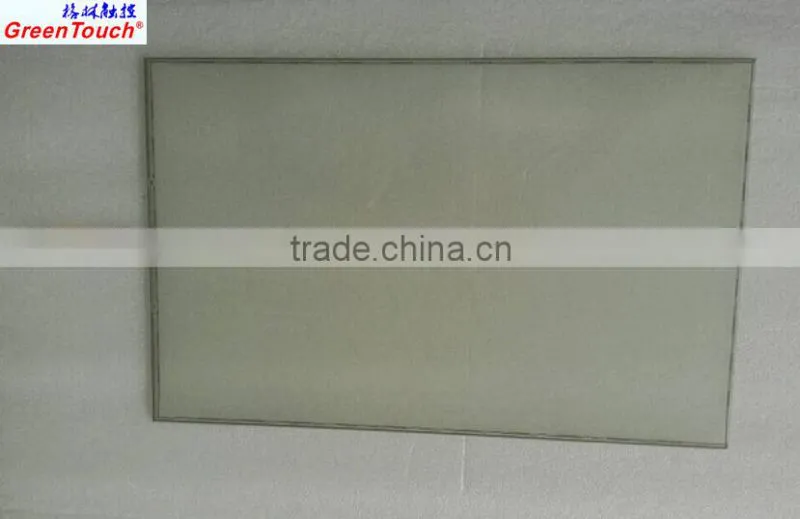

2. 5Wire Rsistive Touch Screen Panel Pictures :
More Sizes of 5 wire resistive touch screen,Click Here
3. 5wire resistive touch screen panel Appliacation :

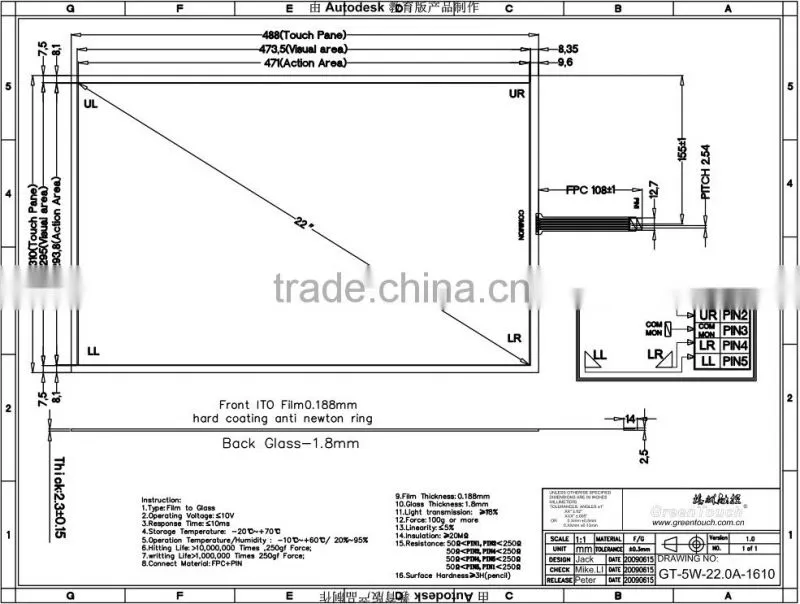

5. 5wire resistive touch screen panel over view :
Structure : PET--------------Glare hard coating & Anti-Newton Ring
Glass------------Chemically strengthened ITO glass 0.7mm/1.1mm/1.8mm
Dot Pitch--------5.0mm×5.0mm
Connector: FPC(5-Pin)
6. 5wire resistive touch screen advantages:
Finger, gloved hand and stylus activation
High accuracy and sensitivity
High durability and reliability
Contaminant proof and liquid resistance
Low cost
7. 5Wire Resistive Touch Screen Panel Certification :
8.Shipping&Payment
And also accept by Sea ,Air .or sending with your own forwarder
9.Why Choose us ?
1.Professional manufacturer in R&D, manufacturing, marketing and service of TOUCH SCREEN for 8 years.
2.High quality certificate (CE,ROHS,FCC) Our products have aging test at least for a continuous 48-72hours before being deliveried.
3. Product warranty for 1-4 years.
4. Sufficient stock for your urgent demand. 5.Within 12 hours reply guarantee.
Hope to set up friendly business relationship with all of you.Your comments on our products and any information from your market will be highly appreciated.
(If I'm off line, would you send a massage to me or email please ? i will reply within 12hours .)
