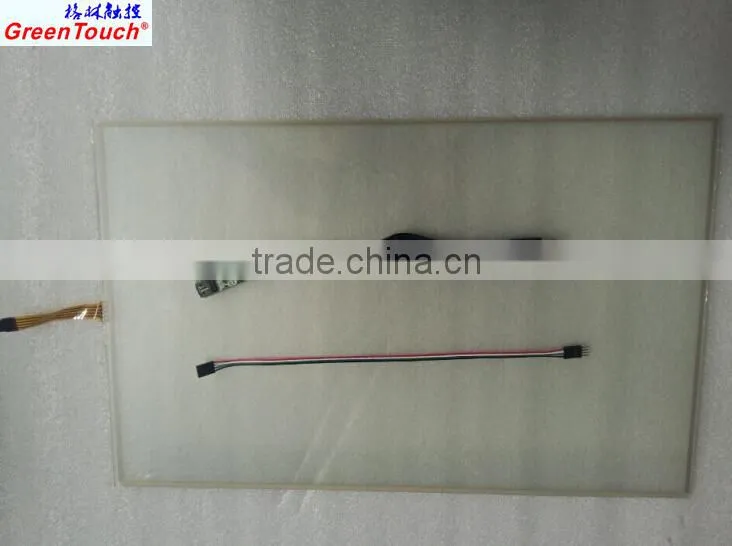

Help CenterGreen Touch 15inch 4wire Resistive Touch Screen Panel
Related Products
-
Green Touch 4 Wire Resistive Touch Screen Panel 15.4"US$ 1 - 99MOQ: 1 Piece -
Green Touch 22" 4 Wire Resistive Touch Screen PanelUS$ 1 - 99MOQ: 1 Piece
-
17inch Resistive Touch Panel,4 Wire Touch Screen With USB ControllerUS$ 1 - 99MOQ: 10 Sets
-
GreenTouch 22" Touch Screen 5 Wire Resistive Touch Screen PanelUS$ 1 - 99MOQ: 1 Piece
-
GreenTouch Touch Screen Panel 4 Wire 12.1" With USB LineUS$ 1 - 99MOQ: 1 Piece
4 wire resistive touch screen
Specifications :
4 Wire Resistive Touch Screen/Touch Screen/Resistive Touch Screen
1.1 Environmental characteristics:
NO. |
Item |
Specification |
1 |
Operation temperature |
-10°C~+60°C |
2 |
Storage temperature |
-20°C~+70°C |
1.2 Electrical characteristics :
NO. |
Item |
Specification |
Remarks |
1 |
Rated Voltage |
DC 5V 1mA |
|
2 |
Linearity |
1.5% |
Load 120gf |
3 |
Resistance |
Film side: 200Ω~1250Ω |
FPC At connector |
Glass side:100Ω~500Ω | |||
4 |
Insulation Resistance |
20 MΩ |
DC 25V |
Reliability test :
NO. |
Item |
Specification |
Remark |
1 |
High temperature storage |
50°C, 40hr |
|
2 |
Low temperature storage |
-30°C, 40hr |
|
3 |
High temperature high Humidity storage |
70°C,70%RH,120hr |
|
4 |
Temperature Cycling |
-20±2°C — 70±2°C (0.5hr each),10cycles |
|
5 |
Input life |
More than 5,000,000 times (Tip R0.8mm) |
|
6 |
lineation test |
More than 100,000 times (Tip R0.8mm) |
|

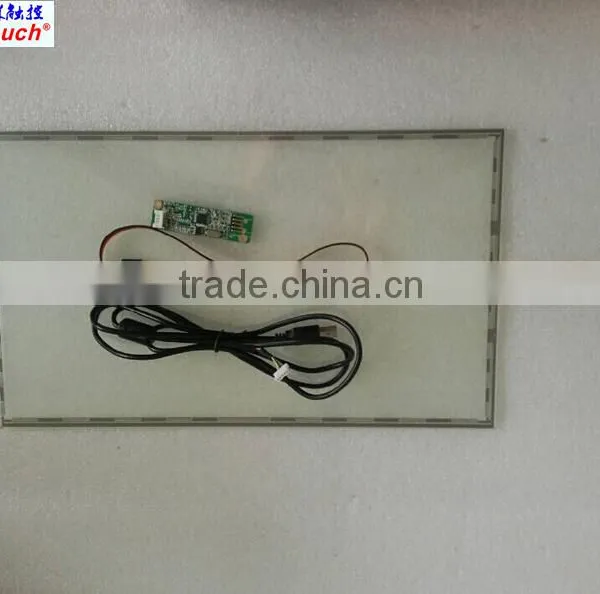

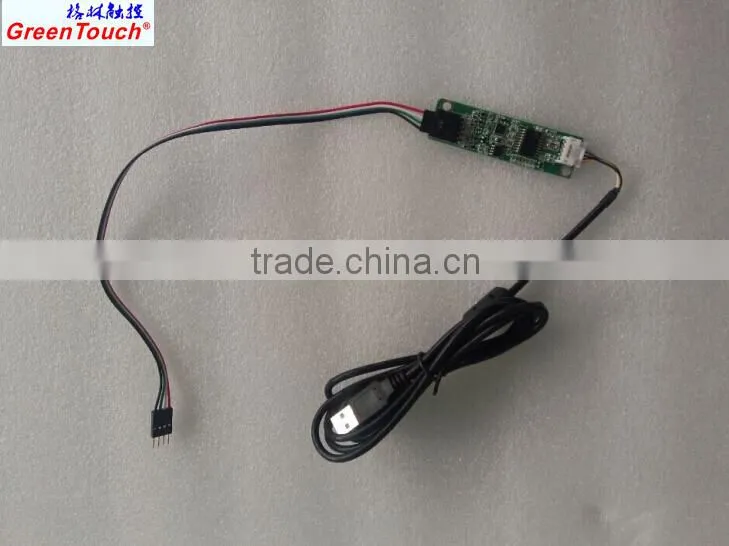

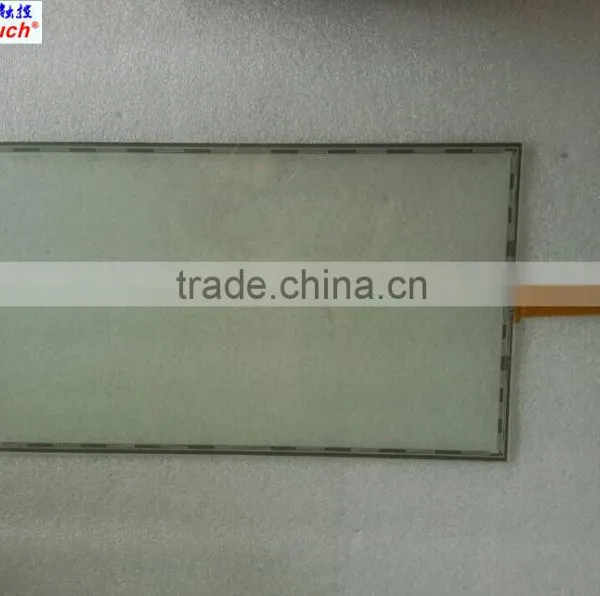

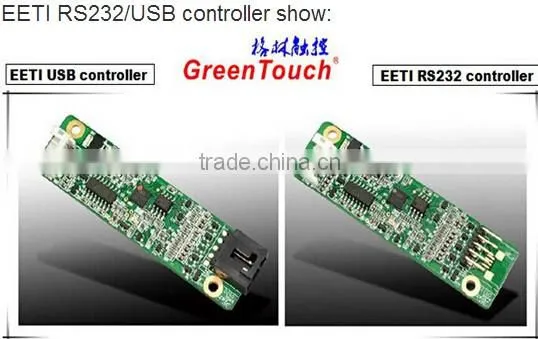

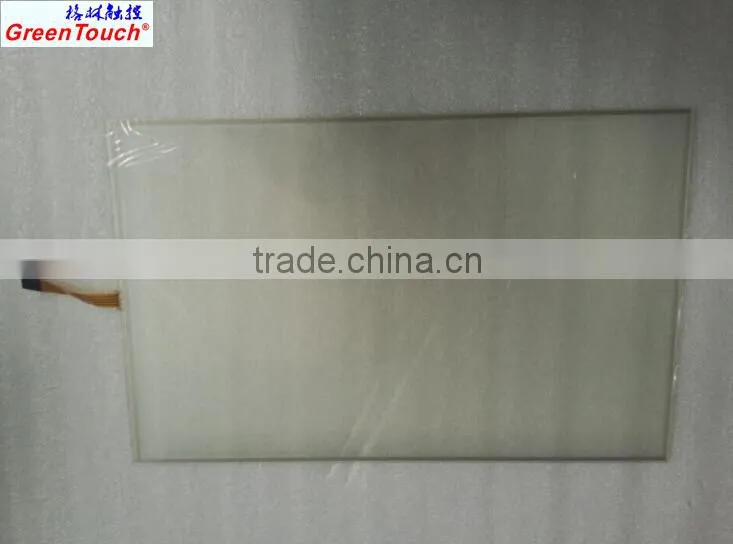

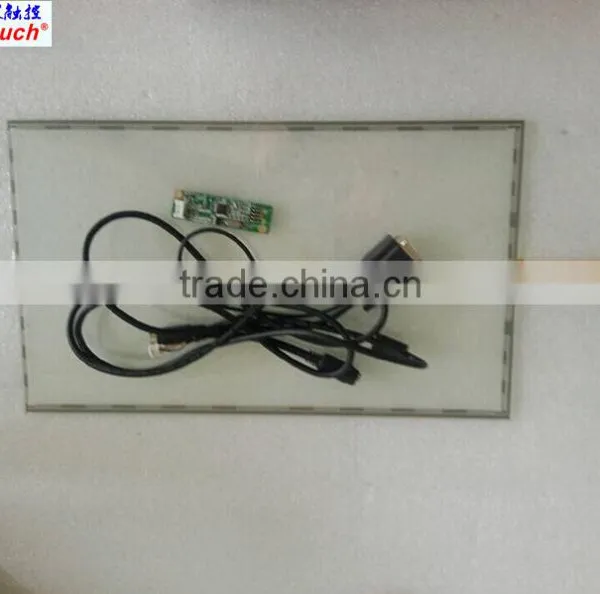

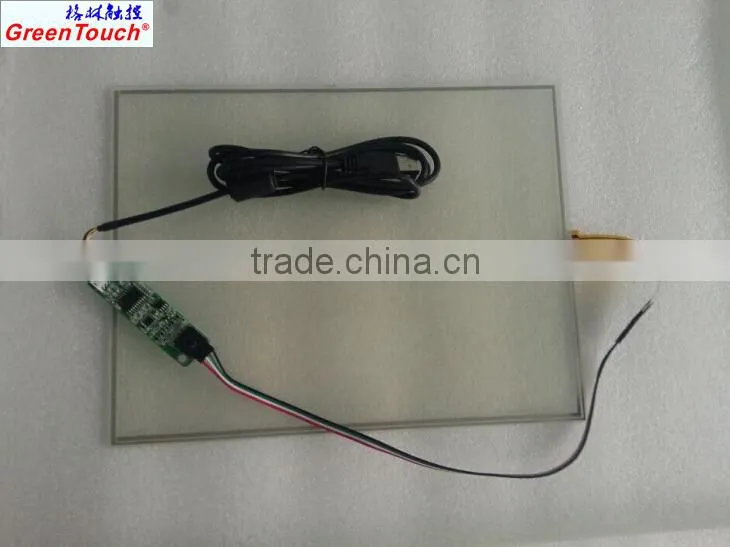

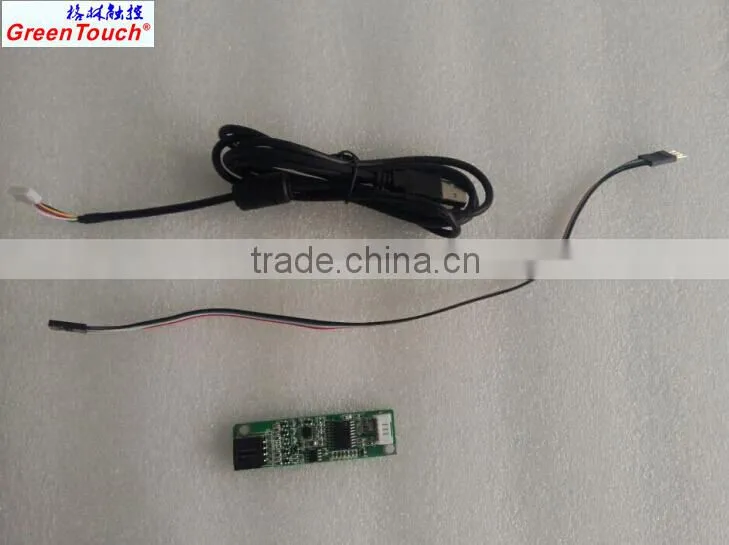

Picture show :
Shipping & payment:
Our company show:
