Help CenterResistive Touch Panel (TP) for 5 Wire 24 Inch With USB Connection
Related Products
-
18.5inch 4w Resistive Touch Panle Screen 16:9 With EETI ControlleUS$ 24.40 - 25.40MOQ: 1 Set -
Green Touch 18.5inch 5wire Resistive Touch Screen Open Frame LCD MonitorUS$ 28.20 - 28.20MOQ: 10 Sets
-
19" 5 Wires Touch Screen Panel 4:3US$ 27.80 - 27.80MOQ: 1 Unit
-
22inch 5w Resistive Touch Panel Screen16:10 With EETI ControllerUS$ 36.50 - 36.50MOQ: 1 Unit
-
17inch 5w Resistive Touch Panel Screen 4:3 With EETI ControllerUS$ 26.70 - 26.70MOQ: 1 Unit
GT-5Wire resistive touch screen/panel
5 Wire Resistive Touch Screen (Panel):
1.Single-point resistance touch screen
2.High accuracy and sensitivity
3.Contaminant proof and liquid resistance
4.With our own manufacture factory,reasonable price
5.Life span: > 3,500,000 touches
1.Feature:
- Panel size:10'' to 22", the other size could be customed.
- Power: USB
- Response time: 10ms
- Life span: > 1,000,000 touches
- Linearity: ≤ 1.5%
- Transmittance: ≥ 82%
- Resistance: 200 ~ 950 0Hms
- Surface durability:≥ 3H
2.Specification:
Size |
10'' to 22’’ |
Construction |
Glass, uniform resistive coating, polyester coversheet, transparent insulating dots, conductive coating |
Operating Force |
10g~100g |
Chattering |
≤12ms |
Surface Hardnes9 |
Moths 3 |
Life Time |
More than 1 million touches in one location without failure |
Transparency |
≥80% |
Working Voltage |
5.0V |
Circuit grade |
DC5V 1mA |
Insulation impedance |
≥20MΩ(25V DC) |
Linearity |
≤1.5% |
Operating Temperature |
-30°C to 80°C |
Storage Temperature |
-40°C to 90°C |
Operating Humidity |
20%RH ~ 90%RH |
Storage Humidity |
10%RH ~ 90%RH |
Warranty |
1years |
|
No noted size common differenc |
±0.20 |
3.Advantage :
1.Low cost solution, Low power consumption
2.To be activated with any device
3.Finger, gloved hand and stylus activation
4.High accuracy and sensitivity
5.High durability and reliability
6.Contaminant proof and liquid resistance
4.Application :
1.Light industrial
2.Home appliances
3.Portable sport devices
4.Access control terminals
5.Portable medical devices
6.Personal computer and office
5.Works With The Operating Systems:
- Windows 2000-XP
- Windows 98
- Windows CE
- Linux
- Dos
- Vista

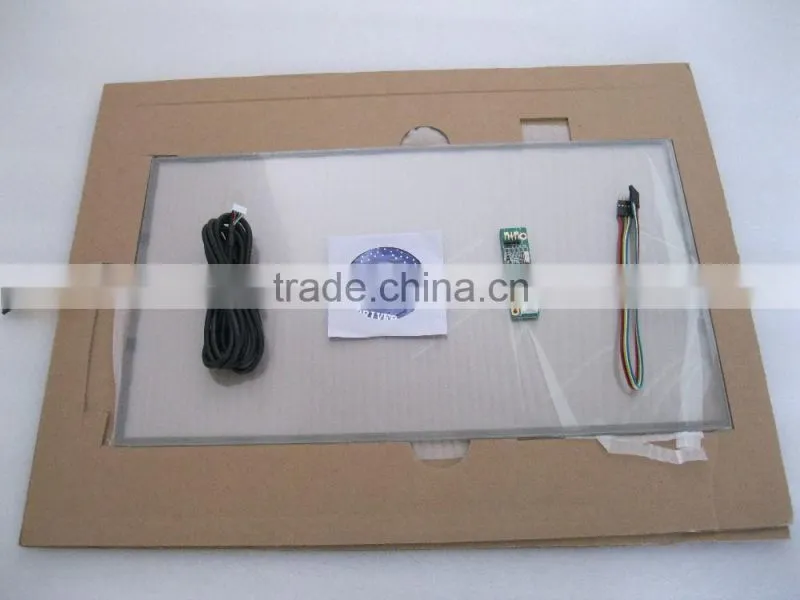

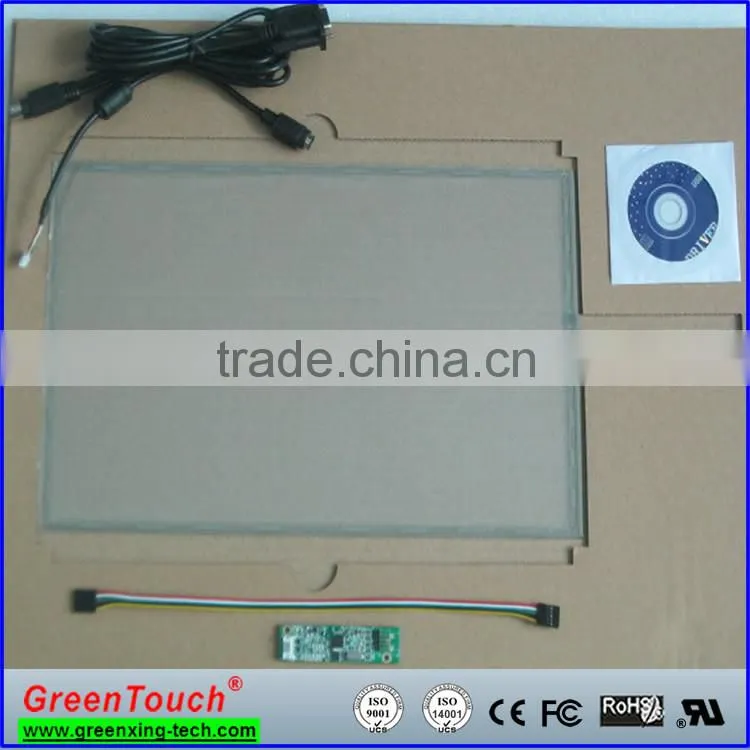

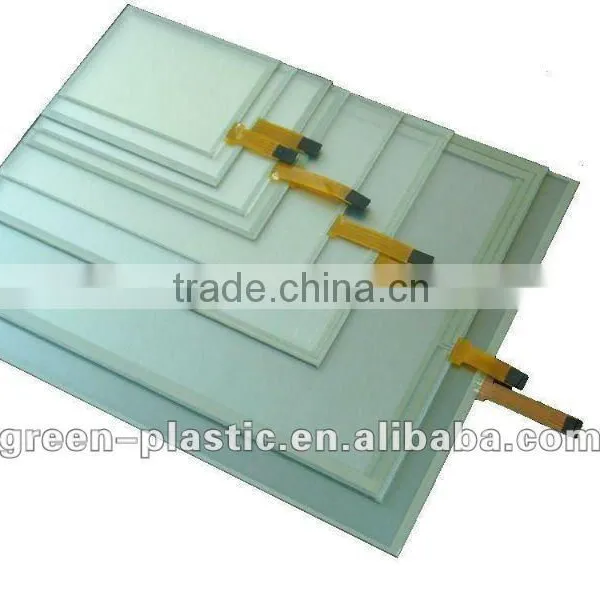

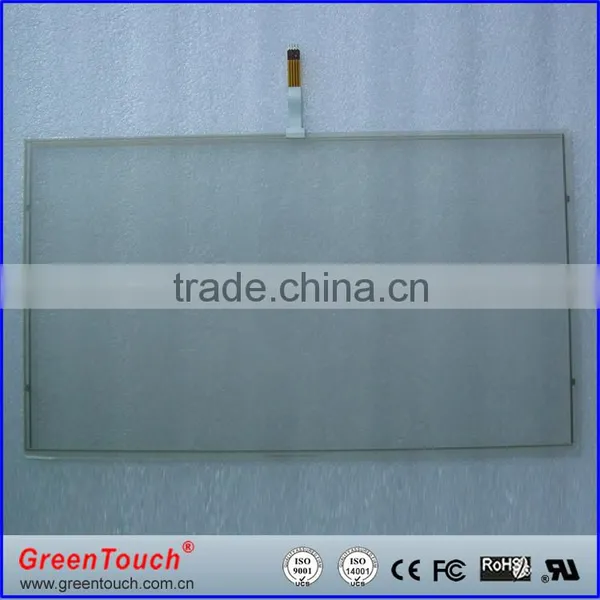

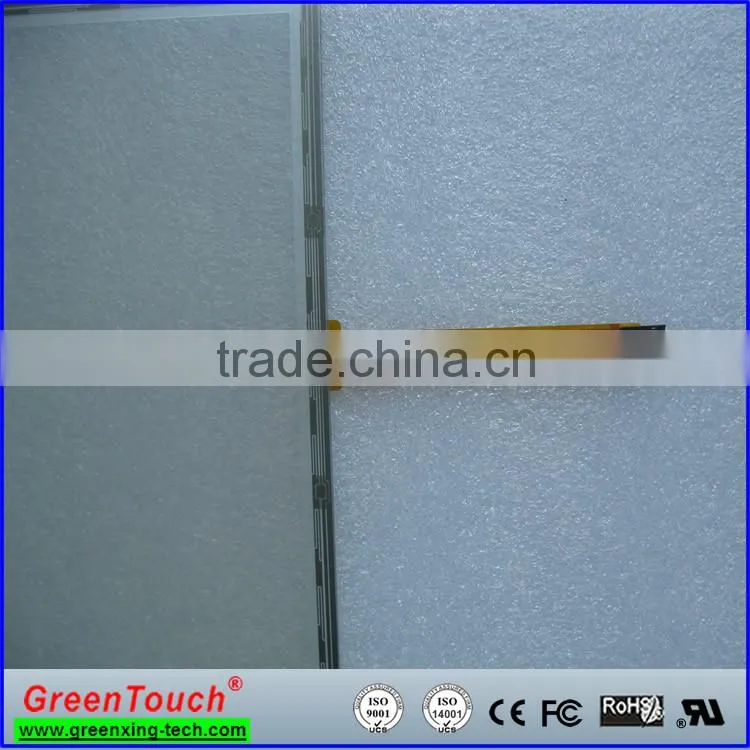

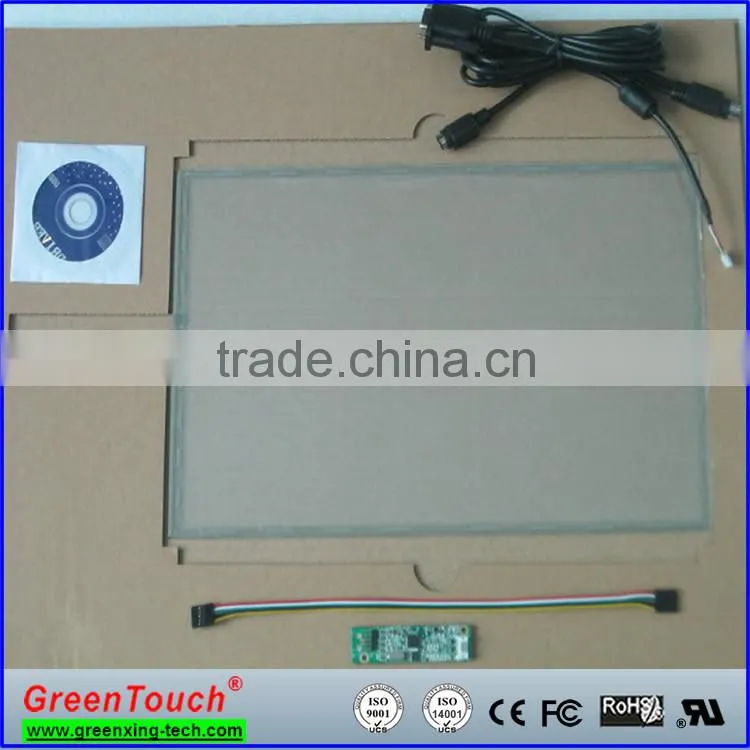

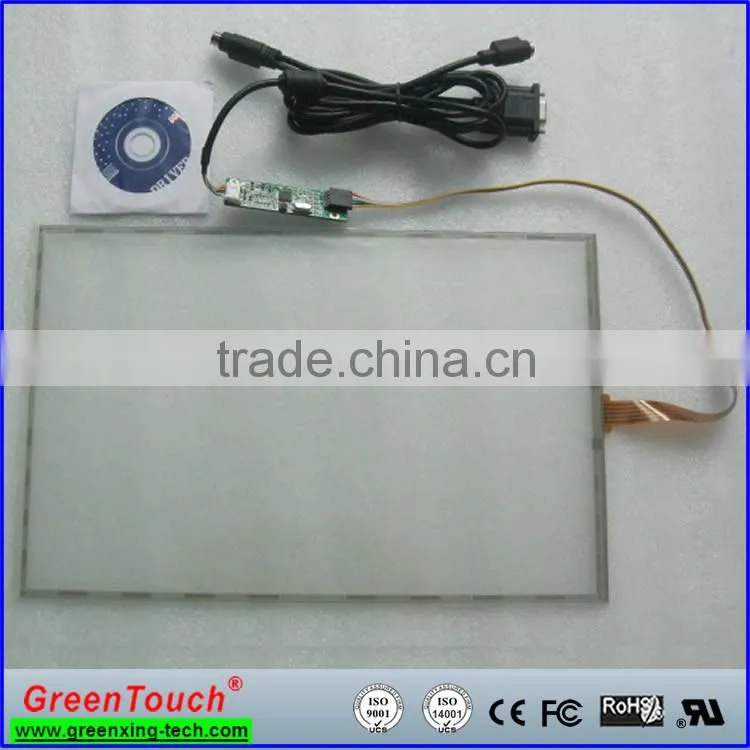

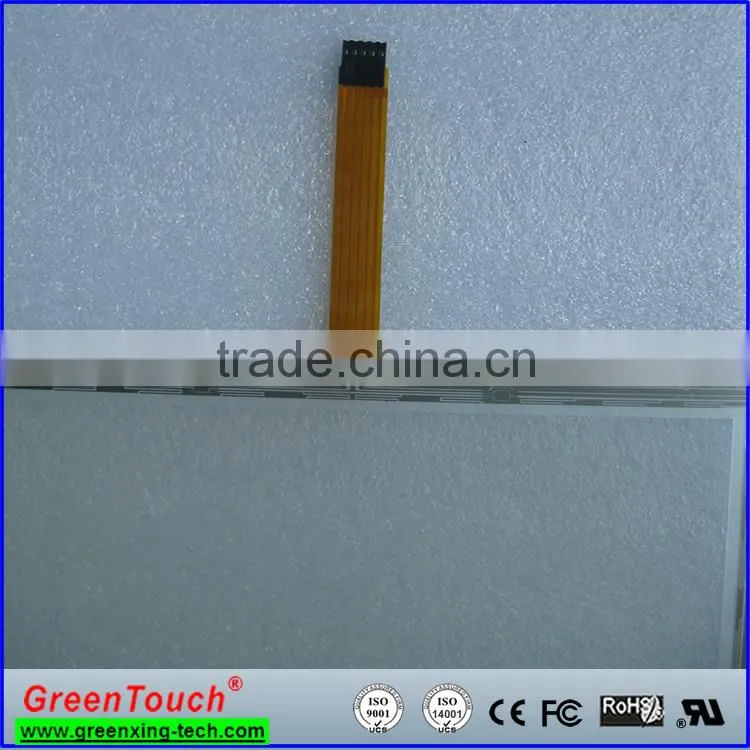

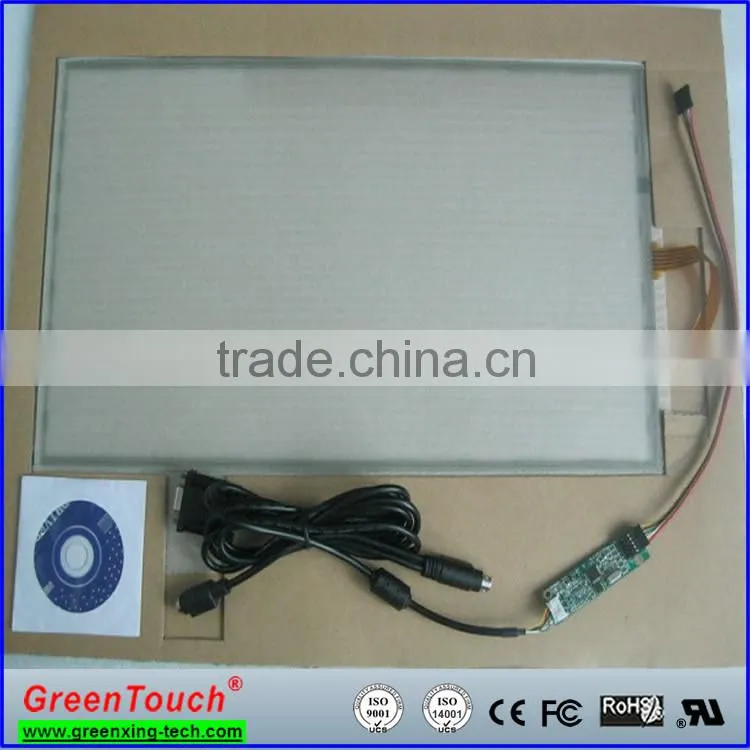

6.Picture Show :

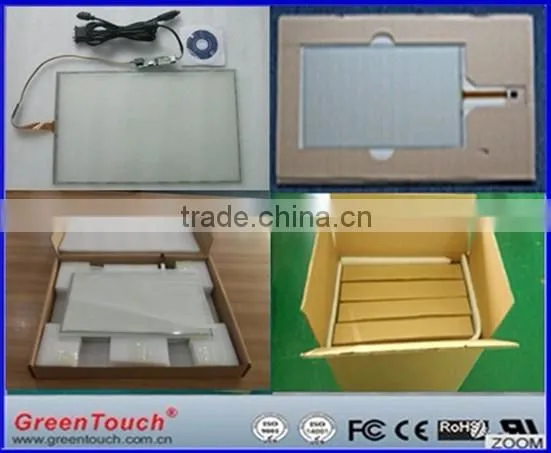

shipping&payment
If you have any question for our products ,please send it to our email , and we are looking forward to you to visit our factory at any working time , please don't hesitate , now or never !!
Special service for special you !!!!
