4Wier Resistive Touch Screen
The 4 Wire Resitive touchscreen consists of a glass layer with a conductive coating on top and a polyester top sheet with a conductive coating on the bottom. The conductive surfaces are held apart by "spacer dots", usually glass beads that are silk-screened onto the coated glass.
When a person presses on the top sheet, its conductive side comes in contact with the conductive side of the glass, effectively closing a circuit (this is called pressure sensing). The voltage at the point of contact is read from a wire connected to the top sheet.It can be touched by finger, gloved finger, leather or stylus pen.It is inherently of many advantages such as high accuracy, quick response, drift-free, stable and long durability for a life time of 1,000,000 times finger touches.
> Can withstand more than 1,000,000 point
> 4096x4096 Resolution
> USB or RS232 Interface
> High accuracy and sensitivity
> ITO Glass + ITO Film Material
> Finger, gloved hand and touch pen activation
> Operable in various light conditions, indoor and outdoor
> Our products have passed CE, FCC, ROHS certification!
1. 4wire resistive touch screen panel specification :
No. |
Item |
specification |
No. |
Item |
specification |
1 |
Available Size |
2.8"~23" |
14 |
Surface Hardness |
3H |
2 |
Detection method |
4 Wire Resistive touch screen panel |
15 |
Operating Temperature |
-10°C ~ 60°C |
3 |
Resolution |
4096*4096 |
16 |
Operating Voltage |
DC5V |
4 |
Aspect ratio |
4:3/16:9 /16:10 |
17 |
Linearity |
<1.5% |
5 |
Input method |
Finger or touch pen |
18 |
Operation Pressure |
15 ~ 70g |
6 |
Position accuracy |
2.5~5mm |
19 |
Message Noise |
5 m sec ~ 15 m sec |
7 |
Isolation Resistance |
20MΩ↑ @ DC 25V |
20 |
Drivers available |
Windows 2000/Windows XP/Win 7 / Win 8/Windows NT/Linux/Mac |
8 |
Optical Clarity |
80 %↑ |
21 |
Faceplate Surface |
Glare hard coating; Anti-Newton ring |
9 |
Endurance Test strikes |
Over 1 million |
22 |
Working environment |
Under sunlight, indoor and outdoor |
10 |
Resistance |
200Ω ~ 900Ω |
23 |
X.Y resistance |
100Ω~1000Ω according to the size |
11 |
Certificates |
CE, FCC, RoHS |
24 |
Humidity |
10%~90% RH at 60°C, non-condensing |
12 |
Storage Temperature |
-20°C ~ 70°C |
25 |
Relative humidity |
10%~90% RH at 40°C, non-condensing |
13 |
Operating Current |
5mA ~ 25mA |
26 |
Response time |
<10ms |

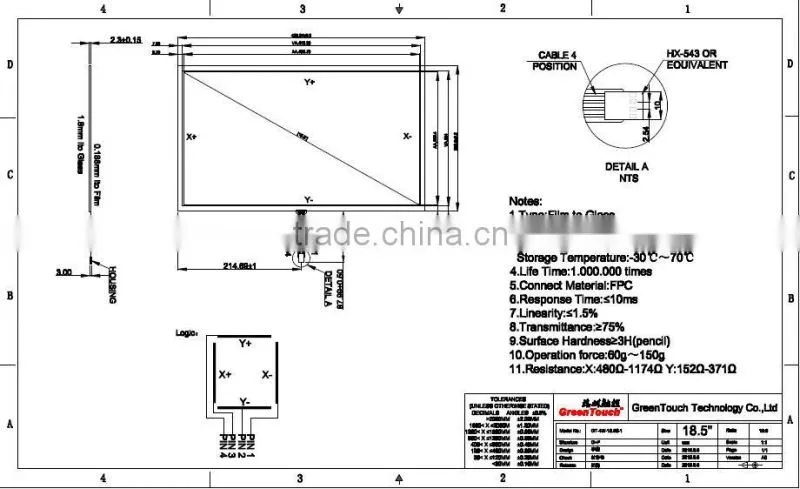

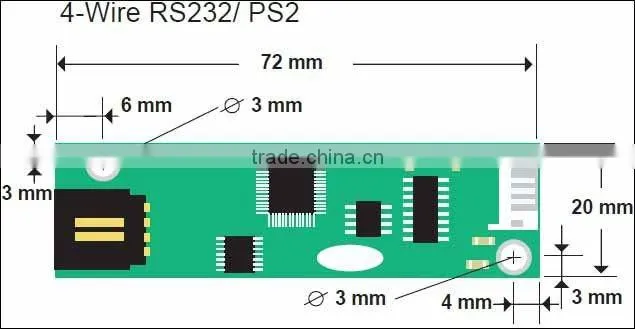

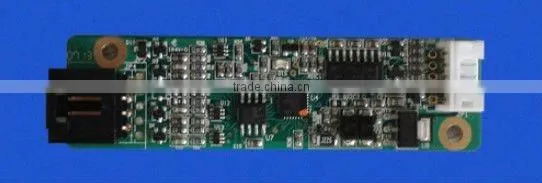

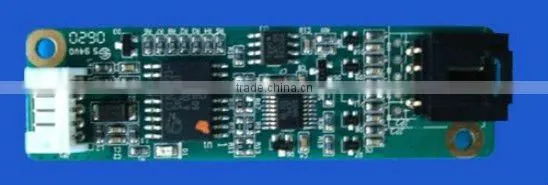

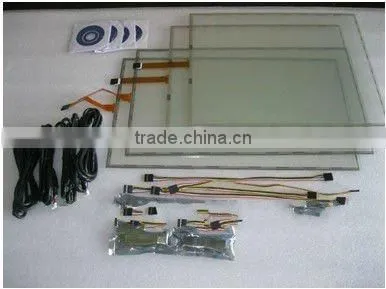

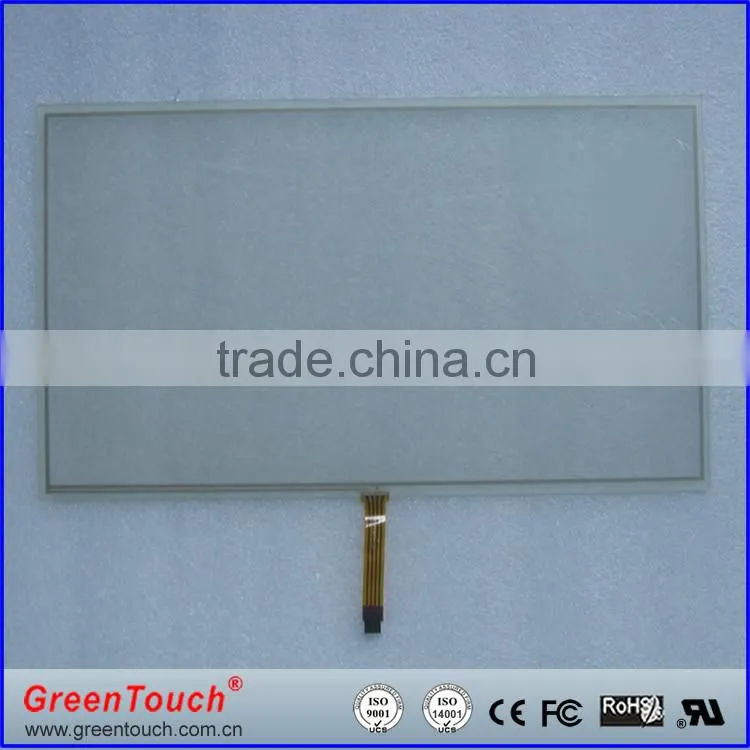

2. 4Wire Rsistive Touch Screen Panel Pictures :
3. 4wire resistive touch screen panel Appliacation :
4.4wire resistive touch screen advantages:
Finger, gloved hand and stylus activation
High accuracy and sensitivity
High durability and reliability
Contaminant proof and liquid resistance
Low cost
5.4Wire Resistive Touch Screen Panel Certification :
6.Shipping&Payment:
7.factory show:
