Product specifications and parameters:
GreenTouch Open Frame Monitor adopt new A + LCD screen produced by international companies, designed withall-plasticergonomic shell, and new energy-saving drive board . Special for desktop anddesktop public service inquiry system,POS systems, hotel reception, self-service, industrial manufacturing, information systems and other interactive touch applicationsenvironmental design .
Open frame touch monitor specifications and parameters:
Model Number |
GT-TMO15001 |
Name |
15"Open Frame touch monitor |
Structure |
Open frame iron box, black color in front ,white sliver on the back |
Display Type |
Full New 15"Active matrix TFT-LCD 4:3 |
Active area |
305×228(mm) |
Resolution |
1024×768@60Hz |
Support color |
16.7M |
Brightness (Typ.) |
Display Panel :250cd/m2(Typ.) |
After Add the touch screen :230cd/m2(Typ.) | |
Response time (Typ.) |
16ms(Typ.) |
Pixel |
0.297*0.297mm |
Viewing Angle(Typ.at CR>10)) |
Horizontal(L/R):75°/75° |
Vertical(Up/Down):65°/65° | |
Contract (Typ.) |
450:1(Typ.) |
Video input |
Mini D-Sub15pin VGA,DVI |
Scan Frequency(L/F) |
Horizontal:30~80KHz ,vertical: 56.3~75Hz |
Power Input |
External connect power adapter,Support AC 100 ~ 240V,50 ~ 60Hz,DC12V-3A |
Environment |
Operate temperature :0 ~ 50°C |
Storage temperature :-20 ~ 60°C | |
Operating humidity:20% ~ 80% | |
Storage humidity:10% ~ 90% | |
Mean Time Between Failure (MTBF) |
30,000 hours |
Backlight working life(Typ.) |
50,000 hours |
Power consumption |
max19W |
OSD Control |
Button :POWER,MENU,AUTO,UP,DOWN |
Installation method |
Install 75*75 mm & 100*100mm VESA hole on the back,aside hole also can be used |
Touch screen Type |
4/5 wire resistive ,SAW,IR Optical touch screen can be selected |
Touch life |
Over 5,00 million times |
Surface hardness of the touch screen |
Equal with glass,7mosh |
Touch object |
Finger or touch pen |
Touch screen interface |
USB or RS232 interface |
Touch screen response time |
10ms |
Touch force |
30g |
Display size |
mm |
Package size |
mm |
Weight(N.t/W.t) |
Kg/Kg |
Certification |
FCC,CE,CCC,RoHS |
Warranty |
Display panel 3yesrs,touch screen 3year |
Note: LCD display parameter will be changed according to the LCD brand and model | |

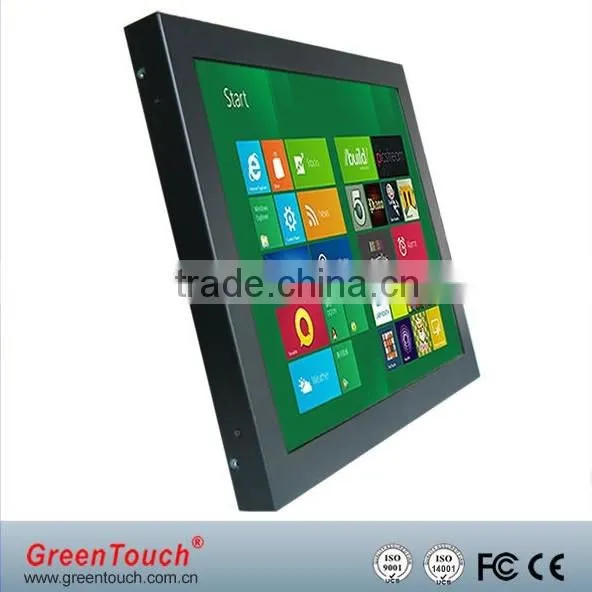

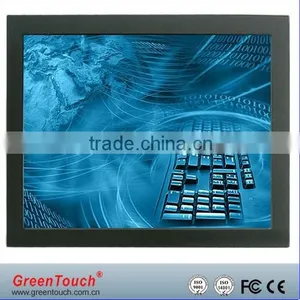

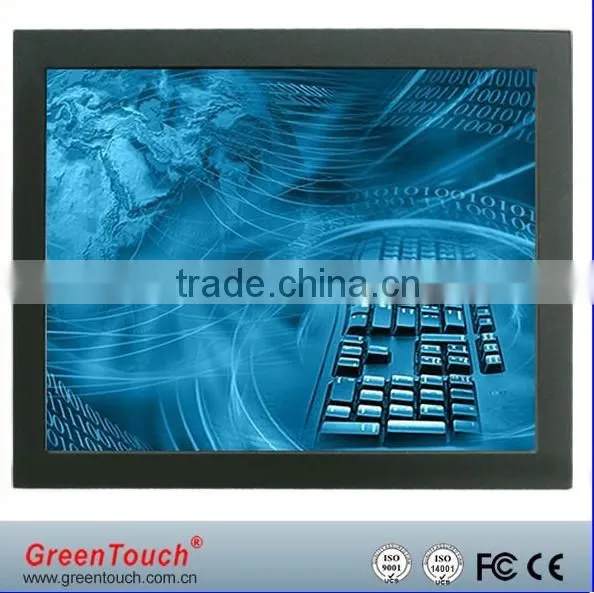

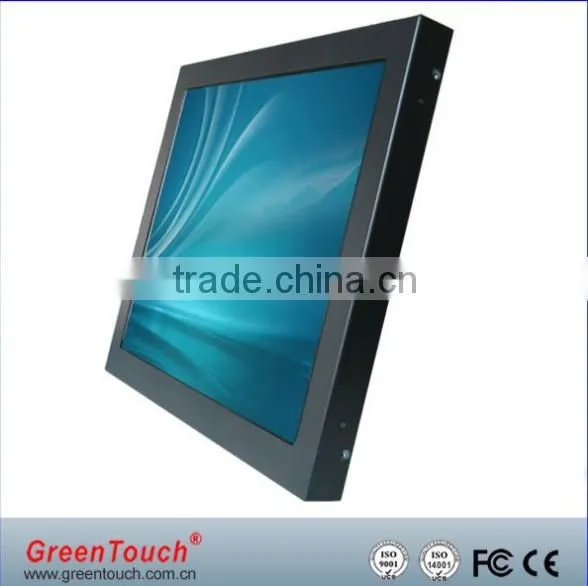

Open frame touch monitor pictures
Open frame touch monitor Certificates
Open frame touch monitor shipping and payment
And also accept by Sea ,Air .or sending with your own forwarder
Open frame touch monitor, why choose ours?
1.Professional manufacturer in R&D, manufacturing, marketing and service of TOUCH SCREEN for 8 years.
2.High quality certificate (CE,ROHS,FCC) Our products have aging test at least for a continuous 48-72hours before being deliveried.
3.Product warranty for 1-4 years.
4.Sufficient stock for your urgent demand. 5.Within 12 hours reply guarantee.
Open frame touch monitor company show
Hope to set up friendly business relationship with all of you.Your comments on our products and any information from your market will be highly appreciated.
(If I'm off line, would you send a massage to me or email please ? i will reply within 12hours .)
