frame IR Infrared Touch Screen Frame 15"-500"
Infrared Touch Panel using solid structure is to fit a variety of large-size and large size displays designed to touch the new program, used to large-size displays such as LCD, PDP, rear projection, etc. into a large interactive display device.
Infrared Touch Panel is not only with other products the same characteristics, but also with uniform resolution, installation of small size, resistant to light interference, the advantages of long life. Anti-scratch, users touch the surface of Touch Panel operation, without damaging the display surface of the screen resolution will not be affected, there is high demand for the industry provides an ideal solution.

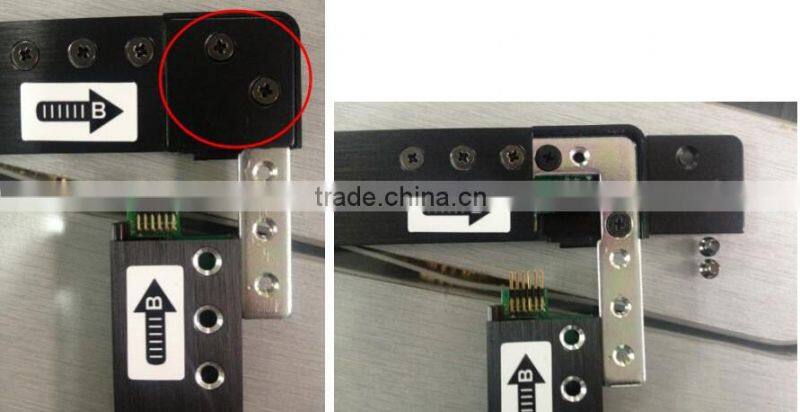

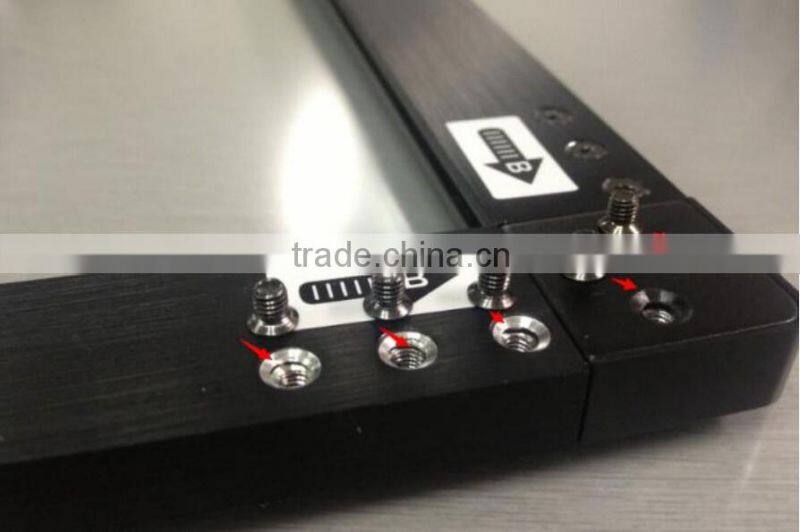

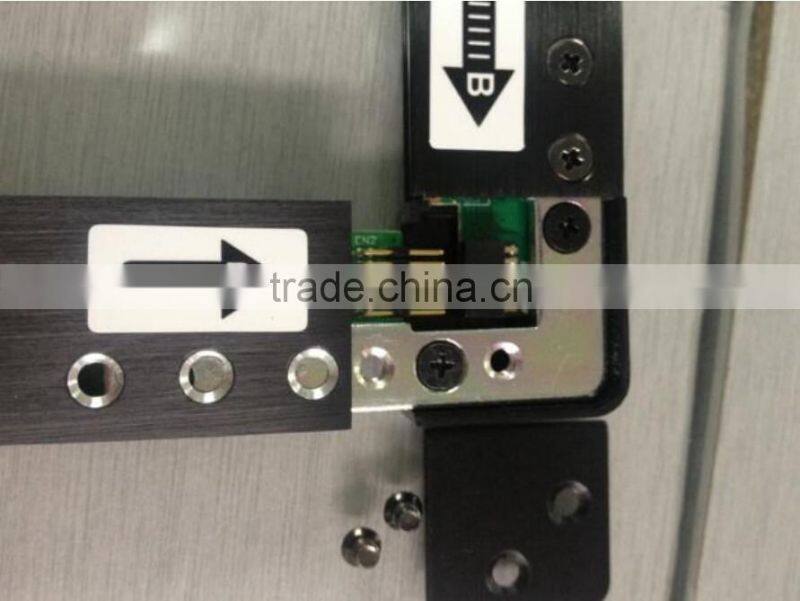

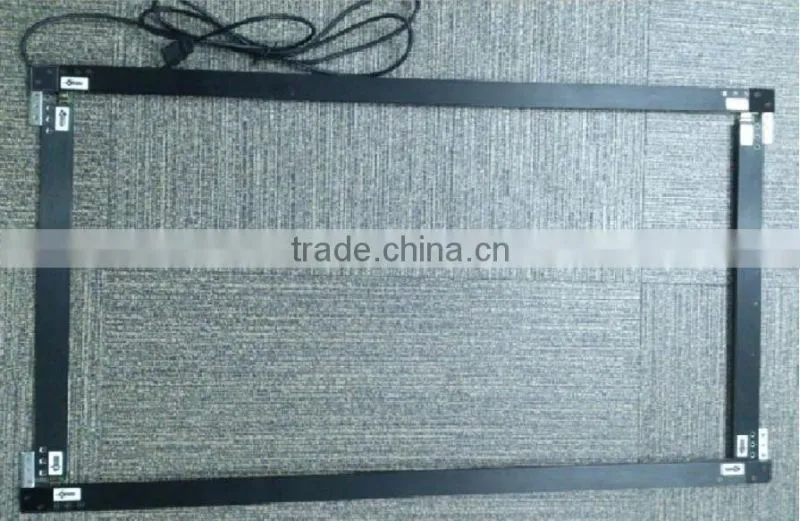

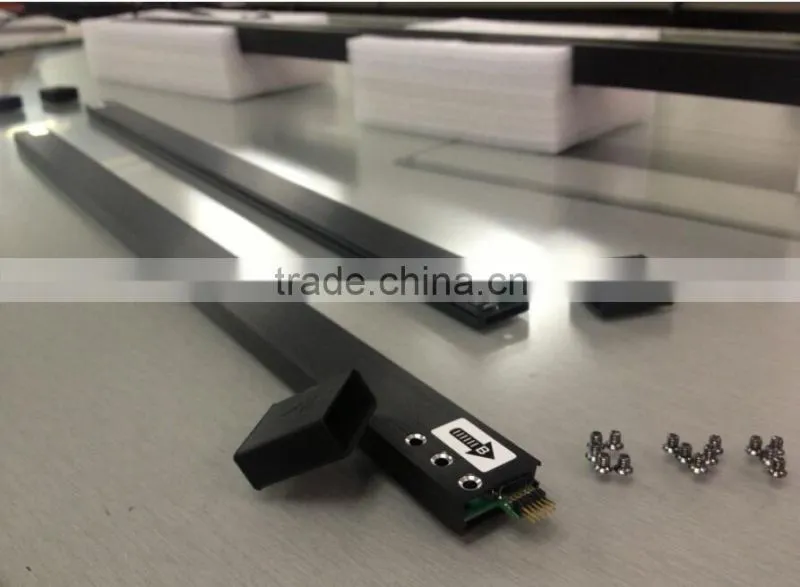

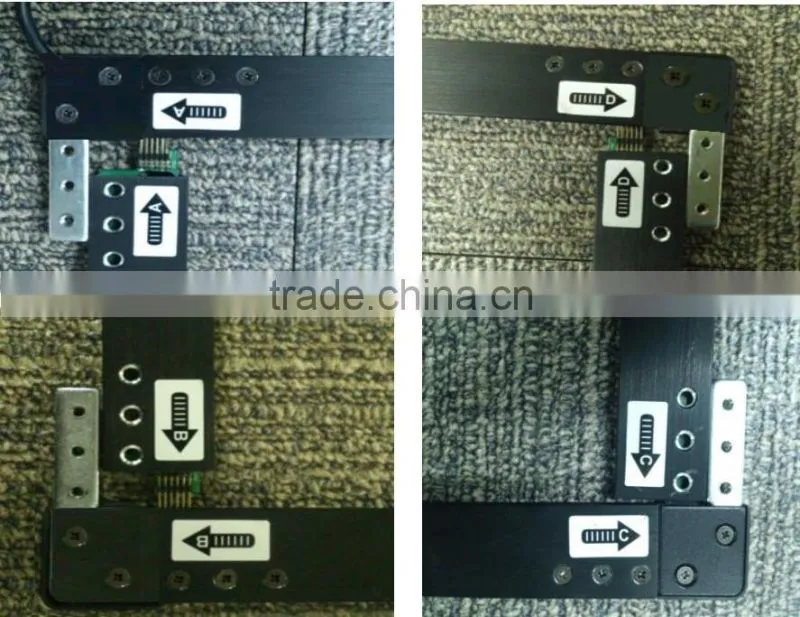

IR( infrared) touch frame products shown:

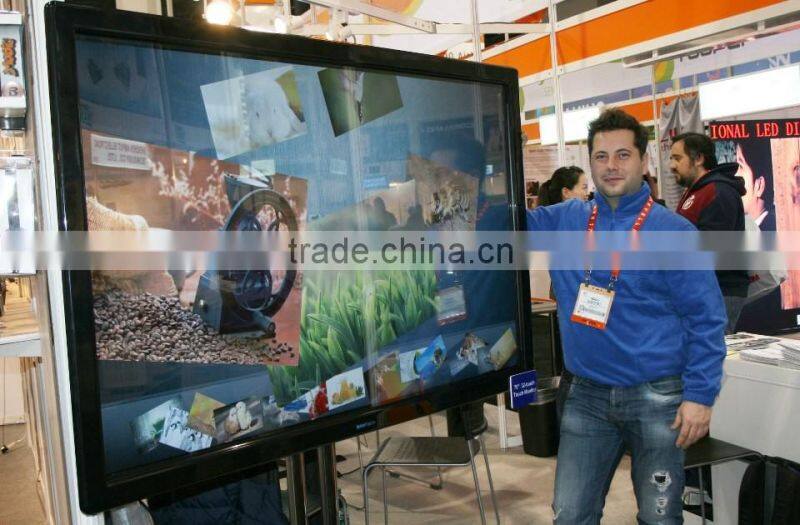

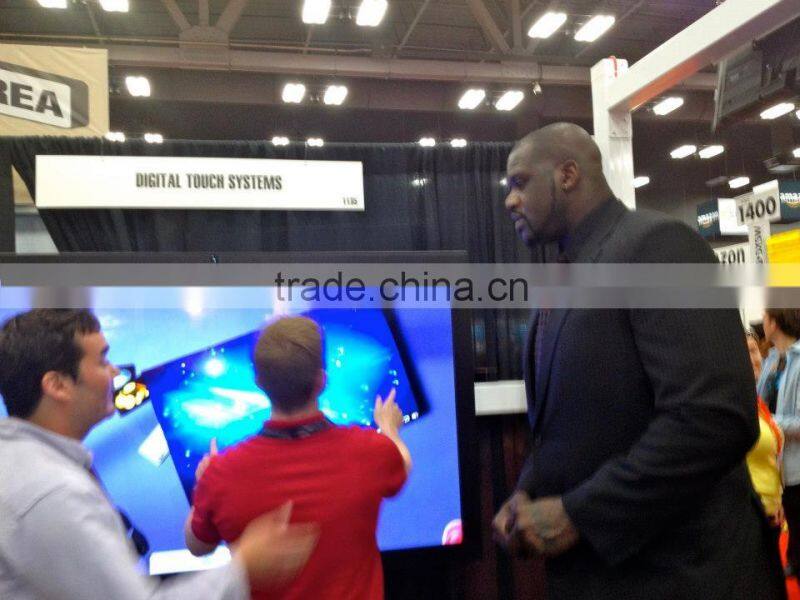

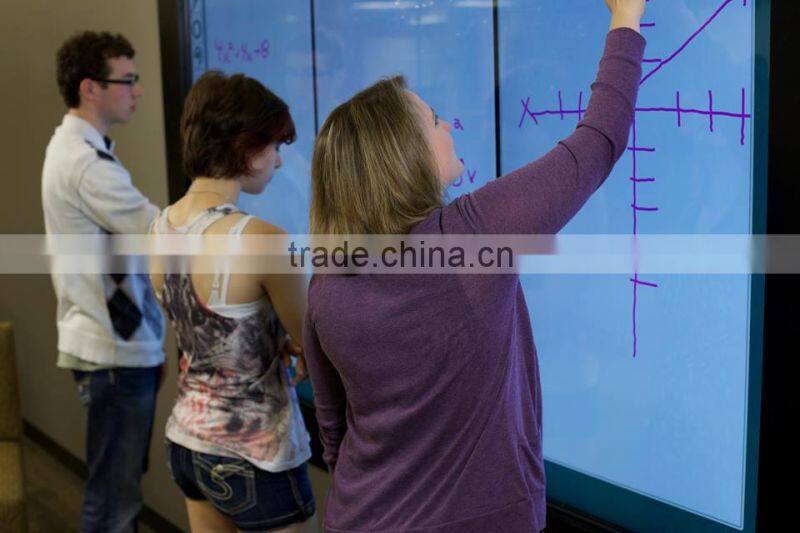

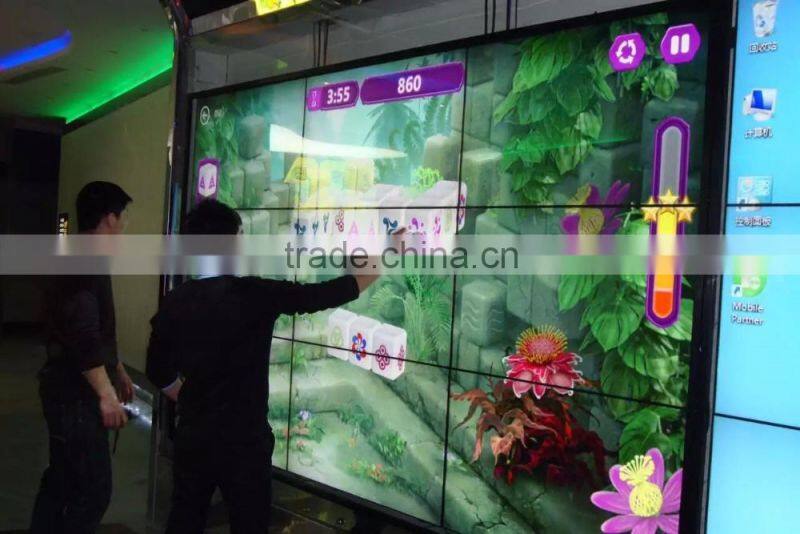

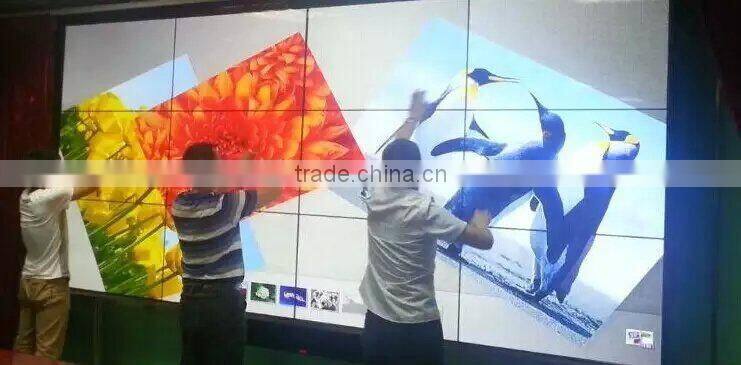

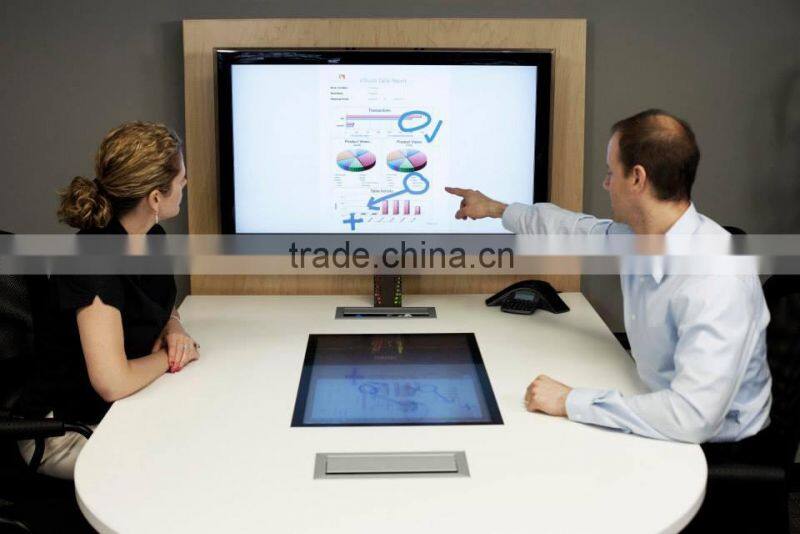

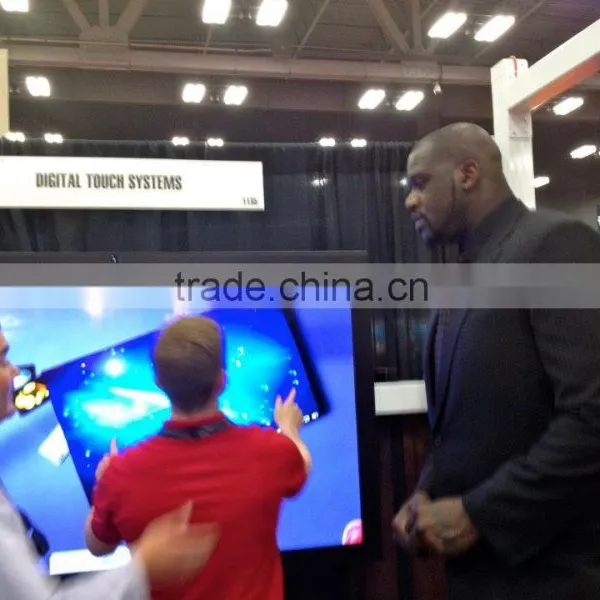

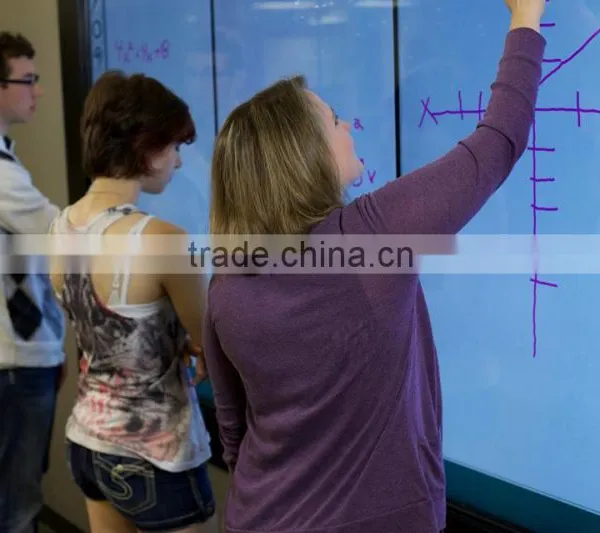

Infrared touch screen frame/touch panel frame application shown,
IR (infrared )Multi Touch Screen Basic:
- True Multi touch)
- IP65 Available
- Support zoom in/out, display rotation
- Withstands severe environments
- Steble, No-drift, Calibration performence
- Single USB to PCS, work perfectly with Laptops under battery mode
- Cost effective
Applications:
- Large Size Information Kiosks
- Gaming Machine, Lottery , POS, ATM and Museum Library,
- Government projects and 4S Shop
- Electronic catalogs
- Computer-based traning
- Eductioin and Hospital Healthcare
- Digital Signage Advertisement
- Industrial Control System
- AV Equip & Rental business
- Simulation Application
- 3D Visualisation /360 Deg Walkthrough
- Interactive touch table
- Large Corporates
Specification:
Multi-touch Screen Size: | |
General Sie |
15inch upto 500inch |
Fit in with |
Panel display device(lcd or projetor) |
Performance: | |
Touch Mode |
Single-touch,Dual-touch, Multi-touch, drag, draw-line, rotate, zoom in/out |
Resolution(Interpolation) |
4096*4096;32767*32767) |
Linearity Error |
<1.5mm |
Response Speed |
<15ms |
Mechanical: | |
Input Method |
Finger or gloved hand |
Touch Times |
Unlimited |
Touch Activation Force |
No minimum touch activation force is required |
Minimum Touch Object |
2.5 mm |
Vandal-proof |
No break by 1-pound steel ball dropping from 130 cm high |
Surface Durability |
Surface durability is that of glass, Mohs' hardness rating of 6 or 7H |
Optical: | |
Glass: |
below 32 With glass, 4mm glare, AG (anti-glare), or AR (anti-reflective) glass optional |
Light Transmission |
92% or 96% |
|
|
Environmental: | |
Temperature |
Operating Range: -20°C ~ 70°C; |
Storage Range: -40°C ~ 85°C | |
Relative Humidity |
Operating Range: 0%~90% RH (no dew falls) |
Storage Range: 0% to 95% RH (no dew falls) | |
|
|
|
|
| |
| |
|
|
|
|
| |
Interface |
Full Duplex USB 2.0 (Full Speed) Plug and play compatible |
| |
|
|
Power |
<1.5W, operating current<300mA |
|
|
|
|
Agency Approvals |
CE, FCC, Rohs |
Operating System: | |
Operation System : Windows 7/8/8.1/10,android,linux. | |

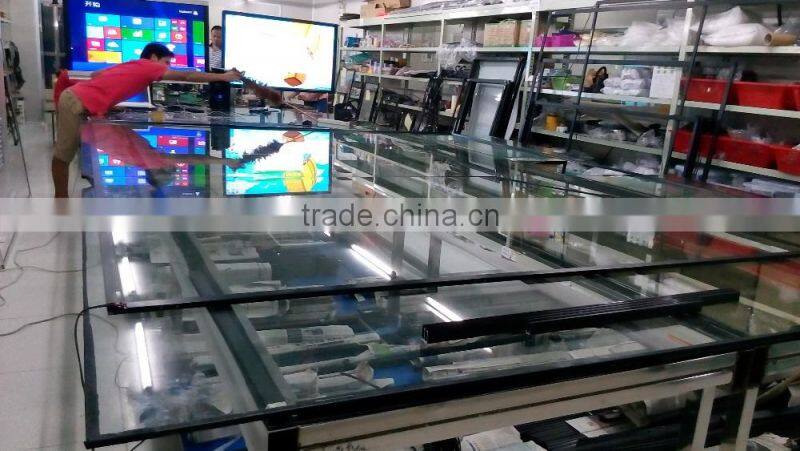

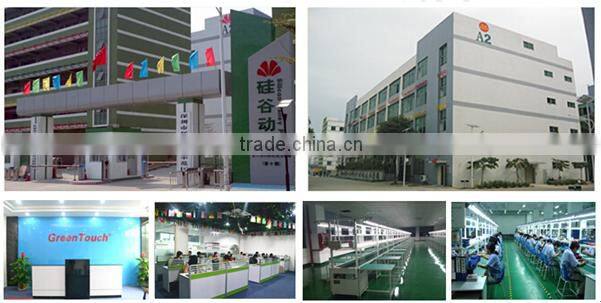

Factory shown:
