19 inch desktop LCD touch screen monitor, POS display, interactive display

Specifications

touch monitor
desktop touch monitor
touch screen monitor
VGA DVI port built-in
USB RE232 interface wall mounted

Desktop touch monitor description

    GreenTouch Desktop Touch Monitor adopt new A + LCD screen produced by international companies, designed with all-plastic ergonomic shell, and new energy-saving drive board . Special for desktop and desktop public service inquiry system, POS systems, hotel reception, self-service, industrial manufacturing, information systems and other interactive touch applications environmental design.Our Desktop Touch Monitor use 4/5 wire resistive touch screen that independently developed and produced by our company, it has a high-quality, cost-effective, good durability, and stability character. Pure glass for touch screen also provides good clarity and light transmittance. Slim housing and stylish design base, made the touch monitor with compact and elegant appearance. On the back of touch

monitor left 75mm * 75mm spacing standard VESA hole for hanging installation.



Main Feature

1.Touch function and LCD display all in one solution, performance excellent, good appearance

2.Higher sensitivity and response speed than same product, very smoothly when touch and draw line

3.Bottom base detachable, can be wall mounted or bracket installation;

4.High life time, LCD upgrade or change will not cause the touch monitor appearance different

5.Hight brightness, high contrast ratio, quick response time, multi color support, wide viewing angle

6.Full plastic housing, beautiful out-looking, narrow frame design, slender and super thin

7.National standard professional production line, one million dust-free environment ,screen body and LCD screen fit;

8.Certification: FCC,CE,CCC,UL;



Destop touch monitor specification



Model number	GT-DTM215
Product structure	Desktop,Plastic housing, Detachable bottom base
Color	Black
Display type	New 21.5"Active matrix TFT-LED  4:3
Effective display size	248×186 (mm)
Best Resolution	1024×768@60Hz
Support color	16.7M
Brightness(Typ.)	LCD panel:500cd/m2
	LCD panel with touch screen:430cd/m2
Response time(Typ.)	5ms
Pixel	0.296*0.296mm
Vewing Angle(Typ.at CR>10))	Horizontal(L/R):85°/85°
	Vertical(Up/Down):80°/80°
Contrast Ratio(Typ.)	1000:1
Video input	Mini D-Sub15 frame VGA,DVI
Scan Frequency(L/F)	Horizontal:30~80KHz ,Vertical: 55~75Hz
Power input	External connect power adapter,Support AC 100 ~ 240V,50 ~ 60Hz,DC12V-3A
Environment	Operating temperature:0 to 50°C
	Storage temperature:-20 to 60°C
	Operating humidity:20% to 80%
	Storage humidity:10% to 90%
Mean Time Between Failure (MTBF)	30,000hours
Backlight tube life (Typ.)	30,000hours
Power comsuption	Max 17W

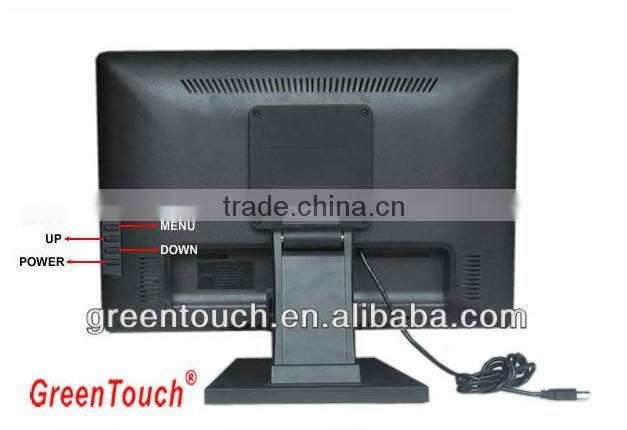

OSD Control	Key:POWER,MENU,AUTO,UP,DOWN
	Function:brightness,contrast ratio,self correction,phase position,field position,language,function set,reset
Installation method	1) put on the desk 2) wall mounted or bracket installation
Touch screen type	4/5 resistive touch screen
Touch life	More than 5,000million times
Touch screen surface hardness	Same as glass,mohs 7
Touch object	Finger or touch pen
Touch interface	USB or RS232
Touch response time	10ms
Touch force	30g
Display size	Not including the bottom base size:300×242×43mm
	Including bottom base size:300×297×43mm
Package size	345×300×145mm
Weight(Net weight/after packed)	1.32Kg/1.8Kg
Certification	FCC,CE,CCC,RoHS
Warranty	Lcd monitor: 3years,touch screen: 3years
Note: LCD display paramter will be changed according to the LCD brand and model

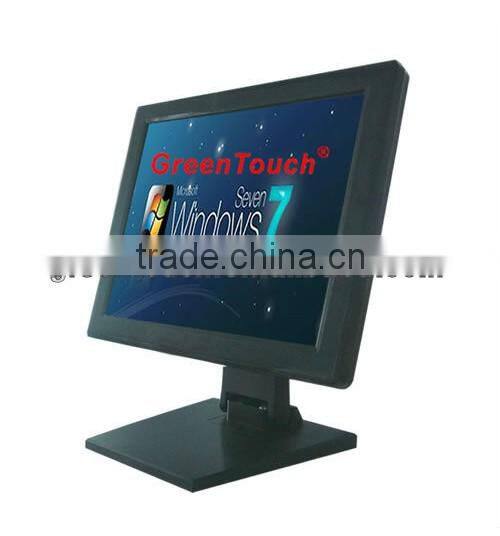

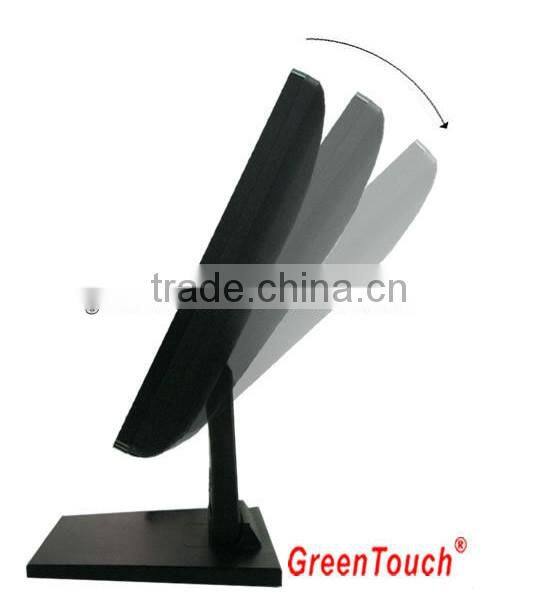

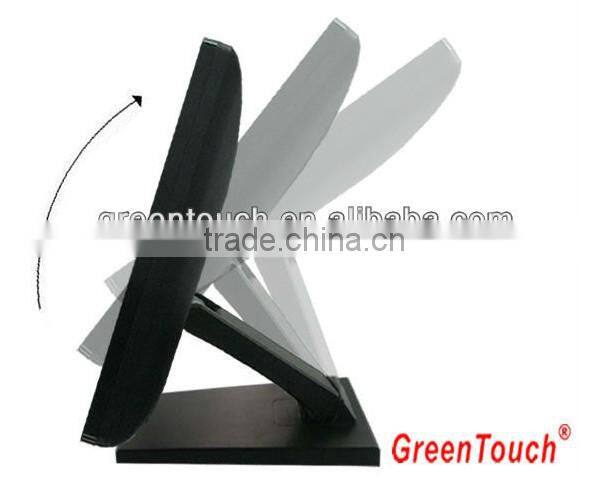

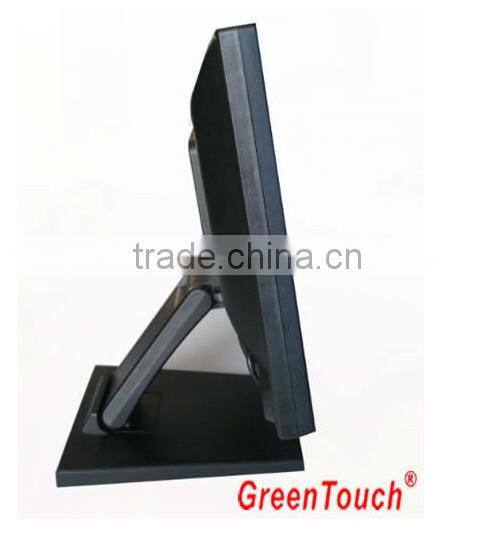

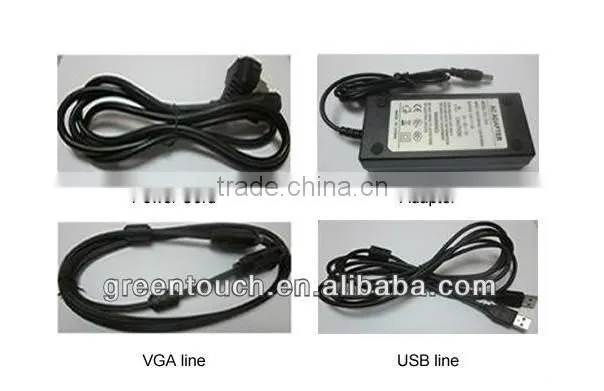

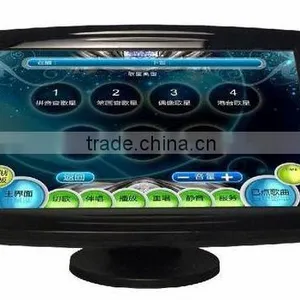

Desktop touch monitor pictures



Desktop touch monitor shipping&payment

DHL/UPS/Fedex :     about 3 ~7working days

EMS/ TNT : 5-10 working days

Hong Kong Post Air Mail/ Hong Kong Post Air Parcel :  7 to 30 days

Notes: Yours goods will be dispatched within 3 business days immediately the payment has been confirmed. If your payment fails, the order will be closed automatically.



Return and Warranty Policy

1. All the goods are carefully inspected before shipping, so if you are not satisfied with them after you’ve  receive them, you can exchange the items in one week . Therefore you have to contact us as soon as possible.

2. The shipping and handling charge is not refundable and the customer should be responsible for all the charges of the returning and reshipping
3. All return items much be packed in its original conditions, including box and accessories, Men made defects are not guaranteed, such as broken, scratched and so on.
4. For any items, please send by EMS or your local post when sent back.

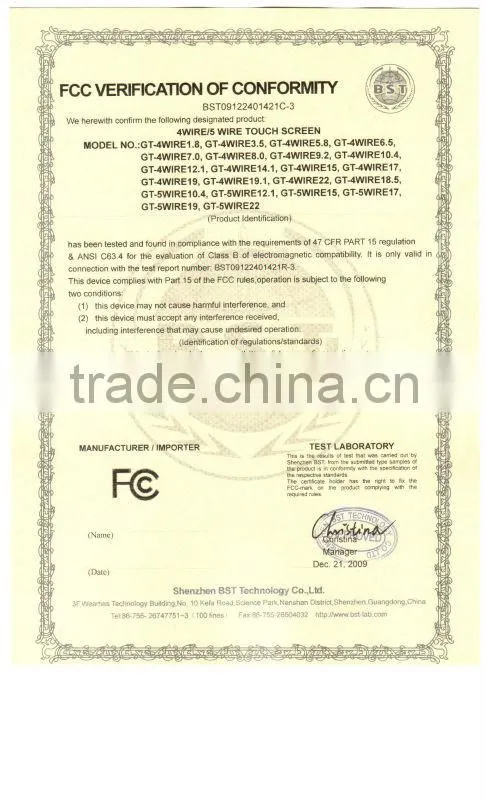

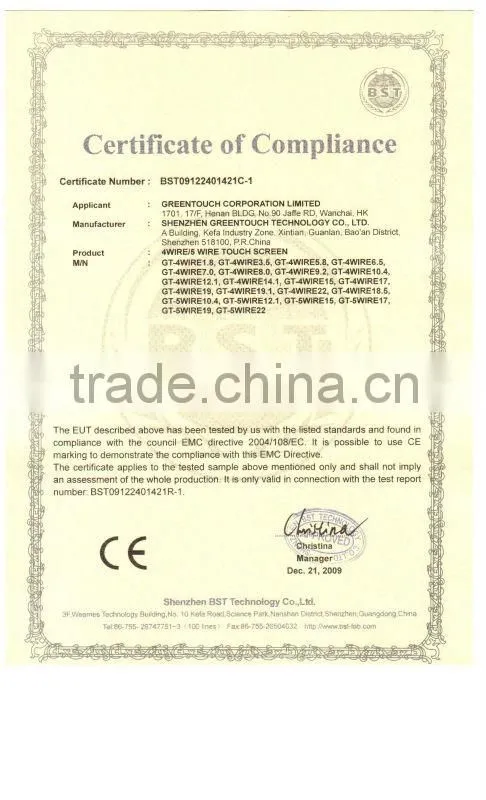

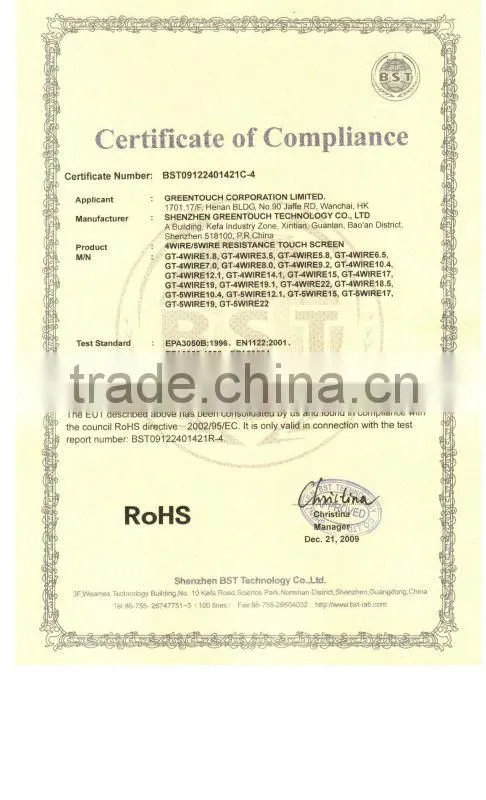

Desktop touch monitor certificates

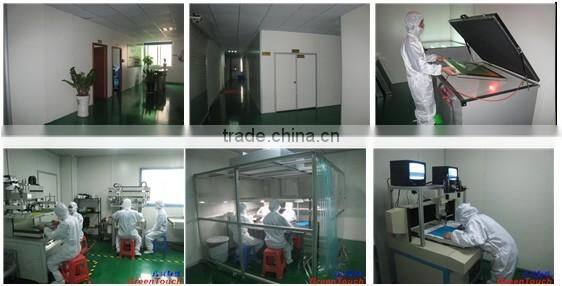

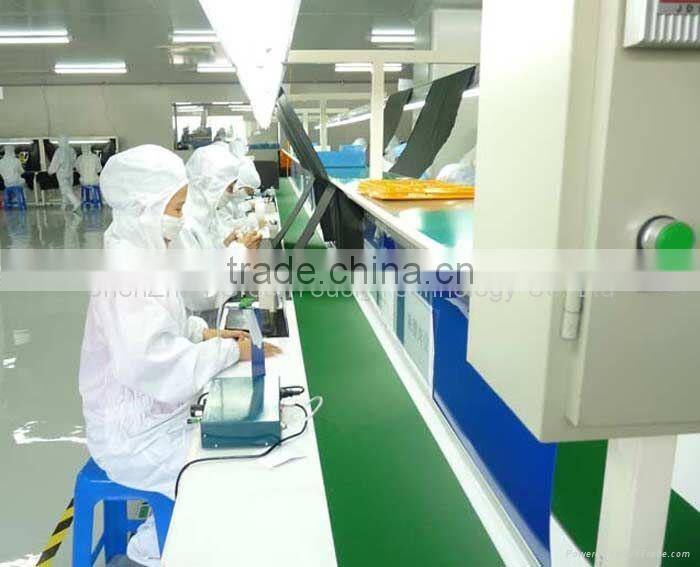

Company &factory show

Hope to set up friendly business relationship with all of you.Your comments on our products and any information from your market will be highly appreciated.



(If I'm off line, would you send a massage to me or email please ? i will reply within 12hours .)
