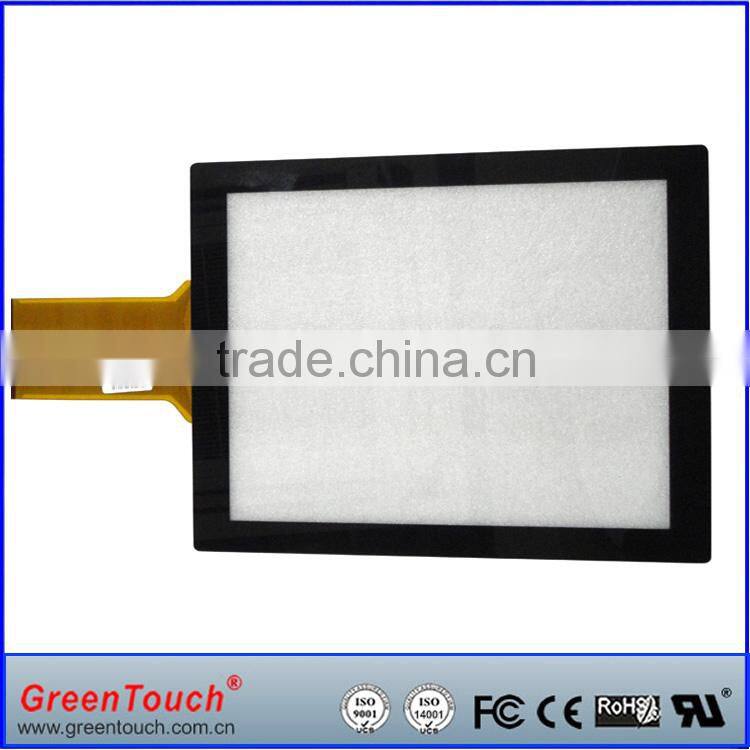

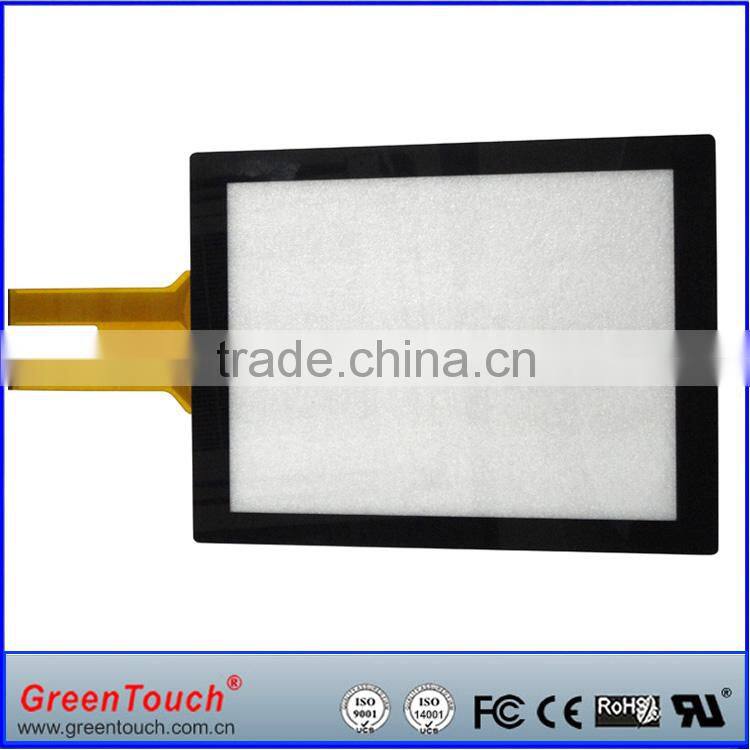

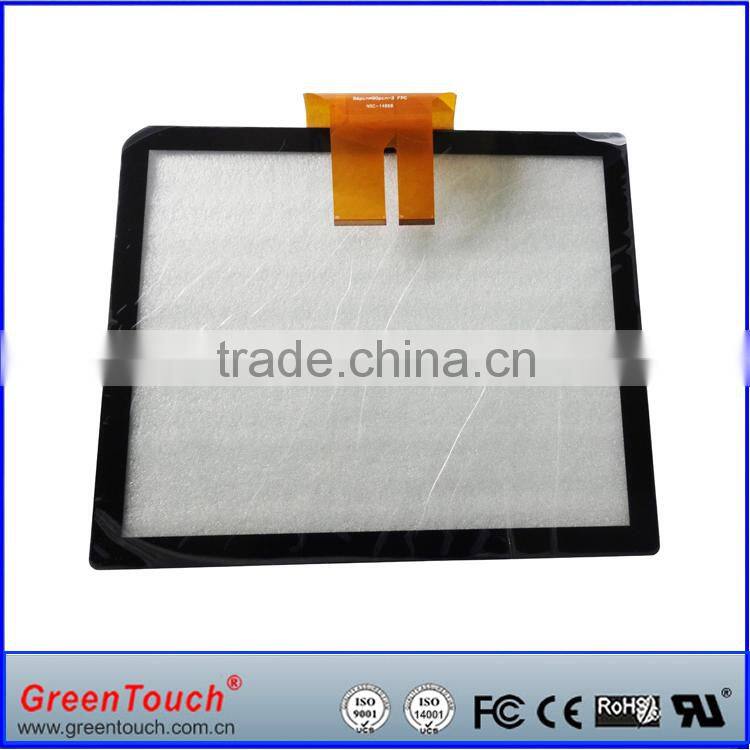

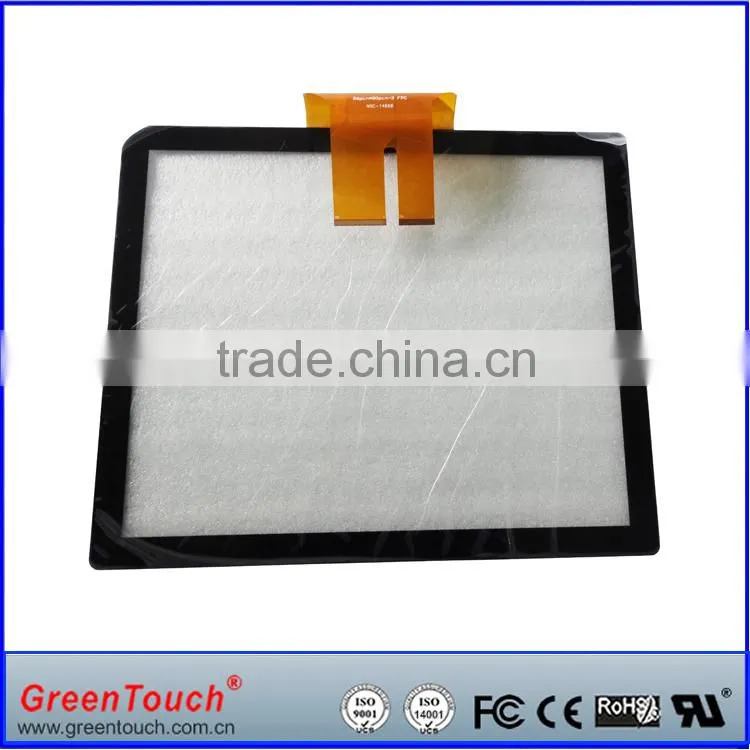

Help CenterGreenTouch 10.4 Inch 10.4''open Frame Capacitive Touch Screen Overlay,USB Cable
Related Products
-
Multi-Touch 42inch Capacitive Touch Panel ,Projected Capacitive Touch Screen(PCAP)US$ 381.00 - 381.00MOQ: 1 Set -
High Quality 10 Points Touch Screen,23" Capacitive Touch OverlayUS$ 1 - 357MOQ: 1 Piece
-
High Quality 10 Points Touch Screen,21.5" Capacitive Touch OverlayUS$ 1 - 480MOQ: 1 Piece
-
10.1"10.4"12.1"13.3"15"15.6"17"17.3"18.5"19"21.5"23"23.6"27"32"42" Usb Touch Panle (PCAP)US$ 1 - 399MOQ: 1 Set
-
10 Points Capacitive Multitouch Panel Kit 10.1inch~42inch(PCAP)US$ 1 - 399MOQ: 1 Set
Contacting detail:
Name:Andrew Yuan
Skype:greentouch88
Whatsapp:0086-15013459119
Wechat:0086-15013459119
Tel:0086-13827465009
Capacitive touch screen technology
Capacitive touch screen is a four-storey glass screen surface and laminated within the glass screen is coated with a layer of ITO, the outermost layer is a thin layer of silica glass, laminated ITO coating as a face, four electrode leads in the four corners, inner ITO good shielding to ensure a good working environment.
When finger touch the metal layer that is, because the body farm, users and touch-screen surface with a coupling capacitor, high frequency current, capacitance is a direct conductor, so fingers sucked away a very small amount of current from the contact point. The respectively current outflow from the touch electrode on the four corners of the screen, and flows through the four electrode current is proportional to the distance from the fingers to the four corners, controller through the accurate calculation of the four current percentage, came to the location of the touch point.
> 4096x4096 Resolution
> USB Interface
> High accuracy and sensitivity
> Glass + Glass or PET + Glass
> Sensitive and fast response
> Our products have passed CE, FCC, ROHS certification!
Produt Specification
| Interface Type: | USB |
| Resolution | 4096x4096 |
| Screen Ratio | 4:3 |
| Material | Glass + Glass or PET + Glass |
| Certificates | CE, FCC, RoHS |
| Input method | Finger or touch pen |
| Position accuracy | 2~5mm |
| Operating Voltage | 3.3V adjustable |
| Operating current | 2.5~10mA Depends on IC |
| Response time | Less than 10ms |
| Touch action force | 30~60g |
| Operating temperature | -10°C~60°C |
| Storage temperature | -20°C~80°C |
| Surface hardness | ≥7H |
| Working environment | Under sunlight, indoor and outdoor |
| Transparency | ≥92% |
| Isolation resistance | ≥20MΩ DC 25V |
| The number of hits | ≥50000000/point |
| Warranty | 1 year |
| Support Systems | Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac |

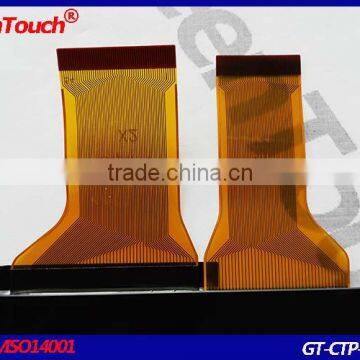

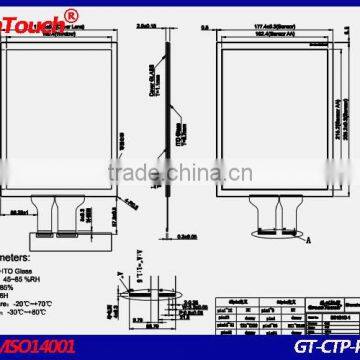

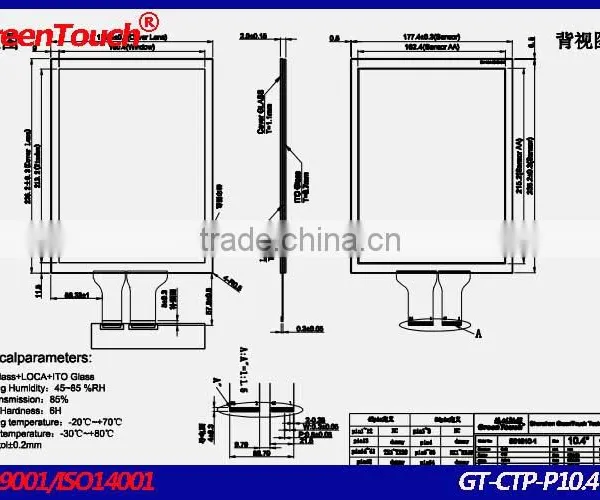

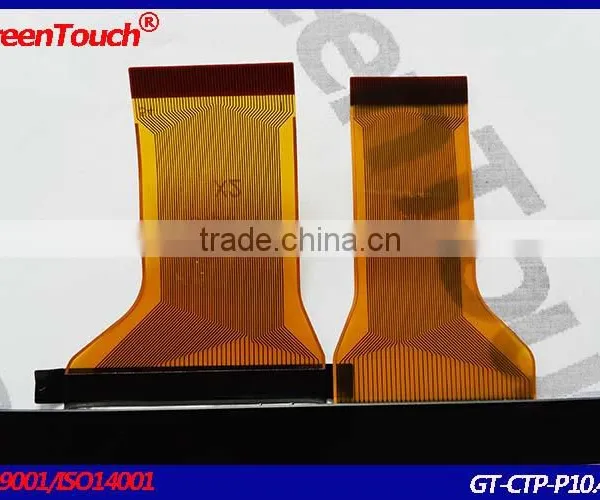

Picture Show
Shipment and Payment

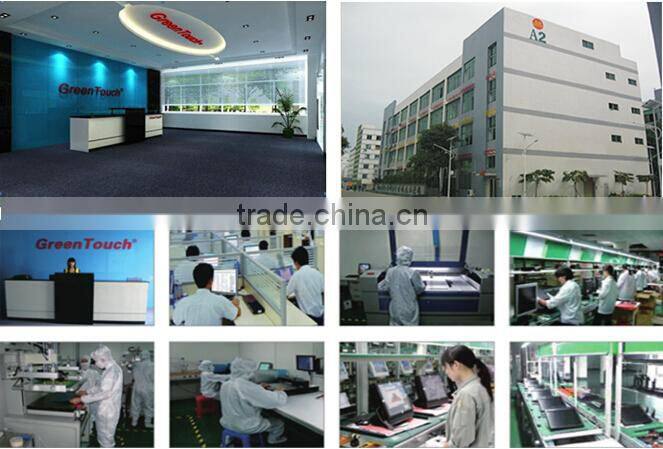

Factory Show
