Help Center10 Points Capacitive Multitouch Panel Kit 10.1inch~42inch(PCAP)
Related Products
-
10.1"10.4"12.1"13.3"15"15.6"17"17.3"18.5"19"21.5"23"23.6"27"32"42" Usb Controller PCAP 10 Points Multi Touch Panel KitUS$ 1 - 399MOQ: 1 Set -
Projected Capacitive Touch Glass Screen 21.5inch Capacitive Touch Panel Screen GlassUS$ 1 - 399MOQ: 1 Set
-
10.1,10.4,12.1,13.3,15.6,17,17.3,18.5,19,19.5,21.5,23,23.6,24,27,32,42"capacitive Tocuh Panel Screen With Usb Controller or R232US$ 1 - 999MOQ: 1 Set
-
10.1,10.4,12.1,13.3,15.6,17,17.3,18.5,19,19.5,21.5,23,23.6,24,27,32,42"USB Capacitive Touch Glass Panel Touch EETI ControllerUS$ 1 - 72MOQ: 1 Set
-
EETI USB Capacitive 10.1 ~42inch Multi PCAP Touch Screen With USB or R232 PortUS$ 1 - 72MOQ: 1 Set
Capacitive Touch Panel CTP
Capacity Touch Panel is to use the working current of induction of human body.The operational principle of the projected capacitive touch panel: There are two layers of the ITO layer under the surface of glass. This ITO layer respectively forms the electric field of X axis and Y axis, which can keep balance by crossing the surface of the class. Once the fingers approach the glass surface, the fingers and the electrode X axis or Y axis will form a new electric field, which can make the local capacitance change. Then the controller will determine the location based on capacitance changes.
Capacitive touch screen is very different with traditional resistive touch screen. When the resistive touch screen works, you can only judge a touch point. And if there are two or more touch points, you can not make the right judgments. So the resistive touch screen applies only to judge a few simple actions such as click, drag and drop. The capacitive multi-touch screen can decompose the user's touch into colleting multi-point signal and determining the significance of the signals, and complete the judgments of complex action. Moreover, you can feel it when you lightly touch the projected capacitive touch sensor panel. Better durability, more than 90% light transmission rate, high transparency than the traditional resistive touch screen are the advantages of our products.
Basic information:
- Strong production capacity: 100000 psc capacitive touch screen per month.
- Best Quality:All the products passed CE,FCC,RoHS certifications.
- Best after services: Warranty for one year.if you have any quality issue ,we will contact with you anytime or remote and detect instanty.
-
Delivery :Double check full products one by one as a sale and engineer before shipping.
- leadtime:2~3 workdays or two weeks
- MoQ:1unit
-
Payment:100% by T/T before shipment;
- Package: polyfoam for inner packing and carton for outer packing,Wooden Shelf protecting
specification &pricellist
Item |
Product Model |
IC Controller) |
Specification(10 points touch) & Description |
Unit Price(USD$) |
1 |
TK-0802-PF-C-2.4 |
UE01 |
507408 Capacitive Touch Screen 8.4inch, controller &USB cable4:3,GG,10touch points |
US$42.6 |
2 |
TK-1008-PF-C-1.45 |
UE01 |
501110 Capacitive Touch Screen 9.7inch, controller &USB cable4:3,GG, 10touch points |
US$44.8 |
3 |
TK-1009-PF-C-2.0 |
TK-UE11 |
Capacitive Touch Screen 10.1inch&10.4inch, controller &USB cable16:9,GG, 10touch points |
US$58.8 |
4 |
TK-1207-PF-C-2.0 |
TK-UE11 |
Capacitive Touch Screen 12.1inch, controller &USB cable4:3,GG, 10touch points |
US$68.6 |
5 |
TK-1518-PF-C-2.0 |
TK-UE-11 |
Capacitive Touch Screen 15inch,controller &USB cable4:3,GG, 10touch points |
US$79.6 |
6 |
TK-1601-PF-C-2.4 |
TK-UE11 |
Capacitive Touch Screen 15.6inch,controller &USB cable16:9,GG, 10touch points |
US$82.88 |
7 |
TK-1701-PF-C-2.4 |
TK-UE11 |
Capacitive Touch Screen 17inch,controller &USB cable4:3,GG, 10touch points |
US$86.3 |
8 |
TK-1801-PF-C-2.4 |
TK-UE12 |
Capacitive Touch Screen 18.5inch,controller &USB cable16:9,GG, 10touch points |
US$90.8 |
9. |
TK-1901-PF-C-2.4 |
TK-UE12 |
Capacitive Touch Screen 19inch,controller &USB cable4:3,GG, 10touch points |
US$92.8 |
10 |
TK-2101-PF-C-2.4 |
TK-UE12 |
Capacitive Touch Screen 21.5inch,controller &USB cable16:9,GG, 10touch points |
US$106.8 |
11 |
TK-2301-PF-C-2.4 |
TK-UE12 |
Capacitive Touch Screen 23.1inch,controller &USB cable4:3,GG, 10touch points |
US$113.8 |
12 |
TK-2401-PF-C-2.4 |
TK-UE12 |
Capacitive Touch Screen 23.6inch,controller &USB cable16:9,GG, 10touch points |
US$119.8 |
13 |
TK-2701-PF-C-2.4 |
TK-UE12 |
Capacitive Touch Screen 27inch,controller &USB cable16:9,GG, 10touch points |
US$187.2 |
14 |
TK-3201-PF-C-2.4 |
TK-UE12 |
Capacitive Touch Screen 32inch,controller &USB cable16:9,GG, 10touch points |
US$236.8 |
15 |
TK-4202-PF-C-2.4 |
EETI |
Capacitive Touch Screen 42inch,controller &USB cable4:3,GG, 10touch points |
US$377.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||

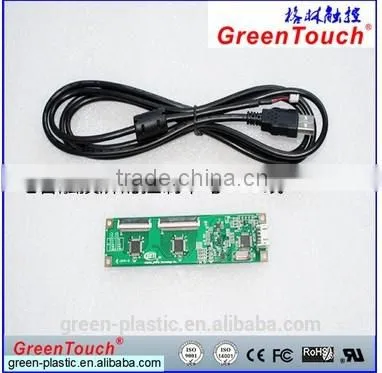

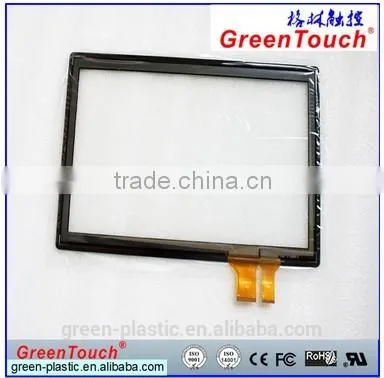

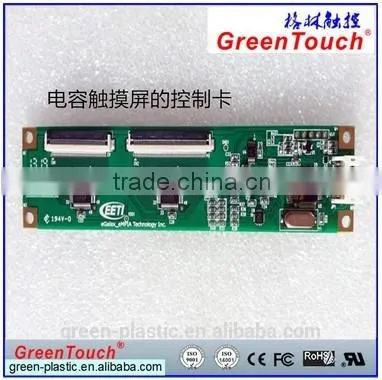

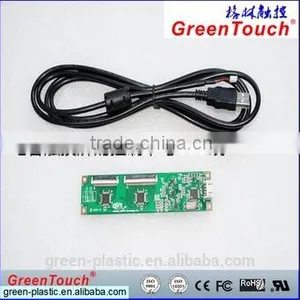

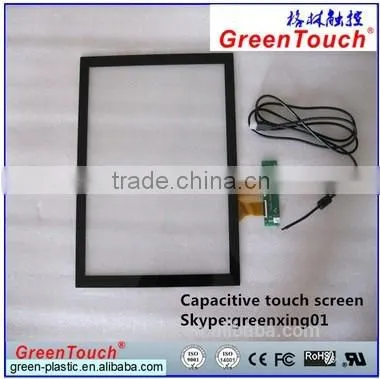

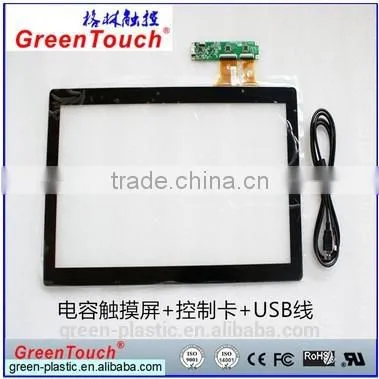

Products shown:
Application for
Suitable for mobile phones, tablet PC, touch All-In-One PC, GPS,E-book, gaming devices, touch monitors, etc .
Factory shown:
Shipping shown:
