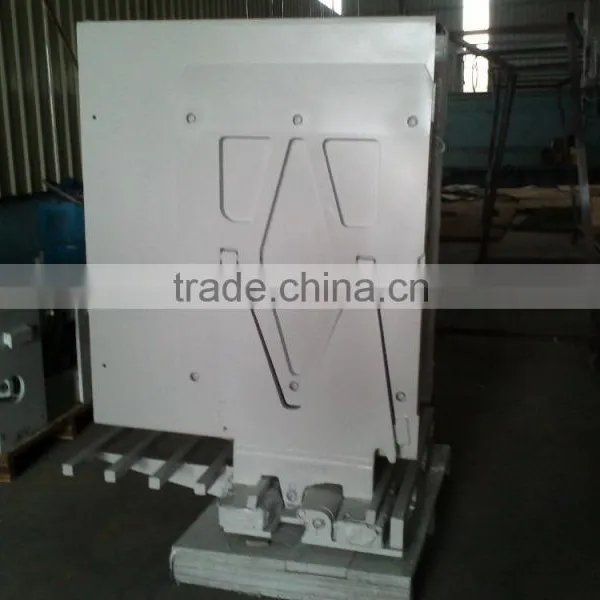

Forklift Attachment Carton Clamps
1. Applications:

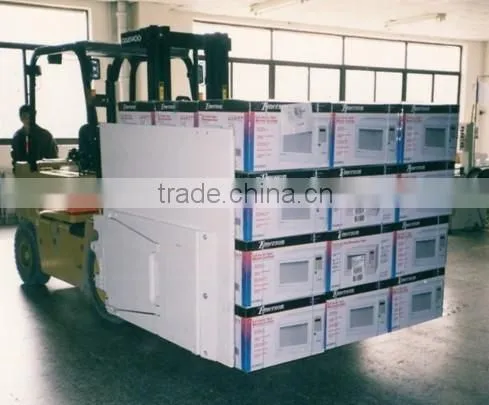

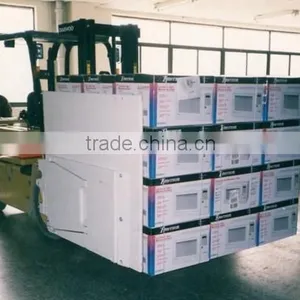

Forklift attachment carton clamps designed for the warehouse, beverage, and electronic industries. Achieve all the benefits of palletless handling of unitized loads in your manufacturing and distribution operation.
2.Features:
-Improved clamp force distribution to reduce product damage.

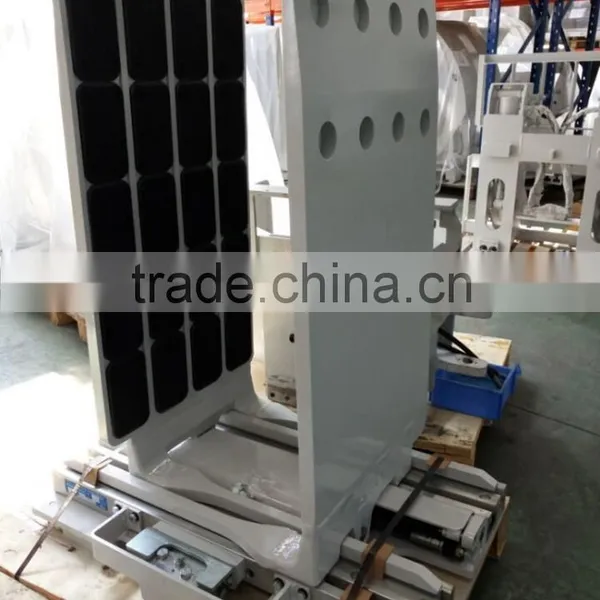

-Articulating pads to provide full product contact.
-Sideshift force limitation valve to handle one to four appliances.
-Taller contact pads for maximum load stabilization.
-Fast,even arm speed for efficiency and productivity.
-Vulcanized rubber pads for durability.
3.Specification
| Item No. |
Mounting Class |
Opening Range |
Arm Height |
Arm Length |
Frame Width |
Vertical Center of Gravity |
Weight |
Effective Thickness |
Horizontal Center of Gravity |
|
| CGV | ET | CGH | ||||||||
| (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | (mm) | |||
| 1150@600 | CCS15D-001A | Ⅱ | 380-1530 | 1220 | 1220 | 940 | 320 | 650 | 127 | 439 |
| 1600@510 | CCS20D-002A | Ⅱ | 560-1930 | 1220 | 1065 | 1040 | 325 | 644 | 127 | 422 |
| 1600@535 | CCS20D-003A | Ⅱ | 560-1930 | 1220 | 1170 | 1040 | 325 | 651 | 127 | 427 |
| 1600@585 | CCS20D-004A | Ⅱ | 560-1930 | 1220 | 1220 | 1040 | 315 | 696 | 127 | 447 |
| 1600@610 | CCS20D-005A | Ⅱ | 560-1930 | 1220 | 1220 | 1040 | 320 | 705 | 127 | 450 |
| 1400@710 | CCS20D-006A | Ⅱ | 560-1930 | 1220 | 1420 | 1040 | 315 | 770 | 127 | 483 |
| 1450@685 | CCS20D-007A | Ⅱ | 560-1930 | 1525 | 1370 | 1040 | 380 | 824 | 127 | 485 |
| 2300@510 | CCS30D-008B | Ⅲ | 535-1850 | 1525 | 1015 | 1015 | 450 | 899 | 152 | 485 |
| 2300@535 | CCS30D-009B | Ⅲ | 535-1850 | 1525 | 1066 | 1015 | 450 | 906 | 152 | 485 |
4. Options and Accessories:
-Four-position pressure regulator valve.
-Pad height extension.
-Heightening load backrest.
