forklift with block clamp
1, efficiently handles cubic goods such as blocks,cement bricks,etc.
2, easy and safe operation.

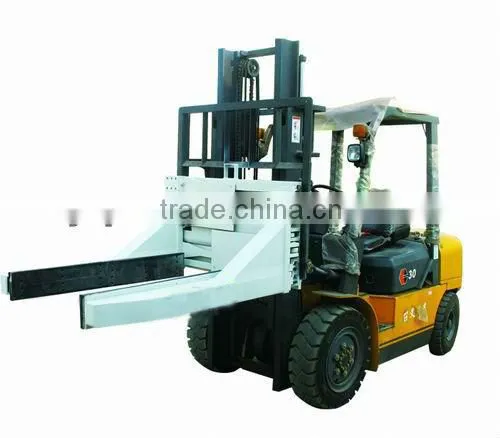

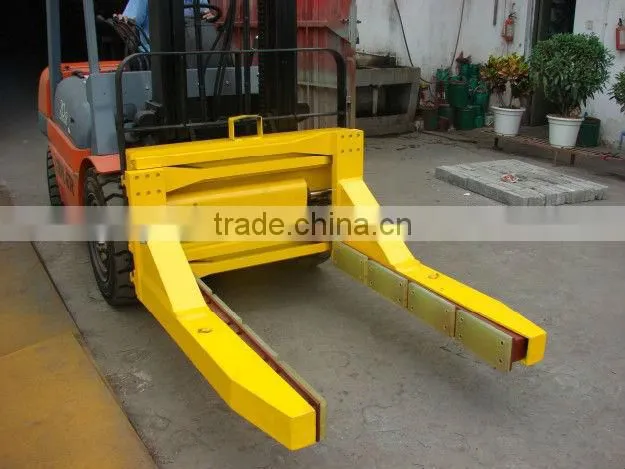

Forklift with Block Clamp
Block clamp can efficiently and saftly clamp various stone and block units. It is applied in fields like brickm, hollow block prefab contrete, and stone slab, etc. Non pallet conveying and stacking process.
Adopt full steel complete frame, high density, can meet the requirement of high forcing performance.
Self-lubricate sliding brace, installation firm and stable, longer life-span.
Unique hydraulic design, ensuring moving right and left smoothly while clamping status, easy to lay out.
Optimized structure ensure nice visual field.
Adopting T sliding sheft with high force and bear equally.
Options
*Custom opening ranges
*various material facing arm
*various mounting class available.
*slip-on arm
*load backrests
| Name |
Capacity/ Load Center (kg@mm) |
Type |
Mounting Class |
Opening Range E (mm) |
Arm Height H (mm) |
Arm Length L (mm) |
Frame Width B (mm) |
Overall Height(mm) | Weight(kg) |
Effective Thickness (mm) |
Horizontal Center of Gravity (mm) |
| Forklift Block Clamps | 2700/500 | CKS30D-001A | II | 290-1610 | 128 | 1100 | 1016 | 710 | 500 | 145 | 220 |
| 2700/500 | CKS30D-002A | II | 290-1610 | 242 | 1100 | 1016 | 710 | 550 | 145 | 220 | |
| 2700/500 | CKS30D-003A | II | 290-1610 | 128 | 1000 | 1016 | 710 | 490 | 145 | 211 | |
| 2700/500 | CKS30D-004A | III | 290-1610 | 128 | 1100 | 1016 | 710 | 500 | 152 | 220 | |
| 2700/500 | CKS30D-005A | III | 290-1610 | 242 | 1100 | 1016 | 710 | 550 | 152 | 220 | |
| 2700/500 | CKS30D-006A | III | 290-1610 | 128 | 1000 | 1016 | 710 | 490 | 152 | 220 | |
| 2700/500 | CKS30D-007A | III | 290-1610 | 242 | 1400 | 1016 | 710 | 650 | 152 | 250 |
