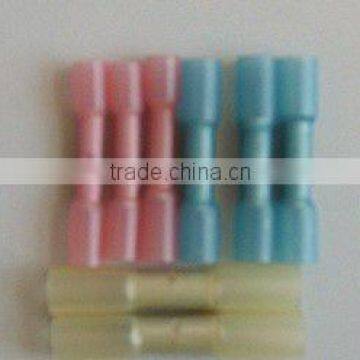

WR-02 Heat Shrinkable Surlyn Butt Splice
Negotiable
/ Piece
10000 Pieces(Min. Order)
- Dalian China
- T/T
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | UPM | |
| Model Number | WR-02 | Type | Insulation Sleeving | |
| Material | Composite Polymer | Application | Low Voltage | |
| Rated Voltage | 1kV |
Product Description
Specifications
Voltage class 1kV for wire connectionOur layer water clear
WR-02 Heat shrinkable HDPE butt splice
Voltage class 1kV for wire connection
Dual wall heat shrinkable tubing with HDPE outer layer and adhesive inner layer, ideal for wire connections, repairs and maintenance in automotive, marine vessels and other heavy machinery.
Features/Benefits:
1)HDPE-based outer layer provides strong protection against abrasion and mechanical damage
2)Seals and protects against water and contaminants
3)Inner adhesive bonds to plastics, rubbers and metals
Temperature:
Operating temperature: -55°C to 125°C
Shrink temperature: 150°C to 200°C
Color:
Red, Blue and Yellow
Cross reference:
DSG Canusa: CRIMPSEAL II
| Dimensions | |||||||
| Reference | Color | Diameter Before Shrink Φ (mm) | Wire Size | Standard package | |||
| AWG | mm2 | pcs/pack | |||||
| WR-02-1 HDPE | Red | 4.7 | 22-18 | 0.5-1.0 | 50 | ||
| WR-02-2 HDPE | Blue | 5.7 | 16-14 | 1.5-1.0 | 50 | ||
| WR-02-3 HDPE | Yellow | 6.7 | 12-10 | 4.0-6.0 | 50 | ||
| Technical Data | ||||
| Property | Test method | Values | ||
| Physical | Tensile strength | ASTM D2671 | ≥16 MPa | |
| Breakdown elongation | ASTM D2671 | ≥200% | ||
| Aging (158°C /168hrs) | Tensile strength | ASTM D2671 | ≥11.5 MPa | |
| Breakdown elongation | ASTM D2671 | ≥100% | ||
| Water absorption (23°C/336hrs) | ASTM D570 | ≤0.5% | ||
| Density | ASTM D2671 | 0.95 | ||
| Heat shock (250°C/4hrs) | ASTM D2671 | No drop, No flow(outer layer only) | ||
| Cold bend ((-30°C/4hrs)) | ASTM D2671 | No cracking | ||
| Electrical | Volume resistivity | ASTM D2671 | ≥1014 Ω.cm | |
| Chemical | Copper corrosion | ASTM D2671 | No corrosion | |
