Nordic Beacon WT51822 S4AT With CE FCC RoHS Bluetooth Serial Module WT51822-S4 NRF51822

Name: Nordic Beacon WT51822 S4AT With CE FCC RoHS Bluetooth Serial Module WT51822-S4 NRF51822
Brand: original
SKU: 112095843
Availability: InStock

Shenzhen Xiongfengke Electronics Co., Ltd. Gold Verified Supplier

5Yrs

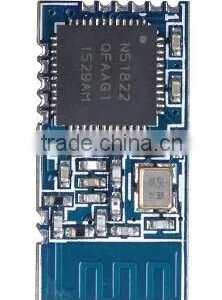

Nordic Beacon WT51822 S4AT With CE FCC RoHS Bluetooth Serial Module WT51822-S4 NRF51822 thumbnail-1

Nordic Beacon WT51822 S4AT With CE FCC RoHS Bluetooth Serial Module WT51822-S4 NRF51822 photo-1

US$ 0.8 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Antigua and Barbuda

Brand Name:

original

Model Number:

WT51822-S4

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Antigua and Barbuda

Brand Name original

Model Number WT51822-S4

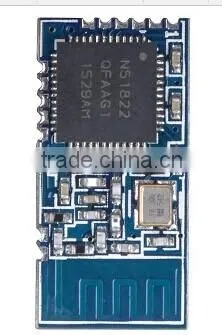

WT51822-S4AT Bluetooth module radio transmit and receive system module Micro low energy Nordic le beacon nrf51822

WT51822-S4AT nordic n51822 beacon profile:

WT51822-S4AT is a high performance ,low power radio transmit and receive system module use Nordic BLE 4.0
nRF51822 as the controller chips. It has the smallest volume package in the industry, the size is 18.5*9.1*2.0,

suitable for most applications which pay more attention to the size. The module integrate the complete standard low
energy Bluetooth 4.0 protocol stack S100 drive. Customer's MCU is connected to the module by UART
port, it will automatically send a broadcast code after the module starts. As the master, APP device can scan and
search the broadcast from module in order to establish the connection. After success, it can conduct two-way
communication link with mobile device APP by serial port. Through UART interface, the user can exchange data or
control the communication parameters of module. The meaning of data is defined by the upper application
user. The mobile device can operate to the module through APP, the data will receive by the module and
pushed through UART MCU. After the module received a data packet from the client MCU serial port, it will
be automatically forwarded to the mobile device.

WT51822-S4AT nordic n51822 beacon features:

CPU: nRF51822-QFAA (ARM Cortex™-M0 32 bit processor)
Memory: 256KB flash + 16KB RAM memory
Transparent transmission (Bridged method) easy to use and fast, no Bluetooth protocol stack
development experience can use too.
The user interface uses a standard UART (TTL) Interface, bidirectional data read, easy to operate.
Supports serial AT commands, the user can modify the basic parameters like the serial port baud rate,
name, MAC address of the module, etc.

Application Examples of nRF51822-04AT nordic n51822 beacon Module

1. Accessibility BLE-DK, nRF51822-DK is tool designed for easy use its Wireless-Tag BLE Bluetooth
WT51822-S1/S2/S4. You can easily connect the Bluetooth module with PC through the nRF51822-DK.
The Bluetooth module works as slave device, can be searched and matched by Bluetooth master
terminal. After matched, input the data to Bluetooth module via serial port debugging tools and the
Bluetooth module resent the data to the master module; at the same time, the Bluetooth module can
send the data received from the master module to the serial port debugging tools.
Developers can easily check the data content between the Bluetooth module and the master terminal.
2. The connection method of DEMO-Kit Tools and Bluetooth module: DEMO-Kit Tools interface is the
currently popular XBee interface. Bluetooth module connect with Kit Tools by XBee adapter board.
Welding the module posted in the corresponding XBee adapter board, and then inserted the adapter
board into the Kit tools.

WT51822-S4AT nordic n51822 beacon Pin Definition
