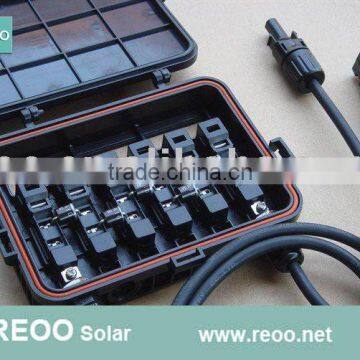

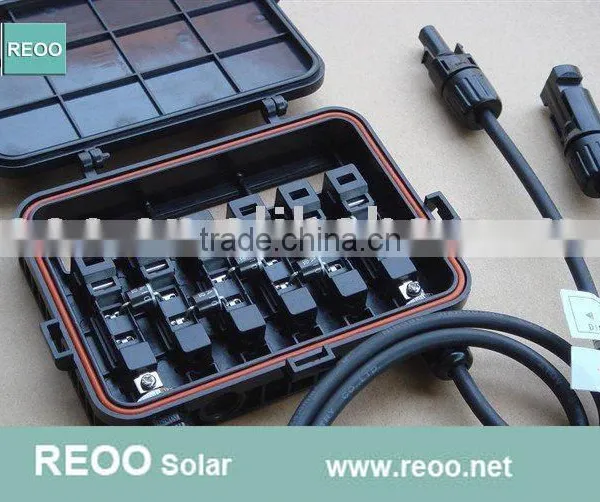

Help CenterWaterproof Junction Box IP65 With MC4 Connector
Related Products
-
REOO China Supply EVA FILM for Solar PanelUS$ 1.2 - 1.4MOQ: 2000 Meters -
REOO China EVA FILM for Manufacturing Solar PanelUS$ 25 - 35MOQ: 1 Roll
-
REOO Solar Panel Raw Material and Solar Cell and PV Junction Box Supplier's ChoiceUS$ 5,000 - 6,500MOQ: 1 Set
-
Hot Selling Photovoltaic Solar Panel High Quality EVA FilmUS$ 1.38 - 1.42MOQ: 10 Square Meters
-
Aluminum Frame for Soalr PanelUS$ 9.8 - 9.85MOQ: 100 Sets
Specifications
1.Suitable current: 3A~15A
2. With MC4 compatible connector
3.TUV, IP65
Specifications:
We have all kinds of solar panel junction boxes for different panels.
You can choose the junction boxes from the following 3 aspects:
1. How many rails do you need about the junction boxes?
2. What is your current requirements about the junction boxes?
3. Do you need cables and connectors to be assemblied with them?
Technical data | |
Insulation material |
PPO |
Contact material |
Copper, tin plated |
Rated current |
3A~15A |
Rated voltage |
1000V(TUV) 600V(UL) |
Contact resistance |
0.4 mΩ |
Degree of protection |
IP65 |
Ambient temperature range |
-40°C-90°C |
Flame class |
UL94-V0 |
Safety class |
II |
Pin dimensions |
Φ4mm |
Plug Force |
less than 50N |
Withdrawal force |
More than 50N |
Suitable cable |
2.5~6.0mm AWG 14/12/10 |
Advantages:
1. Eligible PPO material, has marvelous performance of high-low temperature, fireproof, anti-ultraviolet rays and applied to the long-time operation outside
2.The assembly process is convenient, safe, easy and firm.
3.With big current and high voltage load capability
4.Our connector is with the lowest contact resistance:0.4mΩ, which enable it to work more efficiently and more power-saving
Installation
We send engineer or technicians to buyers factory to install machine.
All expenditure on travel, food, accommodation and transportation of our engineers/ technicians for installation will be borne by buyer.
REOO company borne the salary of engineer.
Training
We supply both overseas and local training to the engineers and technicians on operation and maintenance.
buyer borne air tickets, lodging, food and training material .
Minimum 12 (twelve) months warranty of all products and services .
guarantee for the spares and required maintenance or replacement support are to be provided . Buyer borne the cost of the material for parts of maintenance.
Backup spares:
We supply essential backup spares. items beyond warranty periods, buyer borne the cost.
Why buy solar panel production line from REOO technology ?
We have more experience for design, manufacturing, packing, shipping, installation, training, trial production in all of world.
We have more than 10 years experience for manufacture and export solar panel machines
Our engineer can install all of machines for making solar panel.
Our engineer can supply best technology.
We can train for all of machines.
We supply all tools and accessories for production, It is difficult be purchased in other countries. and these tools is free, Do not need money.
We can supply all of raw material for manufacture solar panel in good quality and lower price.
Please look the video from by REOO solar.
We can supply technical documents for apply TUV certificated. It is free.
