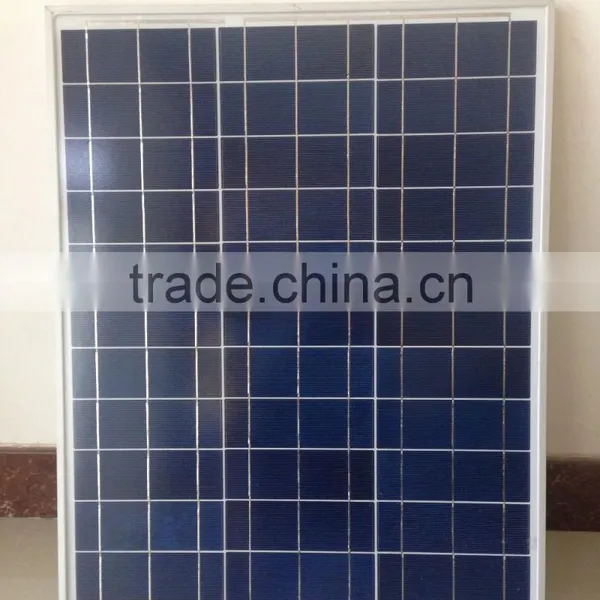

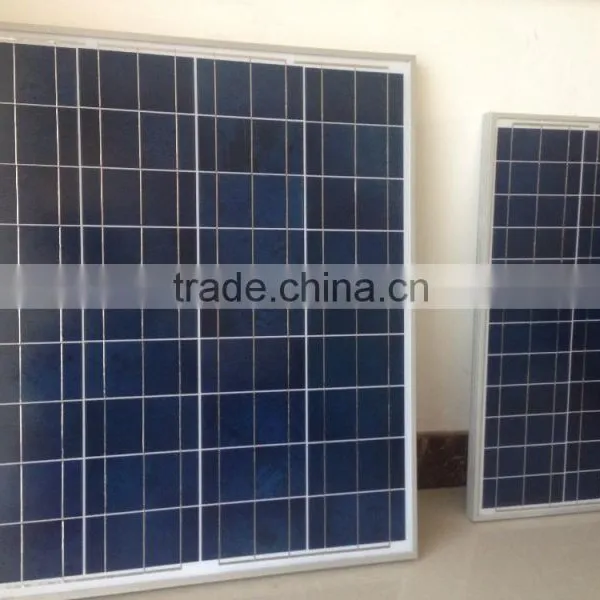

Help CenterREOO Mono Cystalline Solar Panel High Quality Lower Investment Solar Cells Quality Choice
Related Products
-
Mono-crystalline Solar PanelsUS$ 1.48 - 1.8MOQ: 100 Pieces -
Mono-crystalline Solar PanelsUS$ 1.48 - 1.8MOQ: 100 Pieces
-
REOO Poly or Mono-crystalline Solar Panels With Easy OperationUS$ 0.45 - 0.48MOQ: 100 Watts
-
REOO Solar Panel PV Module High Efficiency Easy InstallationUS$ 0.45 - 0.48MOQ: 100 Watts
-
Solar Cell Tester for Testing Solar Cell Watt Power,manufacturer Price Quality ChoiceUS$ 10000.00 - 10000.00MOQ: 1 Set

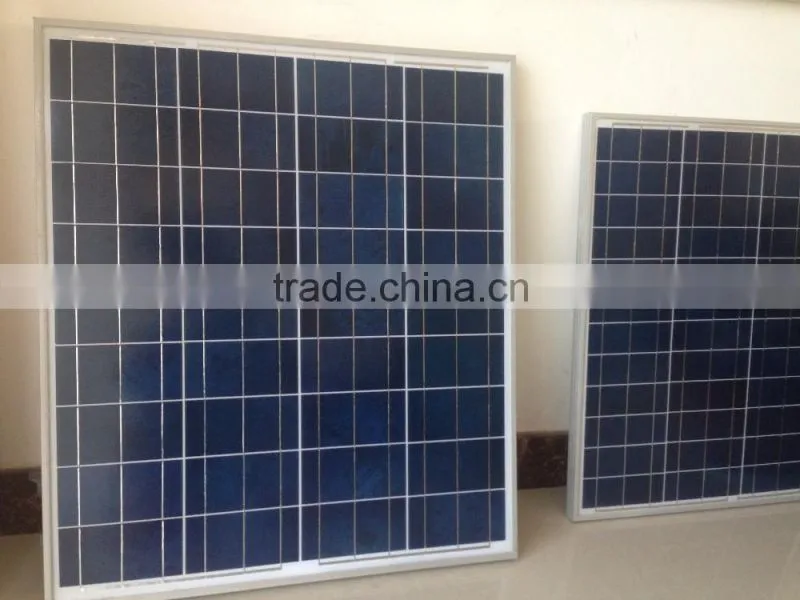

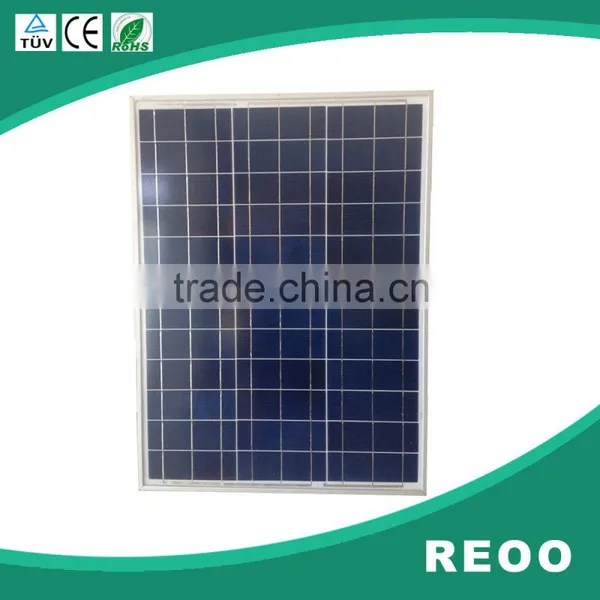

Solar Cell 36 Poly or mono-crystalline 156×156mm |
Frame Anodized aluminium |
Weight 12kg |
Dimension 1483×665×35mm |
Module Type | RO 110-12 | RO 110-12 | RO 110-12 | RO 110-12 |
|
Nominal peak power(Wp) | 130W | 120W | 110W | 100W | |
Nominal voltage(Vmp) | 17.2V | 17.2V | 17.2V | 17.2V | |
Nominal current(Imp) | 7.56A | 6.98A | 6.40A | 5.81A | |
Open circuit voltage(Voc) | 21.60V | 21.60V | 21.60V | 21.60V | |
Short circuit current(Isc) | 8.02A | 7.50A | 6.98A | 6.61A | |
Module efficiency | 13.2% | 12.2% | 11.2% | 10.2% | |
Operating Temperature | -40oC to +85oC | -40oC to +85oC | -40 oCto +85oC | -40 oCto +85 | |
Maximum System Voltage | 1000V DC | 1000V DC | 1000V DC | 1 000V DC |
STC:1000W/m²,25
Product Features
1 Designed according to and complying with all requirements in IEC 61730 and IEC 61215 ed2(certified by TUV Rheninland);
2 White tempered glass,EVA ,weather proof substrate fim and anodized aluminium frame provide adequate protection against various environmental conditions
3 All backed by a 25 year limited power warranty(≥80%)and 2 year workmanship warranty
4 Customization on request
5 Cells are 100% visual inspected and sorted according to electric characters against mismatching
6 Visual inspection,performance measurement and dielectric strength tests on every product
7 The junction box and connectors with IP 65 protection degree provide convenient reliable electric connection;The incorporated schottky bypass diodes protect the module from hot spot damages

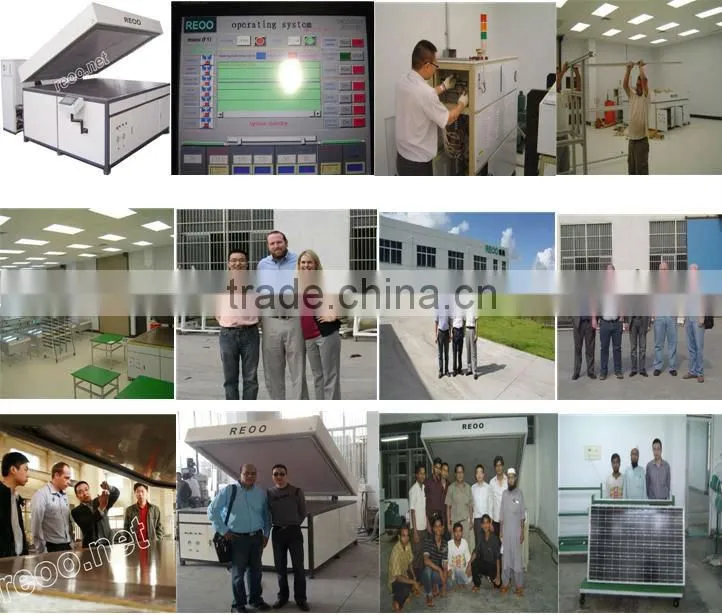

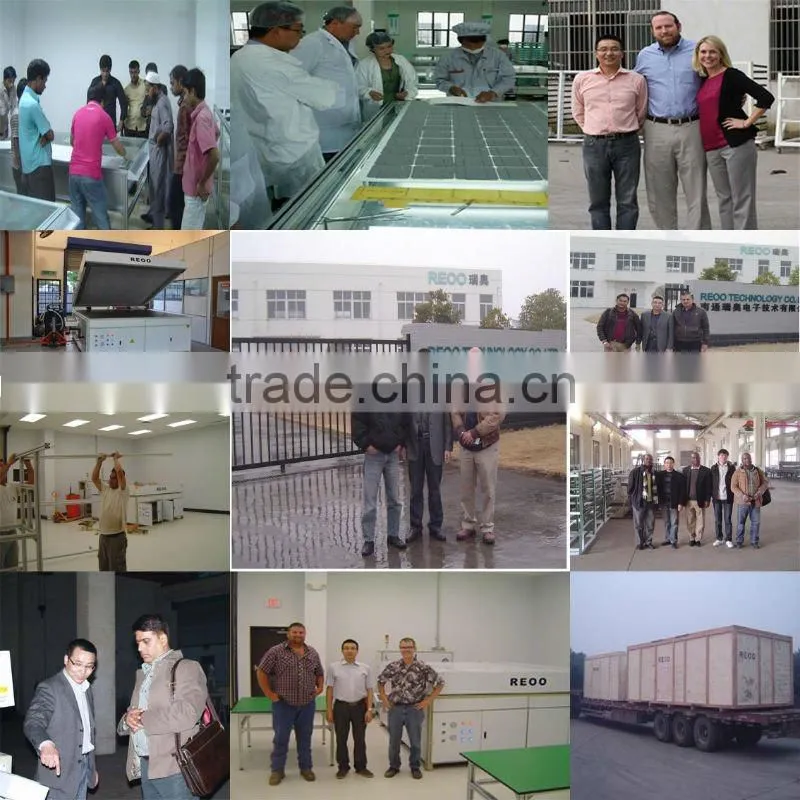

Installation
We send engineer or technicians to buyers factory to install machine.
All expenditure on travel, food, accommodation and transportation of our engineers/ technicians for installation will be borne by buyer.
REOO company borne the salary of engineer.
Training
We supply both overseas and local training to the engineers and technicians on operation and maintenance.
buyer borne air tickets, lodging, food and training material .
Minimum 12 (twelve) months warranty of all products and services .
guarantee for the spares and required maintenance or replacement support are to be provided . Buyer borne the cost of the material for parts of maintenance.
Backup spares:
We supply essential backup spares. items beyond warranty periods, buyer borne the cost.

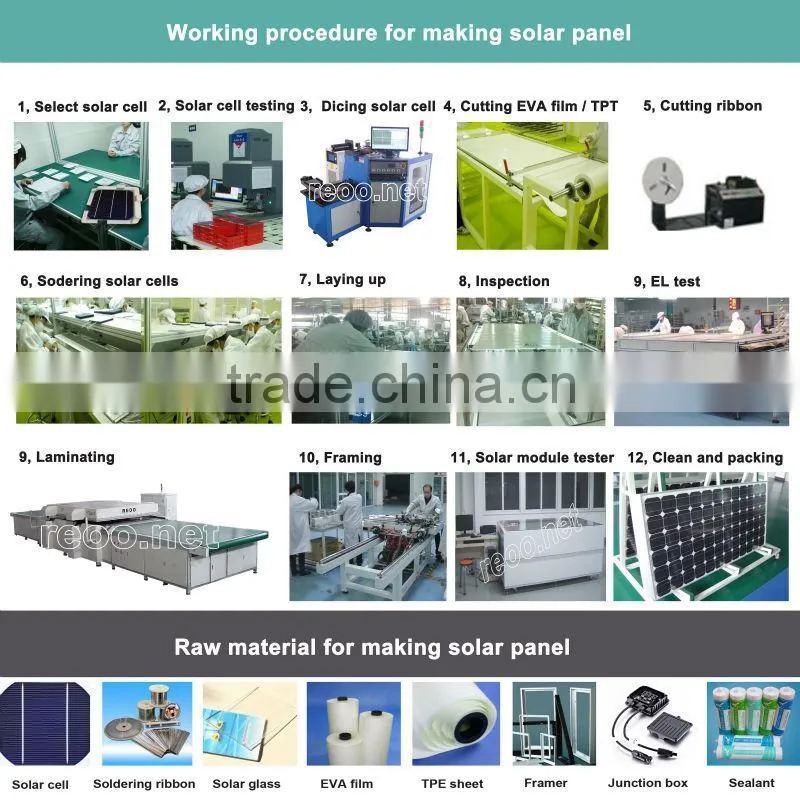

Why buy solar panel production line from REOO technology ?
We have more experience for design, manufacturing, packing, shipping, installation, training, trial production in all of world.
We have more than 10 years experience for manufacture and export solar panel machines
Our engineer can install all of machines for making solar panel.
Our engineer can supply best technology.
We can train for all of machines.
We supply all tools and accessories for production, It is difficult be purchased in other countries. and these tools is free, Do not need money.
We can supply all of raw material for manufacture solar panel in good quality and lower price.
Please look the video from by REOO solar.
We can supply technical documents for apply TUV certificated. It is free.
| Mr.Simon Sun NANTONG REOO TECHNOLOGY CO.,LTD. Add: Chennan industrial park, Rudong, Jiangsu, Chima PC226400 Tel: 86 513 8410 5399 Fax: 86 513 8410 5505 Skype: reoolisa WhatsApp: 0086 188 629 38063 |
