Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Cell > Mono-crystalline Solar Panels

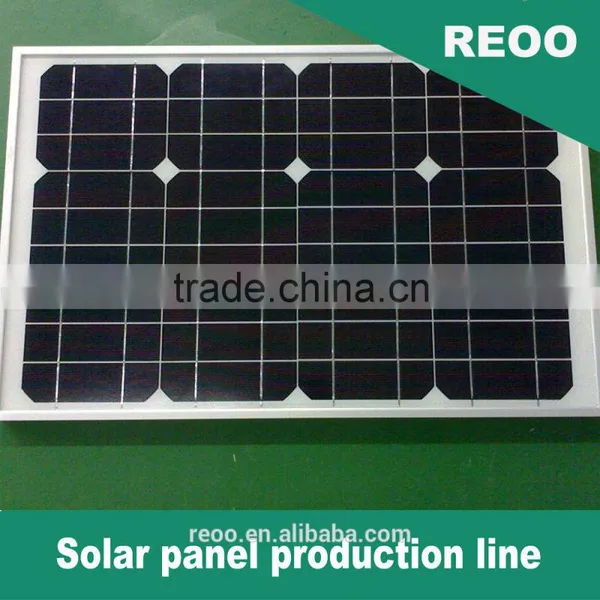

Mono-crystalline Solar Panels

Name: Mono-crystalline Solar Panels
Brand: REOO
SKU: 112091101
Availability: InStock

Mono-crystalline Solar Panels thumbnail-1

US$ 1.48 - 1.8 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

REOO

Model Number:

RO 040

Contact Supplier Request Quote Chat Now

Nantong Reoo Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name REOO

Model Number RO 040

Material Monocrystalline Silicon

Size 634*534*35mm

Number of Cells 72pcs

Max. Power 300W

Temperature Coefficients

NOCT 45+/-2 ^oC

Voltage temperature coefficient(Voc) -0.36%/ ^oC

Current temperature coefficient(Isc) +0.033%/ ^oC

Power temperature coefficient(Pmpp) -0.44%/ ^oC

Minimum power tolerance +/-10%^oC

NOCT: Nominal Operating Cell Temperature

Mechanical Data

Solar Cell	Mono-crystalline 156×156mm
Frame	Anodized aluminium
Weight	4kg
Dimension	634×534×35mm

Warranty and certifications

Warranty 3 years workmanship,10 years90%,25 years 80% power warranty

Certifications TUV , CE

Electrical Data

Module Type	RO 043-12	RO 040-12	RO 038-12
Nominal peak power(Wp)	43W	40W	38W
Nominal voltage(Vmp)	17.2V	17.2V	17.2V
Nominal current(Imp)	2.50A	2.33A	2.20A
Open circuit voltage(Voc)	21.6V	21.6V	21.6V
Short circuit current(Isc)	2.84A	2.65A	2.51A
Module efficiency	12.7%	11.9%	11.3%
Operating Temperature	-40 to +85^oC	-40 to +85^oC	-40 to +85 ^oC
Maximum System Voltage	1000V DC	1000V DC	1000V DC

STC:1000W/m²,25

Product Features:

1 Designed according to and complying with all requirements in IEC 61730 and IEC 61215 ed2(certified by TUV Rheninland);

2 White tempered glass,EVA ,weather proof substrate fim and anodized aluminium frame provide adequate protection against various environmental conditions

3 All backed by a 25 year limited power warranty(more than 80%)and 2 year workmanship warranty

4 Customization on request

5 Cells are 100% visual inspected and sorted according to electric characters against mismatching

6 Visual inspection,performance measurement and dielectric strength tests on every product

7 The junction box and connectors with IP 65 protection degree provide convenient reliable electric connection;The incorporated schottky bypass diodes protect the module from hot spot damages

Our Services

Installation
We send engineer or technicians to buyers factory to install machine.

All expenditure on travel, food, accommodation and transportation of our engineers/ technicians for installation will be borne by buyer.

REOO company borne the salary of engineer.

Training
We supply both overseas and local training to the engineers and technicians on operation and maintenance.

buyer borne air tickets, lodging, food and training material .
Minimum 12 (twelve) months warranty of all products and services .

guarantee for the spares and required maintenance or replacement support are to be provided . Buyer borne the cost of the material for parts of maintenance.

Backup spares:

We supply essential backup spares. items beyond warranty periods, buyer borne the cost.
