Easy Operation IP67 Electrical Copper Wire Quick MC4 Solar Connector

Name: Easy Operation IP67 Electrical Copper Wire Quick MC4 Solar Connector
Brand: REOO
SKU: 112089425
Availability: InStock

US$ 0.6 - 0.8 MOQ: 100 Pairs

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

REOO

Model Number:

RO-1

Nantong Reoo Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name REOO

Model Number RO-1

Type Other, MC4 connector

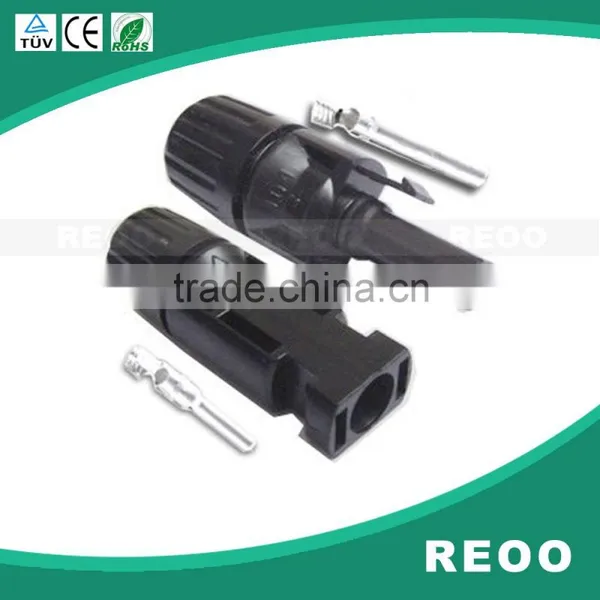

MC4 Solar power cable connector

The advantage of REOO Solar connector

1, Polycarbonate raw material, Not PPO.

2, Ultrasonic hot melting , Most company use fixing clip.

3, Manufacturer price.

Item	RO-1 solar cable connector
Compatible:	MC4 solar connector
Insulation material:	PC
Rated current :	30A
Rated voltage:	1500V
Test voltage :	6000V(50Hz,1Min)
Contact material :	Copper Tin plated
Contact resistance:	5mΩ
Degree of protection :	IP67
Safety class:	2
Flame class:	UL94-V0
Insertion force :	≤50N
Withdrawal force :	≥50N
Ambient temperature range :	-40 degree to +90 degree
Connector diameter :	4mm
Compatible cable cross sections :	solar cable 4.0mm2 and 6.0 mm2
Suitble cable :	2.5-6.0mm2 AWG 14/12/10
Be used for:	Connecting PV cable
characteristic	High insulation,Big tension,Fast integration

REOO Connector use PC raw material, It is top quality.

Package

Male house	100 pcs / PE bag. 10 bag / carton, also 1000 Pin/carton
Female house	100 pcs / PE bag. 10 bag / carton, also 1000 Pin/carton
Measure	380290470 mm/carton
Net weight	34 kg / carton
Gross weight	35.5 kg / carton
