Help CenterPV,Solar Application and MC3 Type Connector From REOO Solar Connector Manufacturer
Related Products
-
2016 REOO Solar Connector MC3 Tyco Solar Connector With TUV/ULUS$ 0.7 - 1.4MOQ: 100 Pairs -
2016 REOO Popular Sale Solar Crimping Tool for Solar Cable and ConnectorsUS$ 32 - 37MOQ: 10 Pieces
-
REOO IP67 Mc4 Cable Solar Connecor PV Solar Panel Extension CableUS$ 0.6 - 1.2MOQ: 100 Meters
-
MC4 Y Type Terminal PV Connector the Raw Material OptionalUS$ 3 - 4.5MOQ: 1 Pair
-
Solar Junction Box Mc4 Connector for PV Module Factory PriceUS$ 2.6 - 3.5MOQ: 100 Pairs
Solar power cable connector
MC4 Solar power connector
Raw material |
Used for |
Price |
Characteristic |
|
PPO PX9406P-7001 |
Junction box |
Lower |
Most of company use it for junction box. |
|
PPO 540Z |
Junction box |
Lower |
Lower price |
|
PPO V0150B |
Junction box |
Middle |
RTI higher than PX9406P |
|
PPO 644Z |
Junction box |
Middle |
Good quality for junction box |
|
PA66 FR7025 |
Connector nut |
Middle |
Most of company use it for connector |
|
PA66 FR370 |
Connector nut |
Middle |
Most of company use it for connector |
|
PC EXL9330 |
Connector house |
Expensive |
Top quality. |
Item |

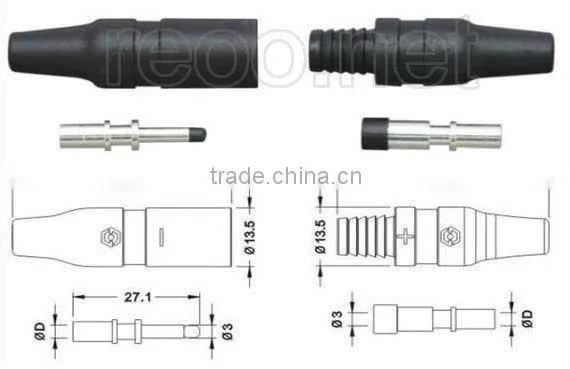

RO-2 solar PV cable connector |
Compatible: |
MC3 Solar connector |
Insulation material: |
TPE/PA |
Rated current : |
25A |
Rated voltage: |
1000V |
Test voltage : |
6000V(50Hz,1Min) |
Contact material : |
Copper Tin plated |
Contact resistance: |
5mΩ |
Degree of protection : |
IP65 |
Safety class: |
2 |
Flame class: |
UL94-V0 |
Insertion force : |
≤50N |
Withdrawal force : |
≥50N |
Ambient temperature range : |
-40 degree to +90 degree |
Connector diameter : |
4mm |
Compatible cable cross sections : |
solar cable 4.0mm2 and 6.0 mm2 |
Suitble cable : |
2.5-6.0mm2 AWG 14/12/10 |
Be used for: |
Connecting solar PV cable |
characteristic |
High insulation, Fast integration |
Drum-type material metal connectors, the plugs and minus connector are used with the cable, made of PA material, easy to connector with each other. It is the important and indispensable components for photoelectric system.
Package
Male house |
100 pcs / PE bag. 10 bag / carton, also 1000 Pin/carton |
Female house |
100 pcs / PE bag. 10 bag / carton, also 1000 Pin/carton |
Measure |
380*290*470 mm/carton |
Net weight |
34 kg / carton |
Gross weight |
35.5 kg / carton |
