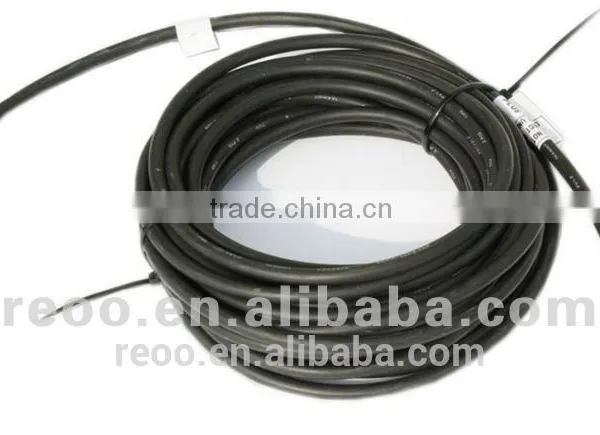

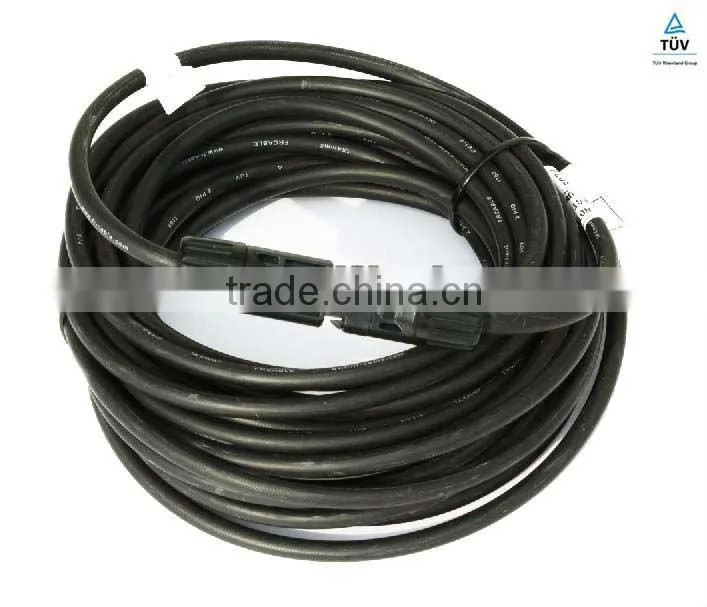

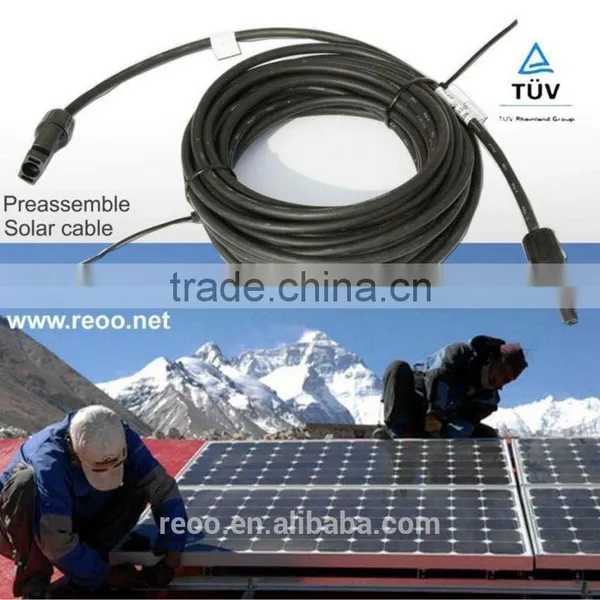

Help CenterREOO IP67 Mc4 Cable Solar Connecor PV Solar Panel Extension Cable
Related Products
-
MC4 Y Type Terminal PV Connector the Raw Material OptionalUS$ 3 - 4.5MOQ: 1 Pair -
Solar Junction Box Mc4 Connector for PV Module Factory PriceUS$ 2.6 - 3.5MOQ: 100 Pairs
-
REOO 2016 Solar Junction Connector MC3 T Branch Cable ConnectorUS$ 1 - 1.5MOQ: 100 Pairs
-
New High Quality MC4 Adapter PV Connectors for Solar Cells PanelsUS$ 2.5 - 4.5MOQ: 100 Pairs
-
2016 REOO NEW MC3 Solar Adapter Connector With TUVUS$ 0.7 - 1.4MOQ: 100 Pairs
Solar Cable
Main feature:
1.Temperature range for application -40°C up to 90°C, max.temperature at conductor 120°C
2.Electron beam cross-linked material does not melt or flow at high temperatures
3.The permitted short-circuit-temperature refer to a period of 5s is 200°C
4.High resistance against UV,ozone and hydrolysis
5.Flexible,easy to strip
6.Dual wall insulation.Electron beam cross-linked
7.Excellent resistance to U.V,oil,greases,oxygen and ozone
8.Excellent resistance to abrasion
9.Halogen free, flame retardant,low toxicity
10.Excellent flexibility and stripping performance
11.High current carring capacity
| Cross section | Conductor | Conductor stranded | Cable OD. | Conductor Max. Resistance | Current Aarring Capacity |
| (mm2) | construction | OD.(mm) | (mm) | AT 20°C( Ω/km) | AT 60°C(A) |
| (n/mm) | |||||
| 1x1.5 | 30/0.25 | 1.58 | 4.9 | 13.3 | 30 |
| 1x2.5 | 49/0.25 | 2.02 | 5.45 | 7.98 | 41 |
| 1x4.0 | 56/0.30 | 2.6 | 6.1 | 4.95 | 55 |
| 1x6.0 | 84/0.30 | 3.42 | 7.2 | 3.3 | 70 |
| 1x10 | 84/0.40 | 4.56 | 9 | 1.91 | 98 |
| 1x16 | 128/0.40 | 5.6 | 10.2 | 1.21 | 132 |
| 1x25 | 192/0.40 | 6.95 | 12 | 0.78 | 176 |
| 1x35 | 276/0.40 | 8.74 | 13.8 | 0.554 | 218 |

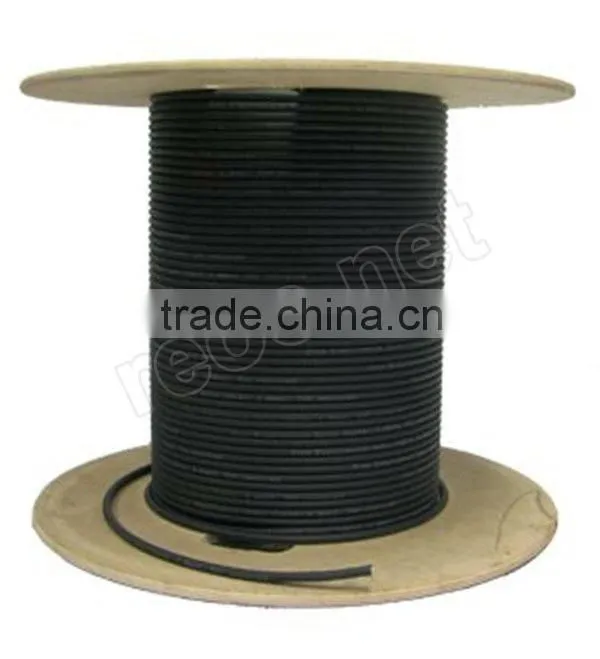

| pachkage | 1. 250 meter a roll |
| 2. 2 roll in a carton | |
| 3. Carton dimension:42cm*42cm*21cm | |
| 4. Net weight:35kg | |
| 5. Gross weight:36kg |
| Shipment | 1. We ship to world wide |
|
2. Most orders ship within 1-7 business days on payment received(except holiday) | |
|
3.Item shipped from China mainland using airmail by EMS,UPS,DHL, TNT or Hong kong Post Office, reach most of the countries within 6 to 14 business days. | |
|
4. Delivery time depends on destination and other factors,it may takes up to 20 business days. | |
|
5.After we ship the item,we will email you the shipping information, as well as the tracking number | |
|
6.If it happens to be any duties,taxes and any other fees charged by the courier company and your respective country,the buyers are duty to pay. |
