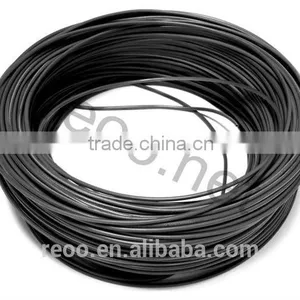

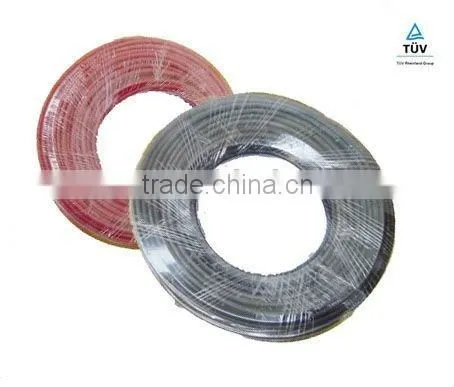

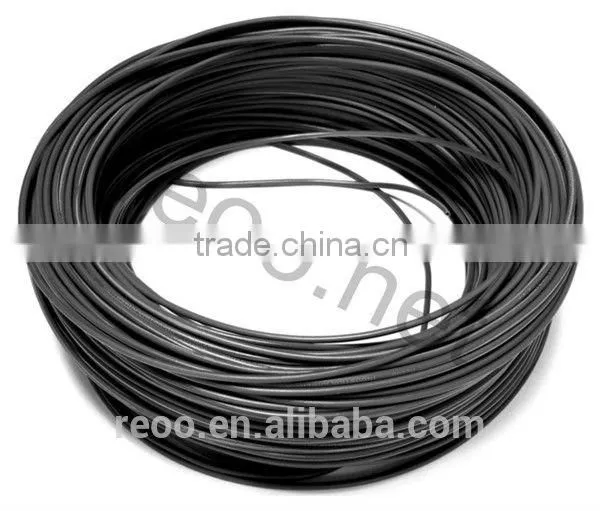

Help Center2.5mm2~6.0mm2 Solar PV Cable,suitable for Solar Power System,rated Current From 20A~140A
Related Products
-
MC3 Connector Male and Female Adapter TUV Photovoltaic ConnectorUS$ 0.7 - 1.4MOQ: 100 Pairs -
MC4 Solar Hand Crimping Tool for Solar Power ConnectorUS$ 32 - 37MOQ: 10 Pieces
-
HOT Sale MC4 Y TYPE PV Branch Solar Connector From REOO SolarUS$ 2.55 - 4.5MOQ: 100 Pairs
-
PV Junction Box REOO PV Junction Box Solar Junction BoxUS$ 2.6 - 2.7MOQ: 100 Pieces
-
High Quality 2016 Newest Ip67 Waterproof Solar pv Junction Box Connector Mc4 for Solar Panel MountUS$ 2.6 - 4.5MOQ: 100 Pairs
TUV approval solar DC cable
| Main features | |
| 1 |
High thermolysis efficiency
|
| 2 |
High quality with anti-dust, anti-UV&anti-aging
|
| 3 |
High resistance against oil, steam, bacteria&ozone
|
| 4 |
Creative technique for conductivity
|
| 5 |
Temperature range for applications -40°C~+120°C
|
| 6 |
Short circuit resistance up to +280
|
| 7 |
Electron beam cross-linked materials do not melt or flow,even at high temperatures
|
| 8 |
High resistance again heat, clod,abrasion,UV,ozone and hydrolysis
|
| 9 |
Very high mechanical robustness and resistance against water,oil and chemicals
|
| 10 |
Flexible, easy to strip
|
| 11 |
Halongen free, High flame retardant
|
| 12 |
TUV Rheinland approval
|
| 13 |
double insulated covering, electron heam, cross linked
|
| 14 |
It can be used for off-grid and grid connected PV System
|
|
Cross section (mm2) |
Conductor construction (n/mm) |
Conductor stranded OD.(mm) |
Cable OD. (mm) |
Conductor Max.Resistance AT 20°C( Ω/km) |
Current Aarring Capacity AT 60°C(A) |
1x1.5 |
30/0.25 |
1.58 |
4.90 |
13.3 |
30 |
1x2.5 |
49/0.25 |
2.02 |
5.45 |
7.98 |
41 |
1x4.0 |
56/0.30 |
2.60 |
6.10 |
4.95 |
55 |
1x6.0 |
84/0.30 |
3.42 |
7.20 |
3.30 |
70 |
1x10 |
84/0.40 |
4.56 |
9.00 |
1.91 |
98 |
1x16 |
128/0.40 |
5.60 |
10.20 |
1.21 |
132 |
1x25 |
192/0.40 |
6.95 |
12.00 |
0.780 |
176 |
1x35 |
276/0.40 |
8.74 |
13.80 |
0.554 |
218 |
|
Package |
1.250 meter a roll |
| 2.2 roll in a carton | |
| 3.Carton dimension:42cm*42cm*21cm | |
| 4.Net weight:35kg | |
| 5.Gross weight:36kg | |
|
Shipment
|
1.we ship to world wide |
| 2.Most orders ship within 1-7 business days on payment received(except holiday) | |
3.Item shipped from China mainland using airmail by EMS,UPS,DHL,TNT or Hong kong Post Office, reach most of the countries within 6 to 14 business days. | |
| 4.Delivery time depends on destination and other factors,it may takes up to 20 business days. | |
| 5.After we ship the item,we will email you the shipping information,as well as the tracking number | |
6.If it happens to be any duties,taxes and any other fees charged by the courier company and your respective country,the buyers are duty to pay. | |
REOO Technology Co.,Ltd., is expert at a wide range of solar panel production lines, solar panel connectors, solar panel cables connectors as well as solar power system. We provide one package service, including design, producing, export, site installations and technical guidance and after-sale service as well.
Our factory is located in Nantong, Jiangsu province of China. It is 2 hours to Shanghai by vehicle. REOO together with SUNTECH, HANWA SOLAR, and QS SOLAR bring the technologic innovation superiority of the industrial cluster into full play.
Our senior technicians are familiar with ISO quality management system, and have strong sense of continuous improvement and responsibility. Our products enjoy competitive price, and have a ready market in USA, South Amercian, Europe, Australia, UK, Spain, Korea, Japan, Malaysia, India, Bangladesh, Vietnam and so on.
Please feel free to contact us if you are looking for a trustworthy source of solar panel machines and accessories. We take superior technical support and customer service as our integral parts of our offering. Any of your enquiries will be highly concerned and will be dealt with immediately. Your satisfaction of our products and services will be guaranteed.
|
