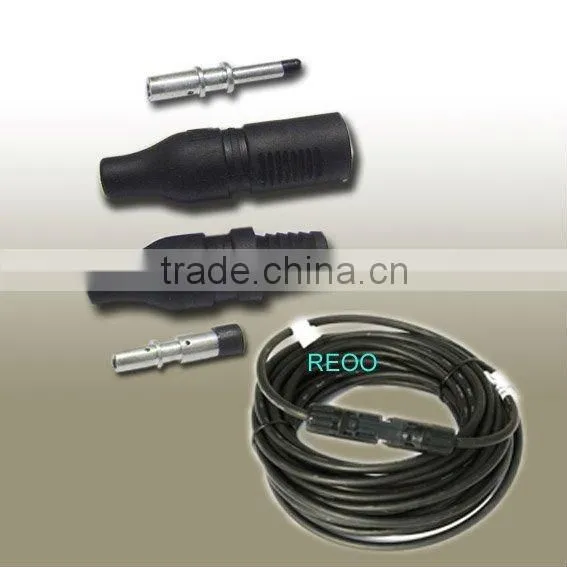

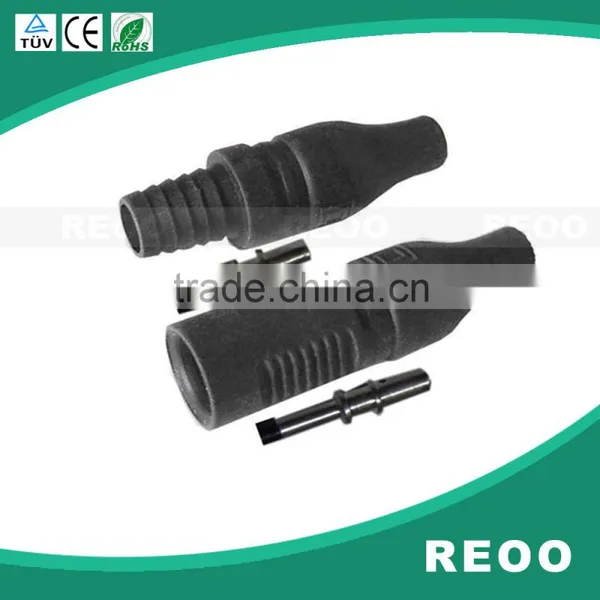

Solar power cable connector
The advantage of REOO Solar connecto
PV solar connectors is a kind of pluggable connectors for PV module, with quick assembly, easy handling and high conductivity connection.
The PV solar connectors can easily be connected cables or junction boxes by using a multifunctional tool specifically developed for these connectors in usage with our junction boxes and cables, it’s a safety connection system for Photovoltaic
Item |
RO-2 solar PV cable connector |
Compatible: |
MC3 Solar connector |
Insulation material: |
TPE/PA |
Rated current : |
25A |
Rated voltage: |
1000V |
Test voltage : |
6000V(50Hz,1Min) |
Contact material : |
Copper Tin plated |
Contact resistance: |
5mΩ |
Degree of protection : |
IP65 |
Safety class: |
2 |
Flame class: |
UL94-V0 |
Insertion force : |
≤50N |
Withdrawal force : |
≥50N |
Ambient temperature range : |
-40 degree to +90 degree |
Connector diameter : |
4mm |
Compatible cable cross sections : |
solar cable 4.0mm2 and 6.0 mm2 |
Suitble cable : |
2.5-6.0mm2 AWG 14/12/10 |
Be used for: |
Connecting solar PV cable |
characteristic |
High insulation, Fast integration |
REOO Connector use PC raw material, It is top quality.
Male house |
100 pic /PE bag. 10 bag/carton, also 1000 Pin |
Female house |
100 pic /PE bag. 10 bag/carton, also 1000 Pin |
Measure |
380*290*470 mm/ carton |
Net weight |
34 kg / carton |
Gross weight |
35.5 kg / carton |
|
