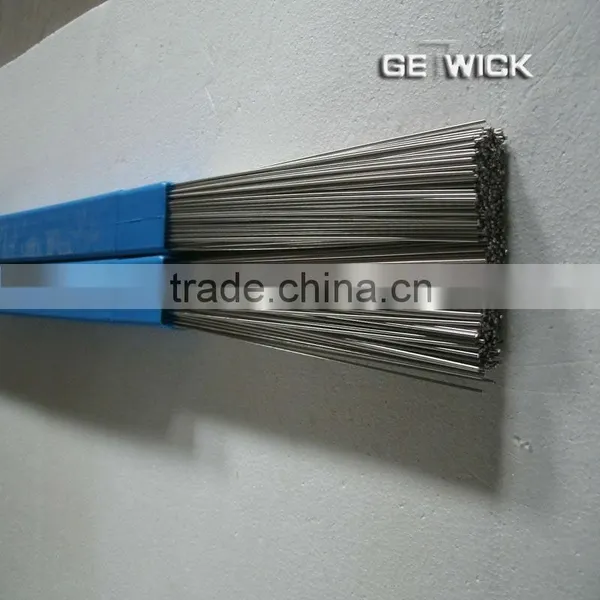

Titanium Welding Wire
US$ 32 - 84
MOQ: 50 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
GETWICK
Model Number:
GR1, GR2, GR5, GR9etc.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Shanghai/Hong Kong/Xi'an/Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shaanxi, China
Brand Name
GETWICK
Model Number
GR1, GR2, GR5, GR9etc.
Application
Industrial
Wire Gauge
Dia.0.05mm min.
Grade
Titanium 99.5%min.
Ti (Min)
99.5%min.
Strength
280-440MPa
Specifications
Titanium Welding WireStandard:ASTM B386
Grade: GR1, GR2, GR5etc.
Diameter: 0.05mm min.
Different sizes are available
Titanium Welding Wire
Standard:ASTM B386
Grade: GR1, GR2, GR5etc.
Diameter: 0.05mm min.
Payment Terms: By T/T 30% in advance and the rest before the shipment.
Packages: Standard wooden packages
Different sizes are available
The diameter tolerances for titanium wires
diameter |
>0.5mm-1.0mm |
>1.0mm-2.0mm |
>2.0mm-4.0mm |
>4.0mm-8.0mm |
tolerances |
-0.06mm |
-0.08mm |
-0.10mm |
-0.14mm |
Chemical composition for titanium wires
Material |
Impurities content,Not more than,% |
|||||||
Ti |
Fe |
C |
N |
H |
O |
Residual elements, |
||
single |
total |
|||||||
Gr1 |
allowance |
0.20 |
0.08 |
0.03 |
0.010 |
0.18 |
0.10 |
0.40 |
Gr2 |
allowance |
0.30 |
0.08 |
0.03 |
0.010 |
0.25 |
0.10 |
0.40 |
Gr3 |
allowance |
0.30 |
0.08 |
0.05 |
0.010 |
0.35 |
0.10 |
0.40 |
Gr4 |
allowance |
0.50 |
0.08 |
0.05 |
0.010 |
0.40 |
0.10 |
0.40 |
