Help CenterCeramic Infrared Heaters
US$ 2 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Infrared Heater
Power Source:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
MUMBAI PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Infrared Heater
Power Source
Electric
Brand Name
Anupam
Model Number
Anupam
Dimension(L*W*H)
Customized
Weight
As per Dimensions
Voltage
Customized
Power(W)
Customized
Certification
CE Certification Available
Warranty
One Year Against Manufacturing Defects
After-sales Service Provided
No overseas service provided
Product Description
The element wire, of ceramic infrared heater, is embedded in glazed refractory which protects the wire from atmosphere to get longer life. In normal operating condition the life of the heater for most application would be well in excess of 10,000 hrs. Of 80% power. These are available with built in or without thermocouple J or K Type in yellow as well as white colours.

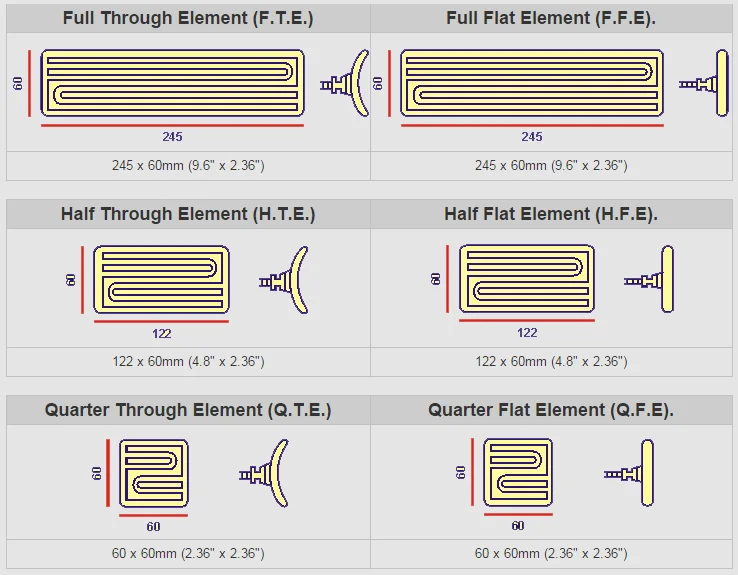

Standard Elements With Dimensions

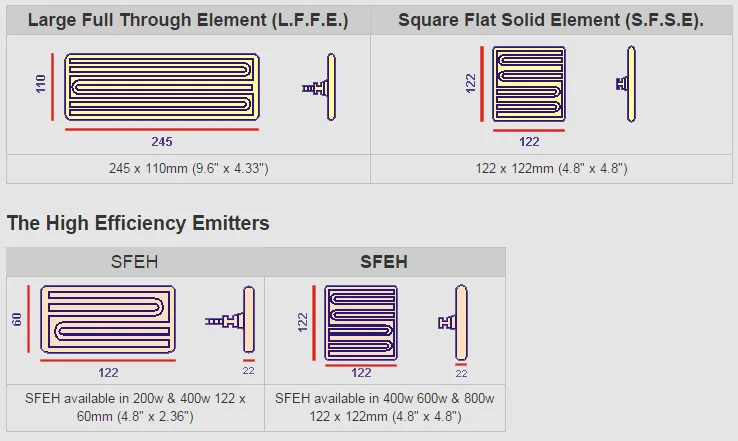

The SFEH is available in a range of power ratings and voltages. The universal ceramic mounting "boss" allows it to be easily interchanged with a conventional emitter in an existing installation.
Applications
- Plastic Industries: --> Thermoforming & Vacuum Forming for plastification of Sheets / rolls. Lamination and welding of Plastic. Curing / Shrinking Of PVC Paste.
- Rubber Industries: --> Preheating & vulcanizing of rubber Sheets. Preheating of Synthetic Pipes Before Coupling.
- Textile Industries: --> Drying Of finished Textile / Garments / Carpets. Setting of Nylon & Perlon Threads.
- Paper Industries: --> Drying of Paper Pulp, Drying of Paper Glue. Drying of Paper Coating, Adhesive Activation.
- Paint Industries: --> Stoving for Car Bodies epoxy. Lacquer Steel Panels.
- Screen Printing : --> Ink Drying, Instruments Dial Plastic. Fascia Panel Aluminum.
- Food & Other Industries : --> Baking & Browing Of Bakery Products, Packaging Food Product. Drying Tobacco, Sprayed and Powder Coating.
Features
- Heat up time reduced by over 40%.
- Energy saving of over 15% in some applications.
- Lightweight construction with low thermal mass.
Specifications
Standard Lamps available:
| Element Type | Size | Loading/ Watts At 220~240V | ||||||||
| FTE / FFE | 245mm x 60mm | 150 | 250 | 300 | 350 | 400 | 500 | 650 | 750 | 1000 |
| HTE / HFE | 122mm x 60mm | - | 125 | 150 | - | 200 | 250 | 325 | - | 500 |
| QTE / QFE | 60mm x 60mm | - | - | - | - | - | 125 | - | - | 250 |
| SFSE | 122mm x 122mm | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 650 | 750 |
| Mean SurfaceTemp. In °C | - | 315 | 418 | 452 | 480 | 515 | 560 | 630 | 670 | 750 |
| Min wave length in micron | - | 6 | 4.9 | 4.6 | 4.5 | 4.2 | 4.0 | 3.55 | 3.5 | 3.0 |

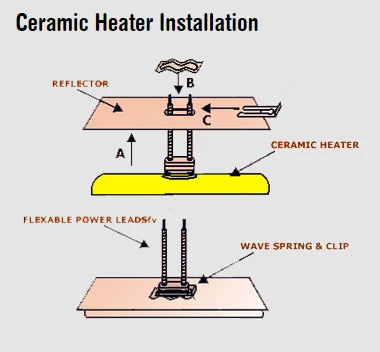

Installation
Specification
| Wattage Densities : | 1.1 w/cm² to 6.8 w/cm² |
| Working Temperature: | 300° C to 700° C |
| Operating Voltage: | Rated voltage Range upto 440 V |
| Radiation Distance: | 100mm to 200mm |
| Easy Fixing: | Heater Fixing is illustrated the simple way of assembly. Heaters are supplied with kit of spring. |
Packaging & Shipping
| Packaging | As per your Requirement |
| Shipping | As per your Requirement |
Company Information
Company Certification
With the mindset of adherence to quality standards, Anupam Heaters is the 1st Indian Heater Manufacturing company to undergo audit for Quality Management System by Lloyd's Register and achieved certification under ISO 9001-2000. Currently certified under ISO 9001-2008, we take great pride to inform that our products are also meeting the European Safety Standard EN60335-1 “CE-Mark”.
Company History
Established in 1984 & Pioneers in developing Ceramic Band Heaters in India, Today we are one of the leading Indian companies to manufacture wide range of quality Heating elements for Plastic & Other Allied Industries. Since our inception, we have established a strong foothold in the Indian & Overseas market.
With the mindset of adherence to quality standards, Anupam Heaters is the 1st Indian Heater Manufacturing company to undergo audit for Quality Management System by Lloyd's Register and achieved certification under ISO 9001-2000. Currently certified under ISO 9001-2008, we take great pride to inform that our products are also meeting the European Safety Standard EN60335-1 “CE-Mark”.
Company History
Established in 1984 & Pioneers in developing Ceramic Band Heaters in India, Today we are one of the leading Indian companies to manufacture wide range of quality Heating elements for Plastic & Other Allied Industries. Since our inception, we have established a strong foothold in the Indian & Overseas market.
