Help CenterCoil Type Nozzle Band Heaters
Related Products

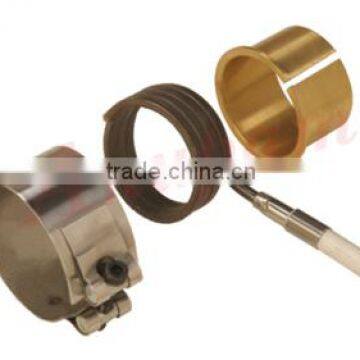

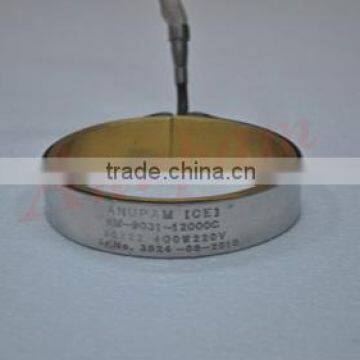

Anupam's nozzle band heaters "COIL TYPE" are capable of performance under the most adverse conditions. Highly recommended for processing high temperature resins to eliminate premature failures due to burn out/ process material leakage.
Heat transfer is based on conduction as well as on radiation principle, which not only improves the thermal efficiency but easy to assemble on nozzles as no pressure on heating surface is essential. Even unskilled operator can fit the heater with no risk of failure of the heater.
Coil Type Nozzle Heaters are specially designed to prevent the failures of heaters against the leakage and contamination of plastic material at nozzle position. This heater can meet the higher temperature requirement prior to moulding at nozzle position.
Applications
For heating the Nozzles of Injection Molding Machines.
Features
| DESCRIPTION | MODEL STANDARD | MODEL BRASS LINING |
| Sheath Material | SS / Incoloy | SS / Incoloy |
| Insert | - | Brass |
| Wattages | 10W/ Sq cm | 10W/ Sq cm |
| Voltage | 220/230/240 V | 220/230/240 V |
| Diameter | Minimum 25 mm | Minimum 25 mm |
| Length | Minimum 25 mm | Minimum 25 mm |
| Thickness | 10 mm | 12 mm |
| Working Temp | 400° C | 500° C |
| Provision of TC & TC hole | Yes | Yes |

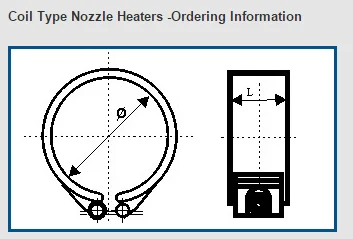

Ordering Information
| L | Length Of Heater |
| Ø | Inside Diameter Of Heater |
| Operating Voltage | |
| Wattage | |
| Lead Length |
| Packaging | As per your Requirement |
| Shipping | As per your Requirement |
With the mindset of adherence to quality standards, Anupam Heaters is the 1st Indian Heater Manufacturing company to undergo audit for Quality Management System by Lloyd's Register and achieved certification under ISO 9001-2000. Currently certified under ISO 9001-2008, we take great pride to inform that our products are also meeting the European Safety Standard EN60335-1 “CE-Mark”.
Company History
Established in 1984 & Pioneers in developing Ceramic Band Heaters in India, Today we are one of the leading Indian companies to manufacture wide range of quality Heating elements for Plastic & Other Allied Industries. Since our inception, we have established a strong foothold in the Indian & Overseas market.
