Help CenterSealed Mica Nozzle Heaters
US$ 3 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Nozzle Heaters
Power Source:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
MUMBAI PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Other, Nozzle Heaters
Power Source
Electric
Brand Name
Anupam
Model Number
Anupam
Dimension(L*W*H)
Customized
Weight
As per Dimensions
Voltage
Customized
Power(W)
Customized
Certification
CE Certification Available
Warranty
One Year Against Manufacturing Defects
After-sales Service Provided
No overseas service provided
Product Description
Nozzle heaters are hermetically sealed for liquid plastic during the manufacturing process. The connection between the heating element and the leads is protected by a special fitting made of brass/stainless steel 1 mm thick, without welding which allows a high mechanical strength in the most delicate area of the heater.
Construction :
A thin layer of the "high" thermal conductive MI material is used to electrically insulate the element wire from the inside diameter of the heater sheath. A thicker, "low" thermal conductivity layer backs up the element wire, directing the heat inward toward the heated part. The result is more efficient heat transfer—a performance solution lowering element wire temperatures and increasing heater life
Applications
- For heating the nozzles of Injection Molding Machines
- Extruders
- Blown film dies.
- Nozzles of Injection molding machines.
- Other cylinder heating applications.
- All Plastic & Rubber Processing Machinery.
Features
- Contributes to faster heat-up and throughput for increased productivity.
- Gives an almost instant response to temperature control.
- Resists contamination by overflow of plastic or other free-flowing materials.
- Eliminates cumbersome clamping straps, making installation easier.
Specifications
| DESCRIPTION | MODEL AH 2 | MODEL BRASS LINING |
| Sheath Material | Brass | Stainless Steel |
| Wattage | 4.5 W / Sq. cm | 6W / Sq. cm |
| Voltage | 230 V | 230 V |
| Diameter | Min. 25mm Max. 110mm | Min. 25mm Max. 110mm |
| Length | Min. 25mm Max. 70mm | Min. 30mm Max. 100mm |

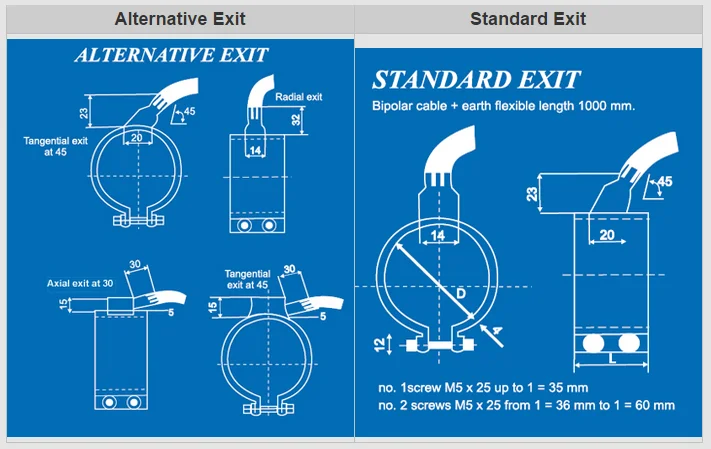

| Termination type | Refer Ordering Information | |
| Lead Length | 1000 mm | 1000 mm |
| Working Temp | 300 / 320° C | 300 / 400° C |
Ordering Information
- Inner Diameter Of Heater.
- Outer Diameter Of Heater.
- Length Of the Heater.
- Wattage / Voltage Of Heater.
Packaging & Shipping
| Packaging | As per your Requirement |
| Shipping | As per your Requirement |
