Help CenterShort Wave Quartz Infrared Heaters
Related Products
Short wave quartz infrared heaters/ Lamps are used in various industrial applications. It contains tungsten filament, helically wound, encased in quartz envelope. Tungsten as resistive element is capable of generating temperature in excess of 2750° C. Its response time is very rapid in 1 second it emits over 90% of IR energy. It is by products free & pollution free. Heat focus is very accurate due to compact and narrow diameter of IR tubes. Short wave IR element has maximum heating rate of 200W/inch.
The quartz envelope allows transmission of IR energy and protecting the filament from convective cooling and corrosion. Addition of small percentage of halogen gas in it not only increases life of emitter but also protects blackening of tube and depreciation on infrared energy. The rated life of short wave IR heater is around 5000 Hrs
White ceramic coating/ gold coating
Short wave IR heaters are also available with Gold/Ceramic coating, which reduces visible glare and energy loss. It acts as reflectors and raises infrared energy output compared to infrared heaters without coating. Ceramic coating/ Gold Coating is available to hold the lamp envelope which helps in stronger and efficient radiation in a specific direction. This type of coating eliminates the need for reflective mirrors, making it space-savvy and low cost alternative.
The performance of white ceramic coating is much better than gold layer. Gold coating is much better than gold layer. Gold coating gradually disappears if temperature exceeds 350° C, but ceramic coating performs upto 950° C and lasts longer than the life of the lamp.
Applications
- Plastics - PET preform heating in Stretch blow moulding machines
- - Powder coating curing
- - Resins Hardening , Rubber coating drying.
- Adhesives - End polymerization
- Food - Pasteurization / Sterilization
- Paper Industry - Humidity Control
- Industrial Drying - Paint , Varnishes , Dyeing
- Semi Conductor Industries - Heating of wafers
- Printing - Printing ink drying in screen and offset machines
Features
Short wave IR Heaters/Lamps are available in different:
- Shapes and sizes
- Coatings which act as reflector
- Wattage ranges from 200 watts to 3000 watts & more
- Voltage ranges from 110 volts to 440 volts-AC

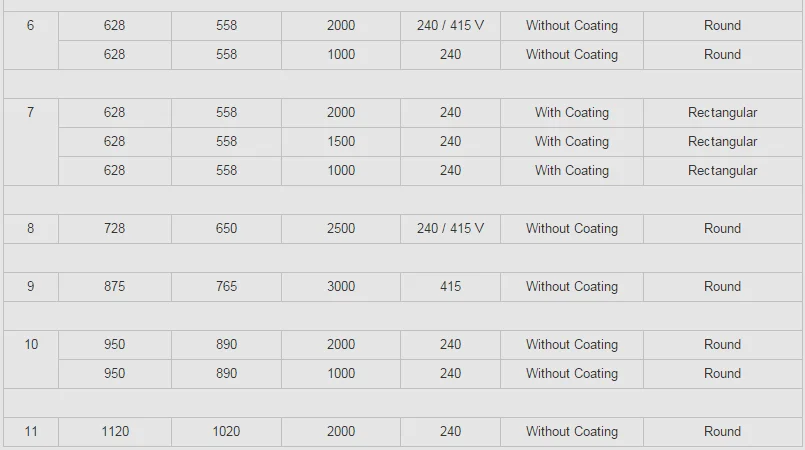

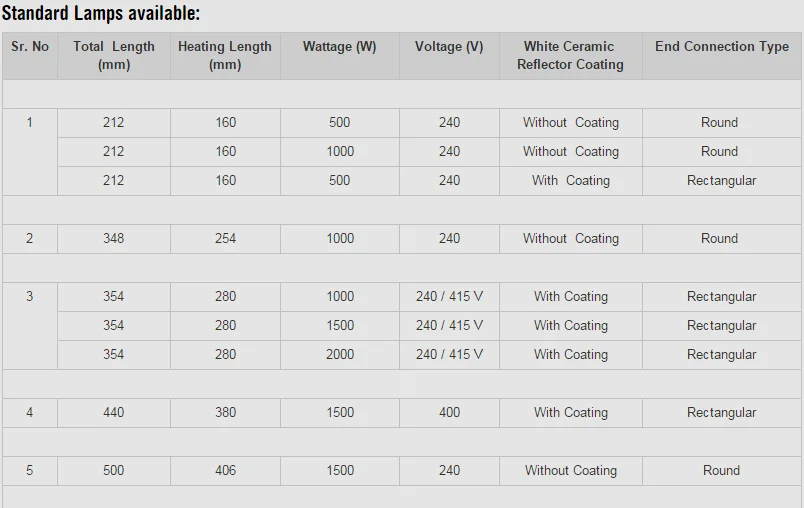

Specifications

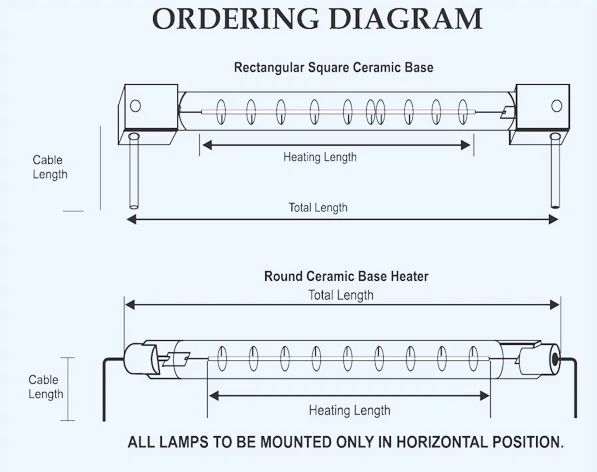

Ordering Information
- Total length in mm
- Heating length in mm
- Wattage
- Voltage
- Ceramic end connection- square , round , rectangular
- Lead length in mm ( Standard lead wire length at both ends = 300 mm )
- Coating available - Gold coating / Ceramic coating
| Packaging | As per your Requirement |
| Shipping | As per your Requirement |
With the mindset of adherence to quality standards, Anupam Heaters is the 1st Indian Heater Manufacturing company to undergo audit for Quality Management System by Lloyd's Register and achieved certification under ISO 9001-2000. Currently certified under ISO 9001-2008, we take great pride to inform that our products are also meeting the European Safety Standard EN60335-1 “CE-Mark”.
Company History
Established in 1984 & Pioneers in developing Ceramic Band Heaters in India, Today we are one of the leading Indian companies to manufacture wide range of quality Heating elements for Plastic & Other Allied Industries. Since our inception, we have established a strong foothold in the Indian & Overseas market.
