Vacuum Heated Pressing Furnace up to 1100ºC with 4"Quartz Tube and Water Cold Flange - OTF-1200X-VHP4
Introduction of vacuum heated pressing furnace

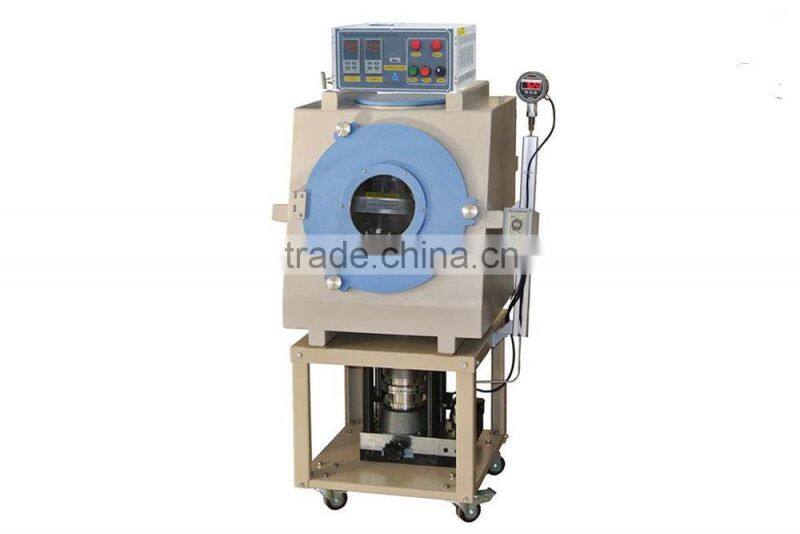

vacuum heated pressing furnace
The OTF-1200X-VHP4 is designed for making dense compound materials under both vacuum & high pressure, and/or bounding multi-layer wafer together under a pressure up to 5 metric tons. It is integrated with split vertical tube furnace with a vacuum-sealed 4" quartz tube and 20T electric hydraulic press, as well as one sets of 0.5" ID graphite pressing die. The furnace can be heated up to 1100ºC using a temperature controller with 30 programmable segments. Water cooled flanges facilitates a vacuum level up to 10E^-5 torr via use of a turbomolecular pump.
vacuum heated pressing furnace
Technical paramaters of vacuum heated pressing furnace:
|
Max. Pressure
|
6 metric tons ( 10 MPa on pressure gauge ) limited by 0.5" graphite pressing die Warning: Higher pressure may damage 0.5" die. If you may higher pressure , please contact us to reduce ID of pressure die |
|
Hydraulic Pump
|
|
|

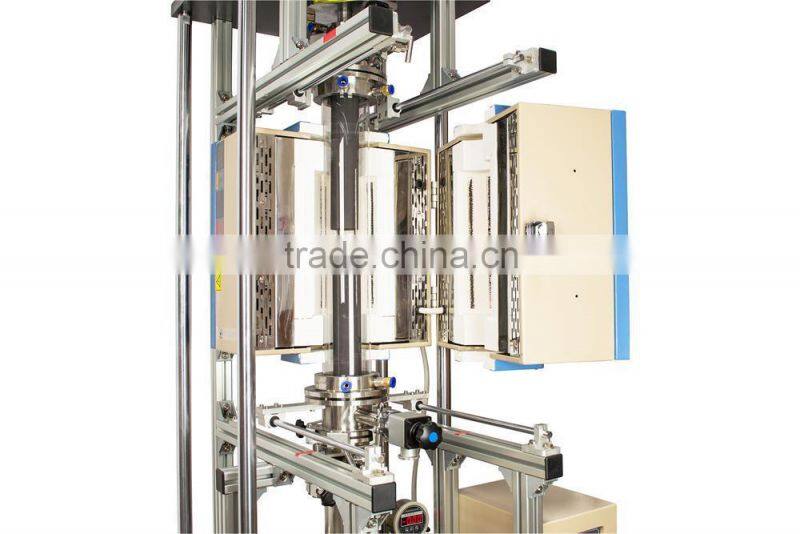

Vertical Furnace
|
|
Quartz Tube & Sealing Flange |
One quartz tube 100 OD x 94 IDx 640L mm (4" x 25") is included
12L/minute water flow is required, using a recirculating water chiller to save water Max. achievable vacuum level: 10E^-5 torr by molecular pump ( larger turbo pump at 2 middle pictures below |

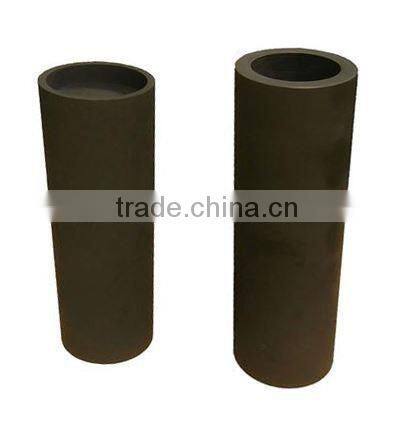

High Temperature Pressing Die Set (Optional) |
One set of 0.5" ID graphite die are included for immediate use.
The graphite pressing die gets broken easily and is consumable,
Mica spacers are used to adjust the height of die sets (while providing heat insulation).
|
|
Dimensions
|
1050mm(L) x 750mm(W) x 1750mm(H) |
Net Weight |
365 kg |
Weight of Shipment |
450kg |
Warranty |
One year limited standard warranty |

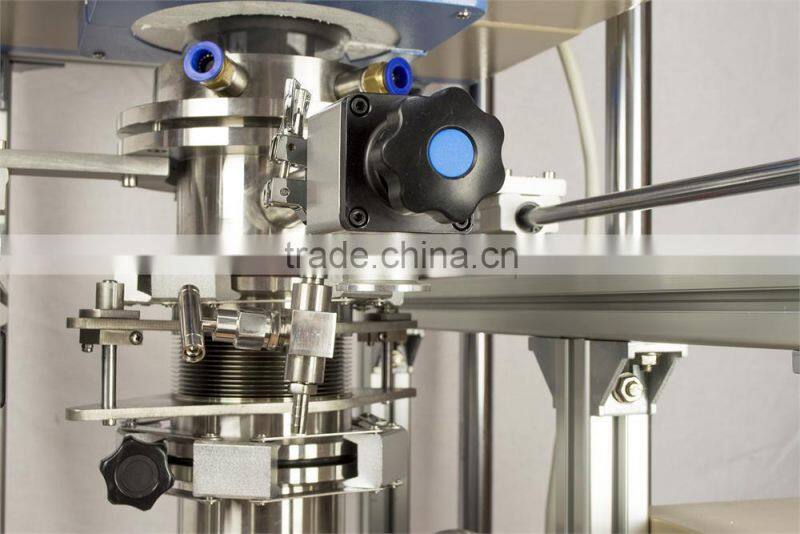

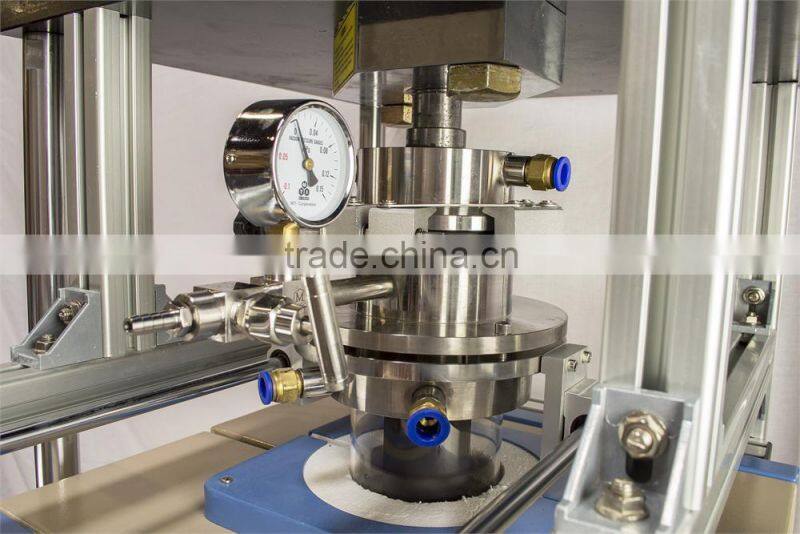

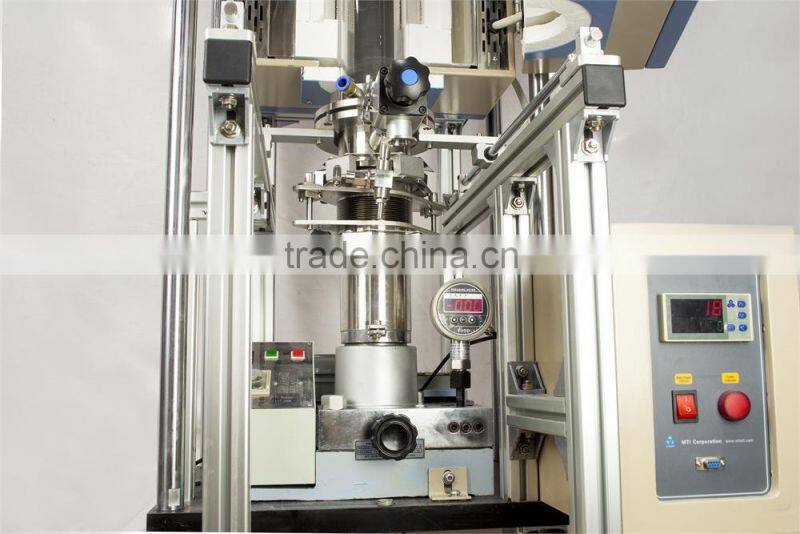

Flange and fittings of vacuum heated pressing furnace

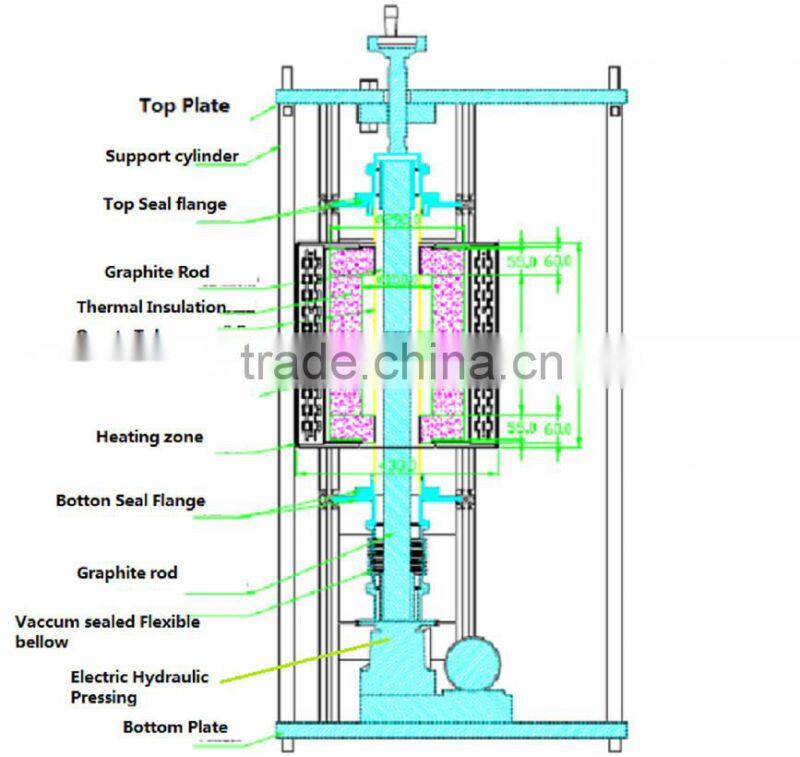

Dimension of vacuum heated pressing furnace

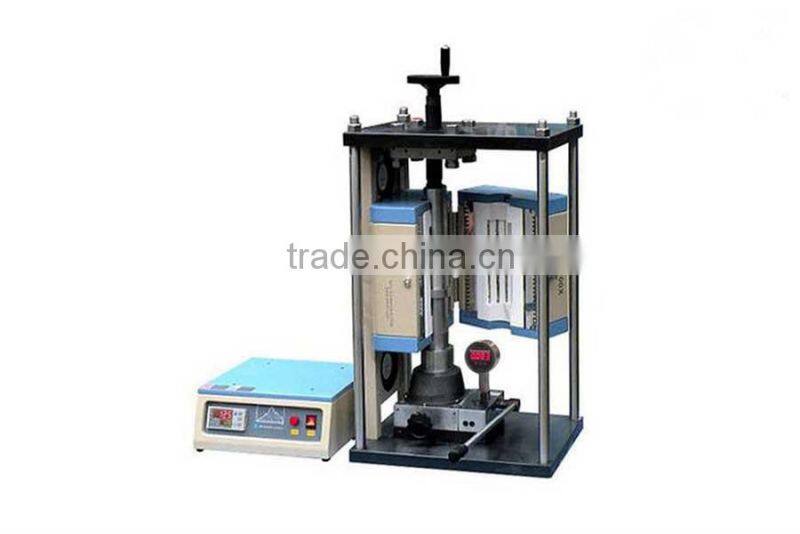

Other hot press machine
