300 ml Ni-Based Super-alloy High Pressure Hydro-thermal Reactor 1100C
Introduction of high pressure hydrothermal reactor
RC-Ni-300 is a 300 ml reactor made of Ni-Base Super-alloy, which has excellent creep strength and anti-oxidation. It can reach 1100 °C with a pressure up to 3Mpa under oxygen or inert gas. It is an ideal tool for preparing advanced material by hydro-thermal method, especially heat treat sample under high oxygen pressure. A solenoid valve is installed on the flange allows auto-pressure relief control. Temp. Control and Pressure Real-time Monitoring software is also included.
Technical parameters of high pressure hydrothermal reactor:
Structure |
|
Working Voltage |
AC 208~240V, Single Phase |
|
Pressure Vessel
|
Made of Ni-Based Super-alloy ( Waspaloy or equivalent ) Air cold flange via aluminium heat radiator |
Reactor Capacity & Dimensions |
70mm OD x 35mm ID x 326 mm height 300 mL capacity |
|
Working Temperature & Controller
|
RT - 1100 °C Max. Digital temperature controller with 30 segment programmable Temperature accuracy +/- 1C |
Working Pressure |
18 MPa ≤ 800 °C 13 MPa ≤ 900 °C 8 MPa ≤ 1000 °C 3 MPa ≤ 1100 °C |
Pressure Monitoring and Relief |
Precision high pressure sensor (measurement Range up to 250 bar) installed on pressure vessel. Pressure monitor can display pressure in Bar. It also allows user to define the high pressure alarm set point. When pressure reaches the alarm set point (Max.15Mpa), pressure inside the vessel will be released via the solenoid valve installed on the flange. For ure >15 Mpa, please shut off the manual needle valve nearby the solenoid valve.) |
PC Control |
A MTS-02 control software is included for controlling and displaying temperature and pressure by PC Strongly suggest you order a brand new lab top with pre-installed & tested software from us at $700 extra cost. PC control module is compatible with Labview software. Pressure & Temp. Real Time Monitoring:
|
|
Accessories
|
SS316 needle valve with 1/4 pipe connector & Pressure gauge included Two consumable Copper Gasket(63mm O.D) are included |
Dimension |
340 mm W x 320 mm D x 820 mm H |

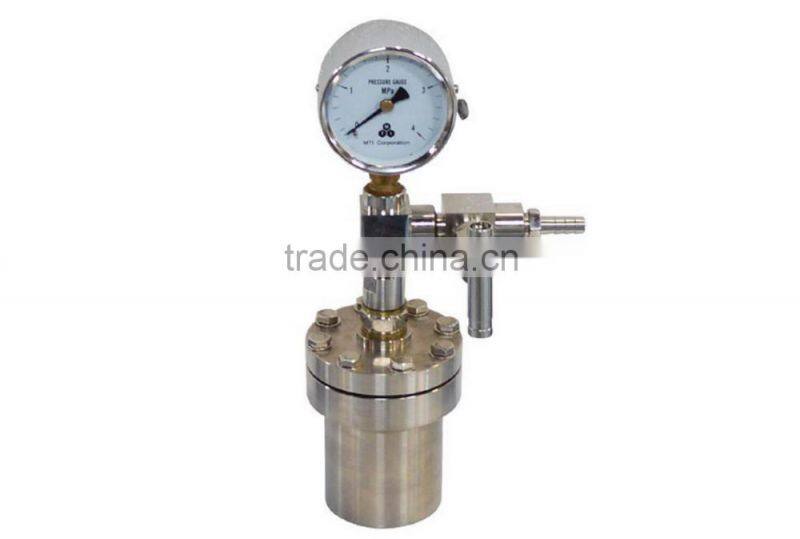

Pressure vessel of high pressure hydrothermal reactor

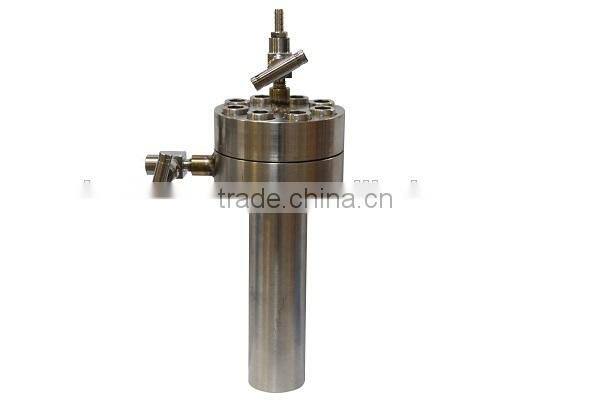

Structure of high pressure hydrothermal reactor

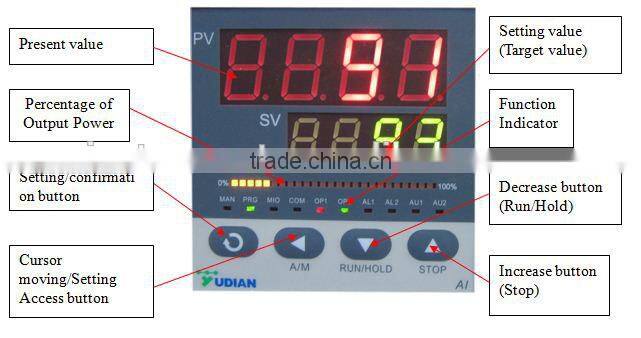

Temperature controller of high oressure hydrothermal reactor
Software of high pressure hydrothermal reactor
