Real factory directly supply high vacuum annealing furnace
Application of vacuum annealing furnace
1.Stainless steel, titanium's surface treatment
2.aerospace material's surface treatment, heat treatment and etc
3.silicaon carbide wafer,other metal and ceramic welding, surface treatment, heat treatment and etc
Featrues of vacuum annealing furnace
1.Alarm system, can protect the system from over temperature.
3.Programmable and PID automatic control
4.Metal key or touch panel operating interface for your option
5.Imported energy saving chamber material
6.Manual, automatic switch freely, easy to operate
7.High sealed steel tank
Technical parmaters of vacuum annealing furnace
| Model | CY-M1600-AOZ |
| Limiting temperature | 1600℃ |
| Working temperature | ≤1600℃ |
| Heating rate | 1~20℃/min(adjustable 10°c/min) |
| Temperature zone | Single |
| Temperature accuracy | ±1℃ |
| Chamber size | 120*120*130mm |
| Heating element | MoSi2 rod |
| Thermal couple | B Type |
| Temperature control | PID automatic control via SCR power control |
| Heating curves | 50steps programmable |
| Chamber material | Imported fiber |
| Sealed method | steel tank |
| Main power | 2kw |
| Working voltage | 220V 50Hz |
| Standard accessories | protective gloves 1 pair, crucible furnace hook 1 pc, alumina crucible 1set,bearing plate 1set, manual book |

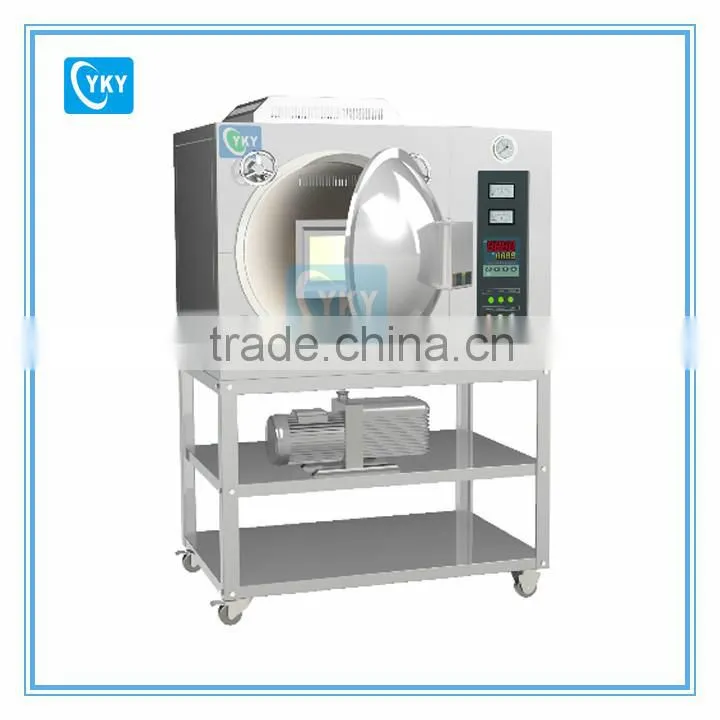

Pictures show of vacuum annealing furnace
Packaging of vacuum annealing furnace
PLY WOOD BOX as below picture show. or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 12month, except wearing parts.
Wearing parts as below:
protective gloves, crucible furnace hook , crucible
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
Contact information
Skype ID: jennyhao8819
Whatsapp/wechat/viber:008615639272359
Tel:0086-0371-55199322
Fax:0086-0371-86036875
Website:
We are always at our service in 24 hours
Q 1.: Are you a trading company or a manufacturer?
A: We are the manufacturer, our factory is located in Zhengzhou city, Henan Provice, China. We welcome any of our potential customer and friends come to visit us.
We also have our own trade department to service our Foreign friends.
Q 2.: Can do customized?
A: Yes, we have own R&D department. Our engineer have worked in this field around ten years. We can design the equipment according the customer request.
Q 3.: What methods of the payment do you accept?
A: We accept: T/T, L/C, WEST UNION, PAYPAL, and Escrow
Q 4: How long will it take to get the delivery day?
A: It depends, general model, 1-5 sets, we can delivery within 10 days. Otherwise, we should check the details depend on the quantity and design.
Q 5: Do you have any overseas after-sales service office?
A: So far, we don't have overseas after sales service center. But, we promise all of our sincerley client that we will support the the after sale service for whole life of our equipment. Also, we will supply the accessories to our client by a value price. We also welcome the one whom want to be our after sale service supplier in their market, we can give them a trainning and accessories supplying.
Thank you for supporting our equipments and we welcome all of the people whom interested in our team come to visit us.
