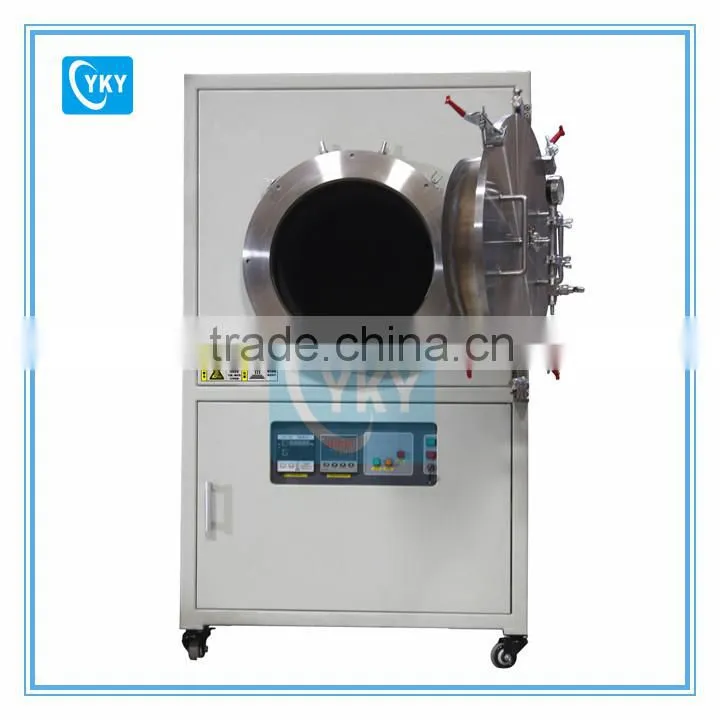

Laboratory multi-function chamber atmosphere vacuum furnace
Featrues of vacuum furnace
1.Side door, easy to operate
2.High quality imported fiber, resistance high temperature 1600 ℃
3.Programmable and PID automatic control
4.Metal key or touch panel operating interface for your option
5.Stainless steel sealed tank
Application of vacuum furnace
1.Chemical analysis, physical measurement under vacuum atmosphere
2.Metal, sintered ceramics, the dissolution
3.Heating small steel parts, roasting, drying, heat treatment
Laboratory, industrial and mining enterprises, scientific research units
Technical parmaters of vacuum furnace
| Model | CY-M1600A-A4Z |
| Display | LED |
| Max. temperature | 1600°C |
| Vacuum degree | 10-²Toor |
| Heating rate | Suggestion 0-20°C/min |
| Temperature accuracy | ±1°C |
| Inside chamber | 300*300*400mm |
| Working environment | Air atmosphere, an inert atmosphere |
| Sealed method | stainless steel vacuum tank |
| Thermal couple | B Type |
| Chamber material | imported fiber |
| Temperature control | PID automatic control via SCR power control |
| Heating curves | 50 steps programmable |
| Rated power | 9.5KW |
| Working temperature | AC 220V 50-60Hz |
| Accessories | Door stopper 1 pc, bearing board 1 pc, glove 1pair, crucible tongs 1pc, crucible 2pcs, manual book |
Pictures show of vacuum furnace
Packaging of vacuum furnace
PLY WOOD BOX as below picture show. or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 12 month, except wearing parts.
Wearing parts as below:
Door stopper, glove, crucible tongs,crucible, bearing board.
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
