Automotive Paint Spray Booth, Large Equipment Bus Truck Spray Booth

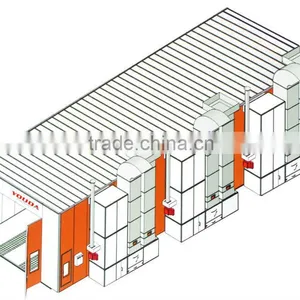

Automotive Paint Spray Booth, Large Equipment Bus Truck Spray Booth photo-1
US$ 20,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
External Size:
15150x6750x5600mm
Internal Size:
15000x5000x5000mm
Voltage:
380V/220V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
External Size 15150x6750x5600mm
Internal Size 15000x5000x5000mm
Voltage 380V/220V
Certification CE
Place of Origin Jiangsu, China
Brand Name Youda

Spray Booth



large equipment bus truck spray booth provide spraying, accelerated drying or baking in one clean, fast operation. Operators may herefore work with complete comfort and confidence, using virtually any type of today’s paint materials.



Any special size designs are available on request, such as Length 12M, 15M, 16M, 18M, 20M etc.



20M spray booth specification recommend







Inside Dimensions: 20000(L)X5000(W)X5500(H) mm
Outside Dimensions: 20150(L)X6750(W)X6100(H) mm
Wall Panels: Thickness: 75mm, double skined with polystyrene insulation(EPS) inside, tongue and groove interlock construction
Roof Panels: 50mm EPS ceiling panel; C-shape ceiling filter holders, powder coated.
Doors: 1 set of 4-fold main door, 4000(W)x5000(H) mm. 3 sets of personnel doors, 800(W)x2000(H) mm,
with Tempered glass observation window
Generator Setting Aluminum ally frame
Intake: 3 sets intake system, each set with 2x5.5KW belt drive centrifugal fan. Capacity:90000cmh
Extract: 3 sets extract system, each set with 1x11KW belt drive centrifugal fan. Capacity:90000cmh
By-Pass: Pneumatic damper from spraying to baking cycle
Heating System:  3 sets of heating system, each set with  Italy Riello 1xRG5S oil burner ,780000Kcal/h heating capacity
Stainless heating exchanger, heat exchange efficiency 85%
Filter System:  Prefilter, ceiling filter, glass fiber filter, activated carbon filter
Lighting: 24 units 4×36W inclined ceiling lights; 28 units of 4x36W vehical side wall lights
Philips tubes
Control System: 380V, 3 phase, 50Hz
Digital temperature controller, hour meter, bake timer, cycle selector and indicator;
All components are recognized, listed or certified by CSA, UL, ETL, CCC or CE.
Total Power 74KW

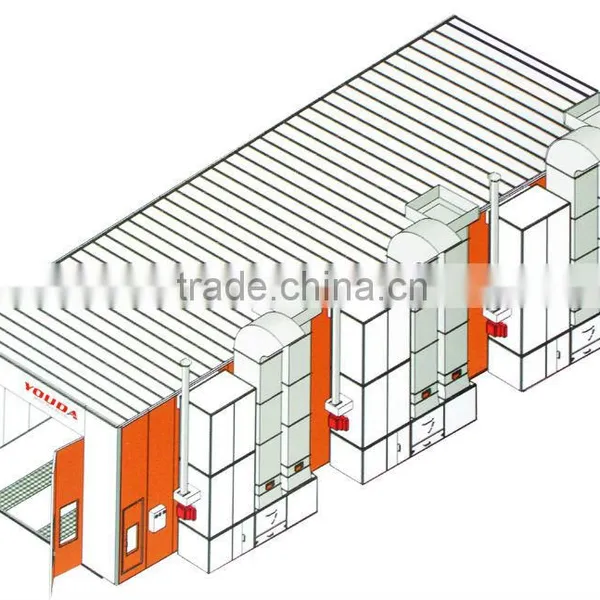

Automotive paint spray booth, large equipment bus truck spray booth







Automotive paint spray booth, large equipment bus truck spray booth Automotive paint spray booth, large equipment bus truck spray booth

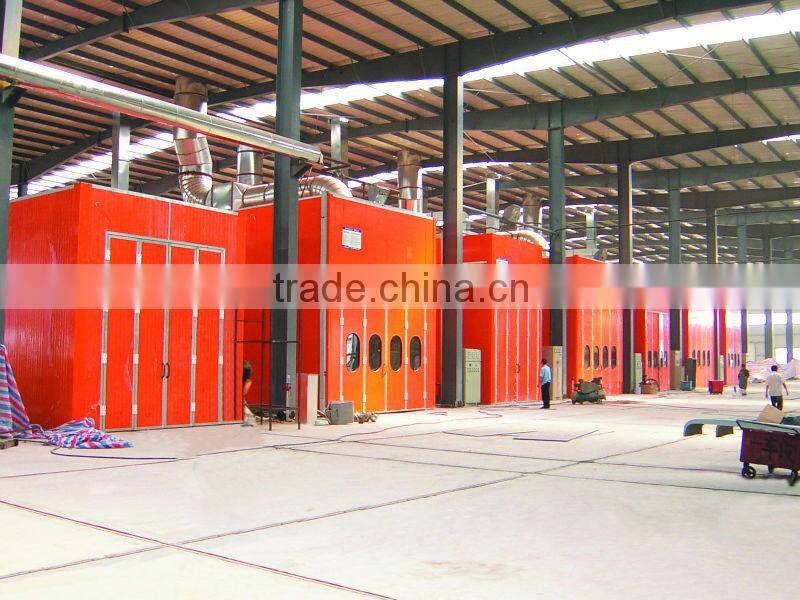

Facility
