4-fold Main Door Spray Booth, Spray Booth Drive Through
US$ 5,500 - 13,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Power:
18KW
External Size:
7000x5400x3400mm
Internal Size:
6900x3900x2650mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Big Size Paint Spray Booth / Bus Spray Booth/ Truck Spray BoothUS$ 20,000 - 35,000MOQ: 1 Set -
4 Fold Main Door Full Down Draft Spray Booth, Oven Auto Paint Booth SprayboothsUS$ 5,000 - 12,500MOQ: 1 Set
-
Industrial Painting Booth, Truck Paint Booth Spray Car Painting CabinUS$ 20,000 - 28,000MOQ: 1 Set
-
Customize / Standard Car Spray Booth, Car Spray Booth PriceUS$ 5,500 - 13,000MOQ: 1 Set
-
Drive Through Door Spray BoothUS$ 5,000 - 12,000MOQ: 1 Set
Power
18KW
External Size
7000x5400x3400mm
Internal Size
6900x3900x2650mm
Voltage
380V/220V
Certification
CE
Place of Origin
Jiangsu, China
Brand Name
Youda
Spray Booth
| Model: | DA-900 IIA | DA-900 IA |
| Inside Dimensions: | 6900(L)X3900(W)X2650(H) mm | |
| Outside Dimensions: | 7000(L)X5400(W)X3400(H) mm | |
| Wall Panels: | Thickness: 50mm, double skined with polystyrene insulation(EPS) inside, tongue and groove interlock construction | |
| Roof Panels: | Galvanized steel sheet; C-shape ceiling filter holders, powder coated. | |
| Doors: | 3-fold main doors, 3000(W)x2600(H) mm. One personnel door, 800(W)x2000(H) mm | |
| Basement and Floor: | 300mm high raised metal- base with 4 pcs ramps outside, complete grating floor | |
| Generator Setting | Aluminum ally frame | |
| Intake: | One backward inclined turbo fan, capacity:25000cmh,motor:7.5kW, direct drive | Two double-intake centrifugal fans, capacity:24000cmh, motor: 2x4kW, belt drive |
| Extract: | One backward inclined turbo fan, capacity:25000cmh,motor:7.5kW, direct drive | One double-intake centrifugal fan, capacity:20000cmh, motor:7.5kW, belt drive |
| By-Pass: | Pneumatic damper from spraying to baking cycle | |
| Heating System: | Stainless heating exchanger, 60°C - 80°C working temperature. Italy Riello RG5S oil burner, capacity 260000Kcal/h | |
| Filter System: | 4 sorts of filters: Prefilter(pocket style), ceiling filter, floor paint-stop filter, activated carbon filter (pocket style). | |
| Lighting: | 8 units 4×36W inclined ceiling lights, 6 units 4×36 W vertical side lights. Philips tubes. Illumination≥1200Lux. | |
| Control System: | Reliable components, digital temperature readout, spray and bake temperature settings, bake timer,spray and bake switch, pressure gauge, emergency stop. | |
| Total Power: | 17.5KW | 18KW |
4-fold main door , drive through optional
Any other Customize / standard are available on request

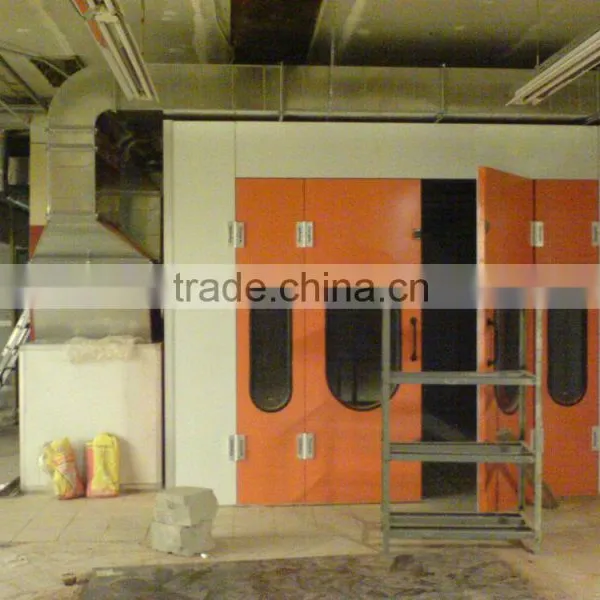

More photos of spray booth

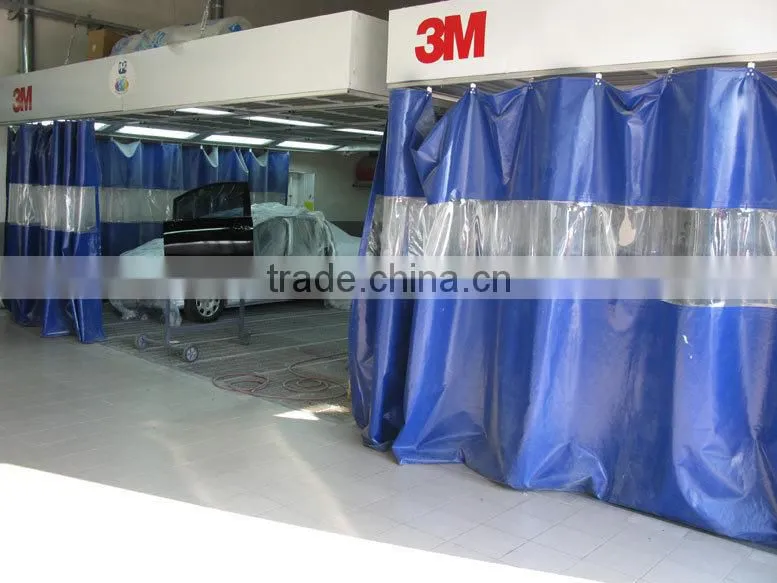

Preparation zone spray booth
Parts of spray Booth
Facility

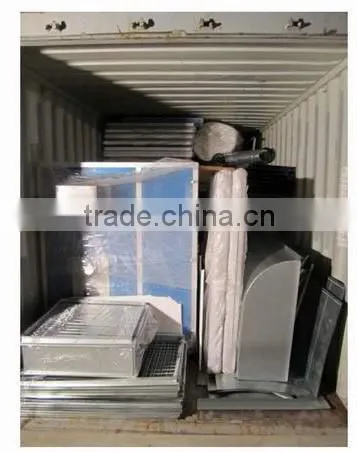

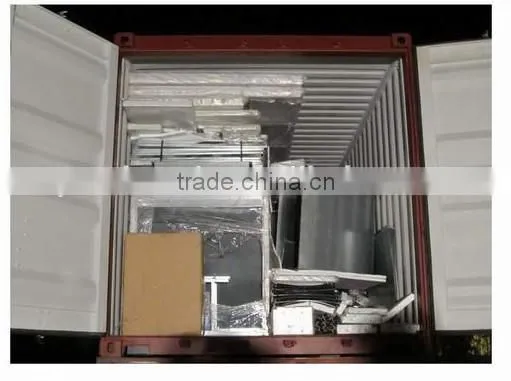

Packing
