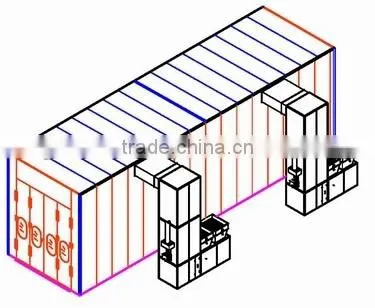

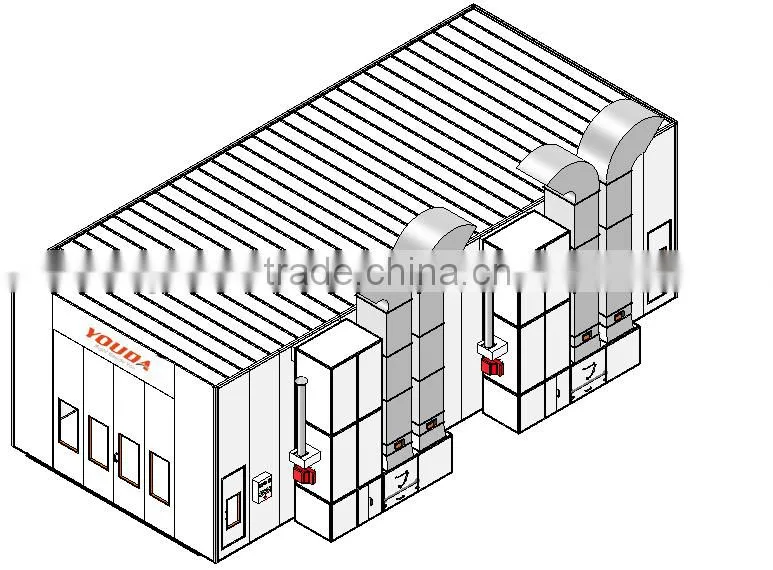

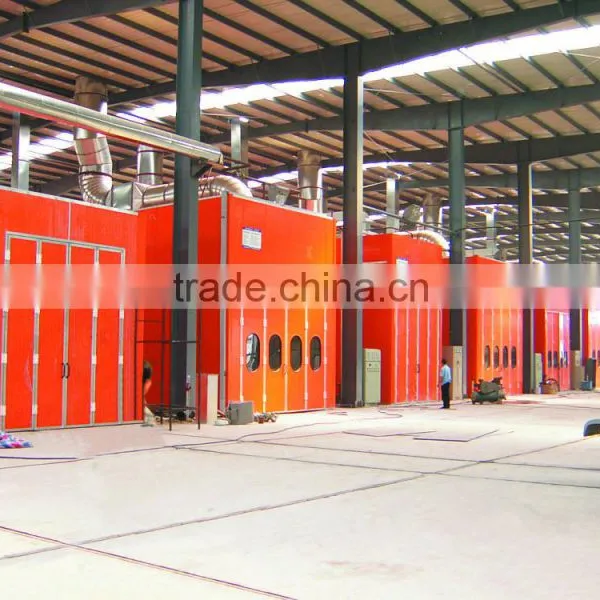

Big Size Paint Spray Booth / Bus Spray Booth/ Truck Spray Booth

Size

Outside size:15150×6750×5600mm(L×W×H)

Inside Size:15000×5000×5000mm(L×W×H)

Base

Pit style, 2 rows, Each row of pit size : 13000 × 760mm (L × W)

Booth

75mm EPS wall panels; 50MM EPS ceiling panels

1 set main door:4000×4500mm(W×H), 2 sets of personnel doors:800×2000mm(W×H), with Tempered glass observation window

Intake

2 sets of intake,each with 2x7.5KW centrifugal fan, total air capacity is 80000M3/h

Heating

2 sets of heating, each with 1x RG5S oil burner, total air capacity is 520000Kcal/h, Stainless steel heat exchanger,Heat exchange efficiency≥85%

Pneumatic damper from spraying to baking cycle

Extract

2 sets of extract,each with 2x7.5KW centrifugal fan,total air capacity is 80000M3/h

Filter

Intake:Prefilter, ceiling filter; Extract:Glass fiber filter , activated carbon filter

Lighting

18 sets of ceiling lights,12 sets of side lights,each 4×36W

Philips lamp,illumination≥800Lux

Control

Digital temperature readout, spray and bake temperature settings, bake timer, spray and bake switch, pressure gauge, emergency stop and etc.

Total Power

57KW
