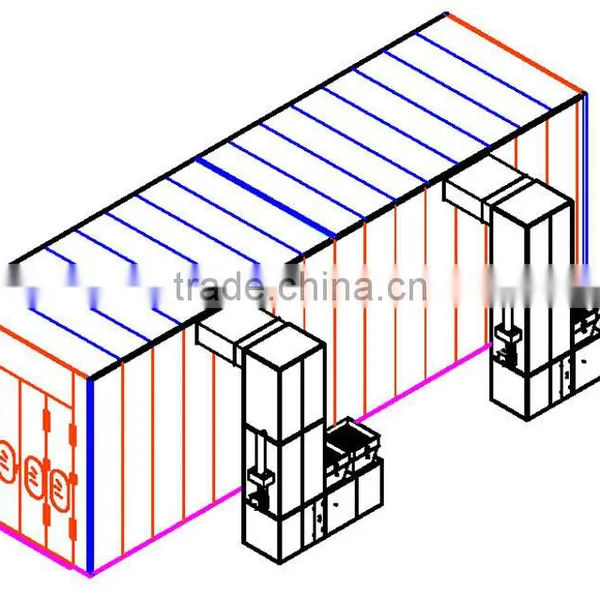

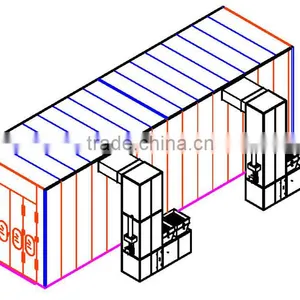

Industrial Painting booth, Truck paint booth spray car painting cabin

Workpiece

Bus, truck

Internal dimensions

15000mm L.X 5000mm W.X 5000mm H.

External dimensions

15150mm L.X 6950mm W. X5700mm H.

Main doors

1 set of manually operated drive-through doors, 4000mm W.X4000mm H.

2 sets of manually operated emergency doors, 800mm W.X2000mm H.

Wall panel

75mm rock wool insulation panel, 50mm roof panel.

Cabin frame

Bended galvanized profiles, post wrapping angles, wall panel, U-channel,ceiling card slot

Lighting

Light tube

Phillips

Q’ty

48pcs of wall light tubes, ≥600 lux.

Circulation fans

Motor power

5.5kw/unit, total 2 units

Air flow

45000 m3/h

0.15m/s with vehicle inside the booth

Filter

Origin

Guangzhou

Model

Floor – PA-50, Ceiling – 600G, Preliminary- 290-EU4

Heating

2 units of diesel burners (Riello28, Italy)

Heat exchanger

2 units, SUS304 stainless steel argon arc welding(our own patent)

Max.temperature for baking

£80 oC

Noise

£85 decibel

Electrical components

Siemens, etc.

Total power

13kw
