Small Lab Testing Vibrating Table for Sale

Name: Small Lab Testing Vibrating Table for Sale
Brand: TENLEE
SKU: 112033273
Availability: InStock

Yueqing Tenlee Electric Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

TENLEE

Model Number:

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai/ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name TENLEE

Model Number VT

Power Electronic

Usage Vibration Testing Machine

1.Applications

These electrodynamic vibration exciters are typically part of the vibration test equipment used in educational, research and laboratory environments.

Vibration testing

Mechanical impedance measurements

Educational demonstrations

Structural response testing

Modal analysis

separation and compacting of powders

small component vibration screening

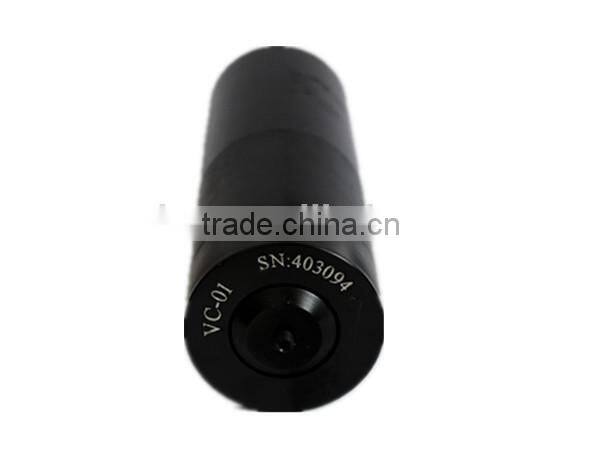

Vibration transducer calibration

2.Specifications

Model	VT-20	VT-50	VT-150	VT-300	VT-500	VT-1000
Rated Force	≥20 N	≥50 N	≥150 N	≥300 N	≥500 N	≥1000 N
Max. Displacement	± 4 mm	± 5 mm	± 7.5 mm	± 7.5 mm	± 12.5 mm	± 12.5 mm
Max. Acceleration	20 g	20 g	40 g	45 g	45 g	45 g
Max. Velocity	1.4m/s	1.4m/s	1.4m/s	1.4m/s	1.4m/s	1.4m/s
Maximum Input Current	≤2.5 Arms	≤6 Arms	≤12 Arms	≤12 Arms	≤25 Arms	≤30 Arms
Frequency Range	20 to10kHz	10 to 9kHz	10 to 5k Hz	10 to 5k Hz	5 to 2k Hz	5 to 2k Hz
Coil DC Impedance:	2Ω	0.9Ω	0.8Ω	0.7Ω	0.7Ω	0.7Ω
Moving Element	0.1 Kg	0.25 Kg	0.45 Kg	0.54 Kg	1.1 Kg	2.2 Kg
Size(mm)	Φ96×132H	Φ138×165H	Φ180×175H	Φ180×200H	Φ220×260H	Φ240×350H
Mounting Size(mm)	105×80 /4-Φ9	150×120 /4-Φ10	200×160 /4-Φ10	200×160 /4-Φ10	240×190 /4-Φ11	240×200 /4-Φ10
Weight	3.3 Kg	8.5 Kg	13.5 Kg	18.5 Kg	29 Kg	42 Kg
Output Type	TableΦ26/ M5	TableΦ30/ M5	TableΦ40/ M5	TableΦ50/ M5	TableΦ70/ M5	TableΦ80/ M5

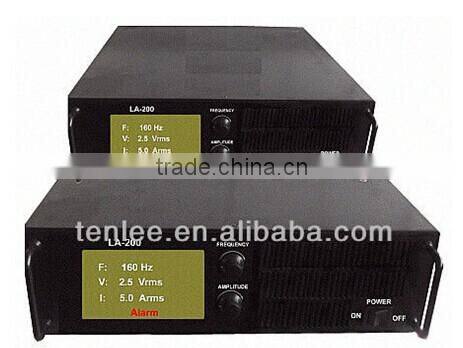

Associated Amplifier	100W	100W/200W	200W/500W	500W/500W	800W	1500W
