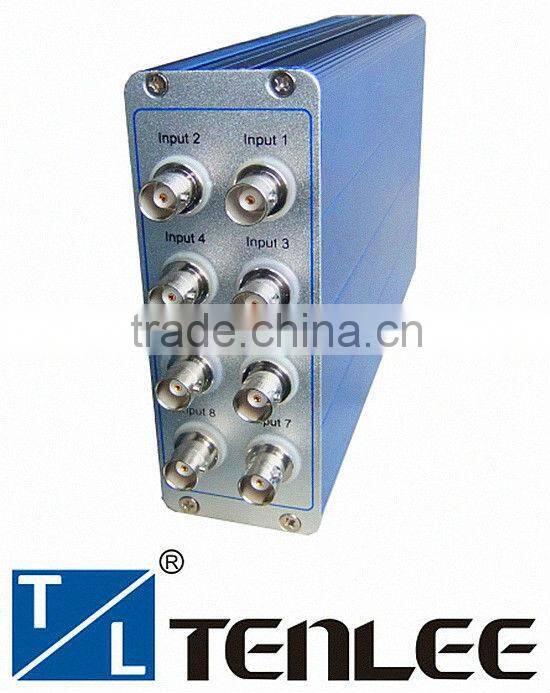

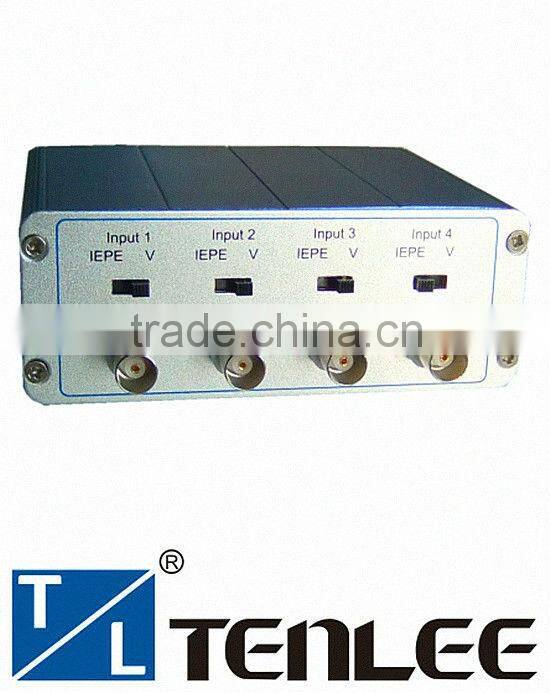

Usb Interface 4,8,16,32 Channel Dynamic Data Acquisition and Analysis Device

Name: Usb Interface 4,8,16,32 Channel Dynamic Data Acquisition and Analysis Device
Brand: TENLEE
SKU: 112032829
Availability: InStock

Usb Interface 4,8,16,32 Channel Dynamic Data Acquisition and Analysis Device thumbnail-1

Usb Interface 4,8,16,32 Channel Dynamic Data Acquisition and Analysis Device photo-1

US$ 500 - 1,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

TENLEE

Model Number:

TL 9000 series

Contact Supplier Request Quote Chat Now

Yueqing Tenlee Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai/ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name TENLEE

Model Number TL 9000 series

1.Introduction

dynamic data collector, it is a kind of multichannel parallel data acquisition system based on USB2.0 interface;

With voltage/IEPE two input mode; Multi-channel arbitrary combination, support for multiple devices cascade, built-in programmable gain amplifier and real-time digital filtering; Supporting function rich in universal test and analysis

software; Provide the LabView and MATLAB data interface, convenient and subsequent data processing; Particularly

applicable to the company production of force and acceleration sensor matching vibration measurement data

acquisition/analysis system, the modal test system, etc.

2.Specifications

Model		9004	9004H	9204H	9208	9216	9232
Channels	Input(AD)	4	4	4	8	16	32
	Output(DA)	0	0	2	2	2	2
Input Signal Range	Voltage	±10VPEAK	±8.8VPEAK	±10VPEAK	±10VPEAK	±10VPEAK	±10VPEAK
	IEPE	±10VPEAK	±8.8VPEAK	±10VPEAK	±10VPEAK	±10VPEAK	±10VPEAK
Input Signal Frequency Range	Voltage	DC to 50kHz	DC to 200kHz	DC to 100kHz	DC to 50kHz	DC to 50kHz	DC to 50kHz
	IEPE	0.3Hz to 50kHz	0.3Hz to 200kHz	0.3Hz to 100kHz	0.3Hz to 50kHz	0.3Hz to 50kHz	0.3Hz to 50kHz
Signal Input(AD)	Signal Channel Sampling Rate	100kHz	3MHz	1MHz	100kHz	100kHz	100kHz
	Simultaneous Sampling Rate	100kHz	750kHz	1MHz	100kHz	100kHz	50kHz
	AD bits	24	16	16	24	24	24
	Bulit-in Gain	×1 ,×10 , ×100	×1 ,×10	×0.1 , ×1, ×10 ,×100	×1 ,×10,×100	×1 ,×10,×100	×1 ,×10,×100
	Accuracy	≤±0.5%	≤±0.5%	≤±0.5%	≤±0.5%	≤±0.5%	≤±0.5%
Signal Output ( DA)	Conversion Rate	-	-	500kHz	500kH	500kHz	500kHz
	Analog Output Range	-	-	±10VPEAK	±10VPEAK	±10VPEAK	±10VPEAK
	Accuracy	-	-	≤±1%	≤±1%	≤±1%	≤±1%
Size(mm)WHD		100×122×45	196×122×45	240 ×69×277	240 ×69×277	240 ×69×277	340 ×132×277
Weight		460g	750g	3.5kg	3.5kg	4.0kg	6.5kg
Power Supply		USB Self –powering	7.5VDC	220V50Hz	220V50Hz	220V50Hz	220V50Hz
