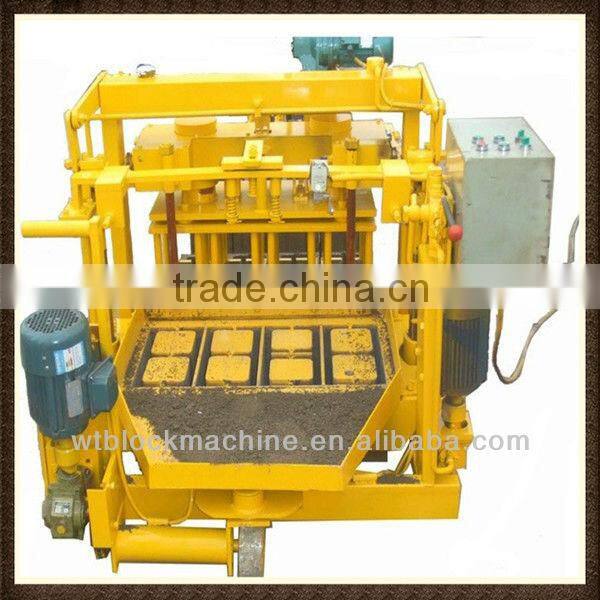

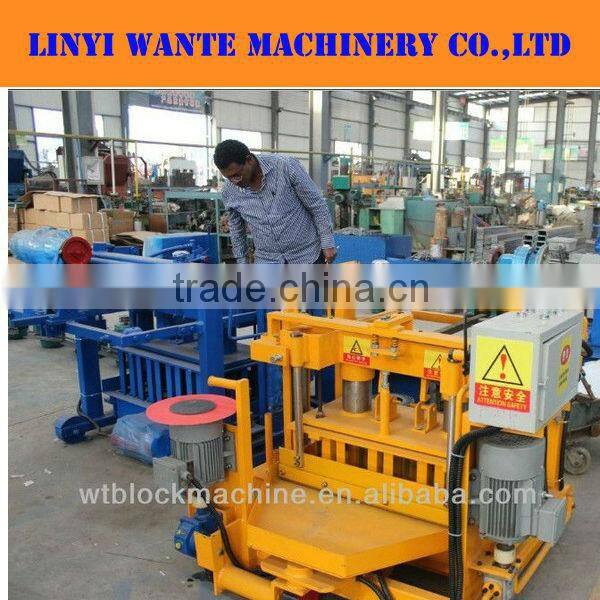

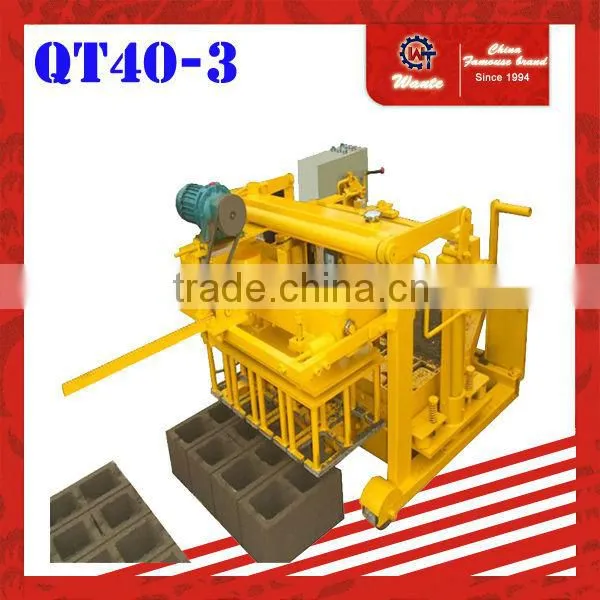

QT40-3 moving design layout for hollow block main advantage
1.ISO/CE quality assurance
2.High quality
3.Moving block machine
4.Reasonable price
QT40-3 moving design layout for hollow block specification
1. Using CE swith, Italian technology, and hydraulic demould
2. Saving labor force and easy to operate
1. QT40-3 moving design layout for hollow block specification and technical parameters
forming machine main theoretical data | |||
Dimension of host machine | 1800×1400×1100mm | control style | Electrical control system |
forming style | Vibration with hydraulic | Vibration force | 35.5KN |
vibrator style | mould vibrate | Host machine power | 5.2KW |
forming hight | 40-250mm | moulding period | 25S |
weight of host machine | 0.8T | size of pallet | No need pallet |
Voltage | 220/240/380/440V | ||
block machine line area needed | |||
Workshop | 50 m2 | ||
Total area | About 800m2 | ||
Worker arrangement | |||
operate | 1 | Material loader | 1 |
Total | 2 | ||
Production capacity | |||
Size(L x W x H) | Pcs /Mould | Pcs / Hr | |
400X150X200 | 5 | 750 | |
400X200X200 | 4 | 600 | |
400X250X200 | 3 | 450 | |
2. QT40-3 moving design layout for hollow block main advantage
QT40-3 moving design layout for hollow block was formed in advanced design, reasonable structure and high technoque content. Using molding vibration and hydraulic transmission, it can walk both automatically and manualy, also move forward or back. The machine is small shped, low energy consumption and easily handled, but with big output and high efficiency.
...
