WANTE BRAND WT10-15 full automatic egg laying brick block making machine delivering to Mexico

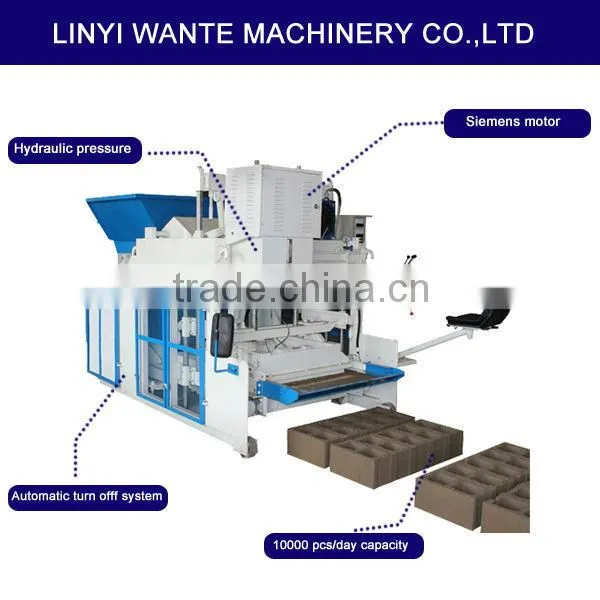

WT10-15 is a fully automatic mobile block making machine of very high productivity. Working together with a mobile palletizing machine, it is possible to make the process of production and packing of elements fully mechanized. Optional superpressing and high frequency vibration functions ensures optimisation of raw materials consumption and increases product quality.
This is a type of „egg-laying” machine which means that it moves on a concrete flat floor and shapes and leaves the fresh formed elements behind it.
Thanks to easy exchange of moulds it is possible to produce wide range of different elements. For example: hollow blocks, ceiling, floor blocks, solid blocks, kerb stones, lawn borders.
Technical data | |
Overall dimension |
3150*1800*2400mm |
Demold method |
Hydraulic |
Turning method |
Hydraulic |
Hydraulic system pressure |
16-20Mpa |
Excitation frequency |
3200Hz |
Total power |
16KW |
Total mass |
4200KG |
Molding cycle |
10-15S |
Molding |
10 Pcs/mould(400*200*200/390*190*190 mm) |
Capacity |
12000Pcs/ 8h |
Types of bricks can be made |
390*240*190/390*190*190/390*115*190 All kinds of moulds can be made by customers' drawings |
Moving method |
Automatically move and hydraulic steering |
Excitation way |
Three-dimensional box excitation |
Raw material |
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
More details
WANTE BRAND WT10-15 full automatic egg laying brick block making machine delivering to Mexico

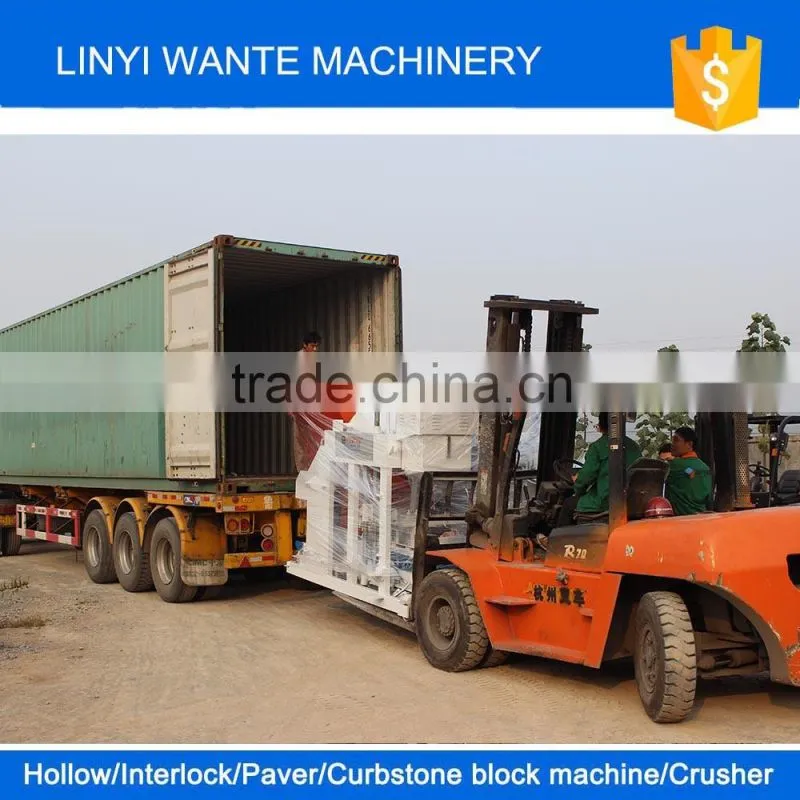

Delivery photos
WANTE BRAND WT10-15 full automatic egg laying brick block making machine delivering to Mexico
Company profile
Linyi Wante Machinery Co.,Ltd
Linyi Wante Machinery Co., Ltd has long endeavoured to the research, production and sales of the block making machine,
there is the state-of-the-art equipment, super technology and high standards of test base.
Headquarter: Room1518, kaiyuanshangcheng, No.10 Jinyueshan Road, Linyi, Shandong, China
Office number: +86 539- 8113558
Fax number: +86 539- 8110558
Mobile phone: +86-17853995669
Skype ID: linyidaxue529
QQ: 974515079
