WANTE machinery WT2-10 hydraulic interlock clay brick machine hydraulic clay bricks press machine
WANTE machinery WT2-10 hydraulic interlock clay brick machine hydraulic clay bricks press machine

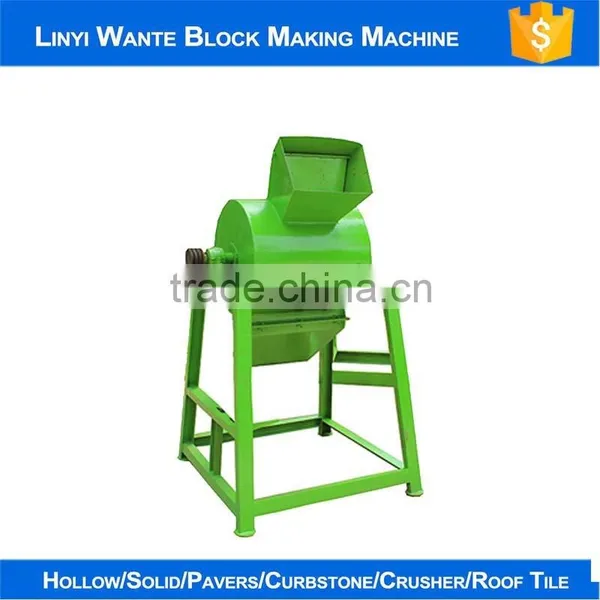

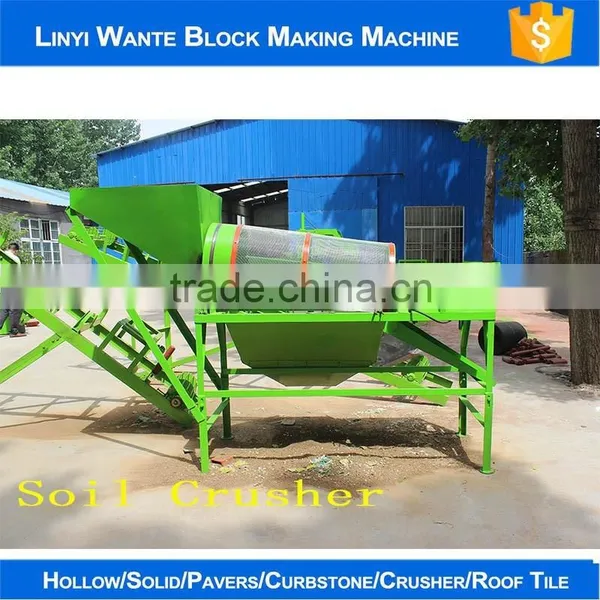

1. Big clay made into small size by soil crusher

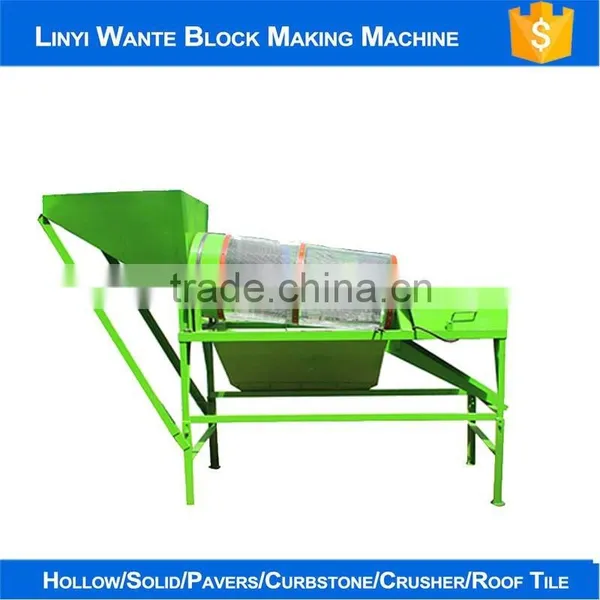

2. Remove the big size clay, use small size clay only

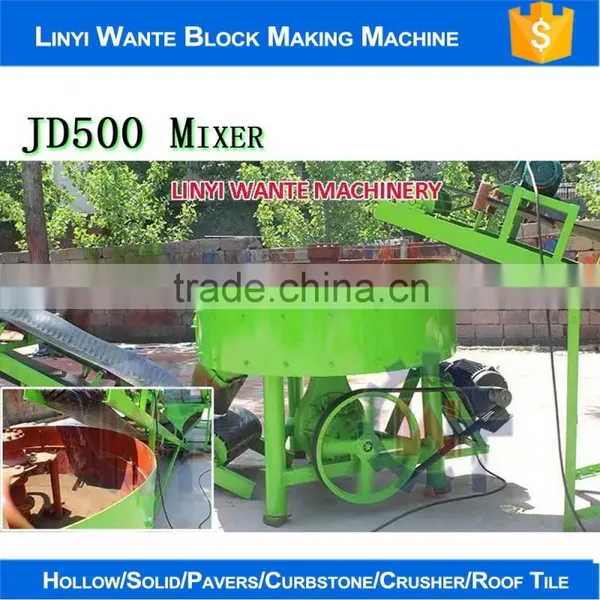

3. Pour the clay and cement to mixer , mixing them with water
4. Transfer the finished raw material to host machine by conveyor machine.

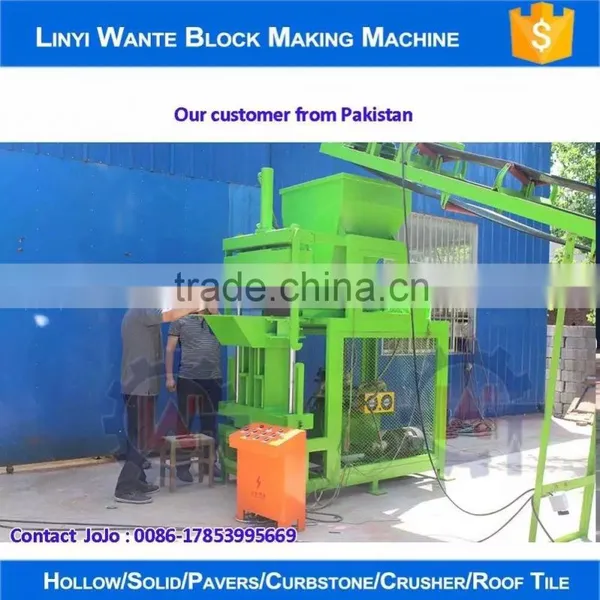

5. Produce green block.
6. Carry the green block to curing aera.
WANTE machinery WT2-10 hydraulic interlock clay brick machine hydraulic clay bricks press machine
WT2-10A hydraulic interlocking block machine | |
Overall size |
1400(L)×1100(W)×2100(H)mm |
Shaping cycle |
10-12 seconds |
Power |
7.5 KW |
|
12 Hp diesel engine |
Pressure |
16Mpa |
Total weight |
1300 KGS |
WANTE machinery WT2-10 hydraulic interlock clay brick machine hydraulic clay bricks press machine
Overall size mm |
1100(L)×1100(W)×1400(H)mm |
Motor |
5.5KW |
Capacity |
500KGS/H |
Electricity |
380V/220V/ (adjustable) |
Total weight |
300 KGS |
WANTE machinery WT2-10 hydraulic interlock clay brick machine hydraulic clay bricks press machine
Power |
3KW |
Capacity |
480KGS/h |
Rated power |
380V or 220V |
Size |
Diameter:500mm |
Total weight |
320 KGS |
WANTE machinery WT2-10 hydraulic interlock clay brick machine hydraulic clay bricks press machine
Overall size mm |
1200(L)×1200(W)×1200(H)mm |
Mixing time |
3-5mins |
Feeding volume |
500L |
Output volume |
350L |
Power |
7.5 kw |
Total weight |
400 KGS |
Block size |
Piece/mold |
Pieces/hour |
Pcs/day |
300x150x100mm |
2 |
500-600 |
5000-6000 |
Block molds
Linyi Wante Machinery Co., Ltd established in 1994.our company has long engaged in the research,production and sales of building meterial and construction machine. There is state-of-the-art equipment, superb technology and high-standard test bases.Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing
domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry.
