Factory price WT2-10 hydraulic machine for product block and brick clay
- 100 Set / Sets per Month
- qing dao
- T/T L/C D/P D/A Credit Card PayPal
- Low price high quality China WT2-10 soil clay blocks making machine production line
- fully automatic WT2-10 kenya solid cement interlocking brick making machine
- Hot sale WT2-10 soil clay interlocking brick block making machine in Pakistan
- WT1-20 clay brick making machine for clay,earth block machine
- WT2-20M diesel interlocking block machine 2pcs/mould
- WT2-20M hydraulic press brick machine,ecological bricks machinery
Product Details
Condition: | New | Type: | Interlock Block Making Machine | Brick Raw Material: | Clay |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 5600/day | Place of Origin: | Shandong, China | Brand Name: | Wante |
Model Number: | Interlock Block Making Machine | Voltage: | 220V/380V | Power: | 7.5kw |
Dimension(L*W*H): | 1800*1400*1100mm | Certification: | ISO9001:2008 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
plastic or nude package
Product Description
Factory price WT2-10 hydraulic machine for product block and brick clay

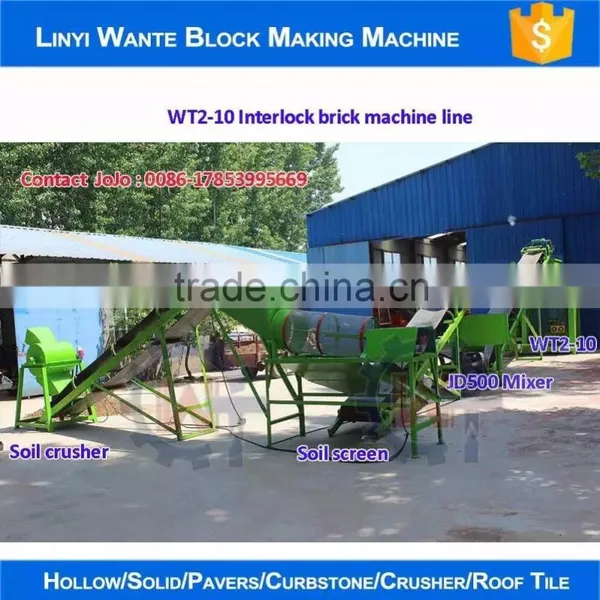

WT2-10 soil Clay and cement block making machine in Pakistan working process :
1. Big clay made into small size by soil crusher
2. Remove the big size clay, use small size clay only
3. Pour the clay and cement to mixer , mixing them with water
4. Transfer the finished raw material to host machine by conveyor machine.
5. Produce green block.
6. Carry the green block to curing aera.

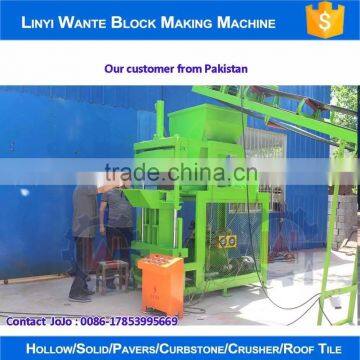

WT2-10 soil Clay and cement block making machine main parameters in Pakistan
WT2-10A hydraulic interlocking block machine | |
Overall size | 1400(L)×1100(W)×2100(H)mm |
Shaping cycle | 10-12 seconds |
Power | 7.5 KW |
| 12 Hp diesel engine |
Pressure | 16Mpa |
Total weight | 1300 KGS |

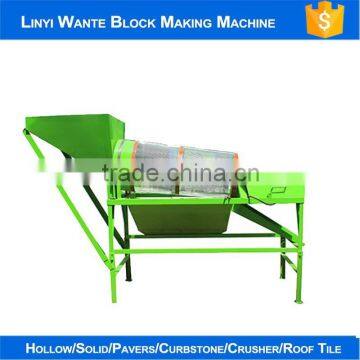

WT2-10 soil Clay and cement block making machine Mesh main parameters in Pakistan
Overall size mm | 1100(L)×1100(W)×1400(H)mm |
Motor | 5.5KW |
Capacity | 500KGS/H |
Electricity | 380V/220V/ (adjustable) |
Total weight | 300 KGS |

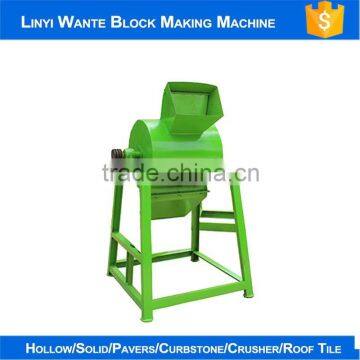

WT2-10 soil Clay and cement block making machine Crusher main parameters in Pakistan
Power | 3KW |
Capacity | 480KGS/h |
Rated power | 380V or 220V |
Size | Diameter:500mm |
Total weight | 320 KGS |

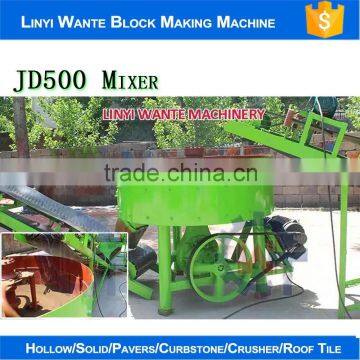

WT2-10 soil Clay and cement block making machine Mixer main parameters in Pakistan
Overall size mm | 1200(L)×1200(W)×1200(H)mm |
Mixing time | 3-5mins |
Feeding volume | 500L |
Output volume | 350L |
Power | 7.5 kw |
Total weight | 400 KGS |
Block size | Piece/mold | Pieces/hour | Pcs/day |
300x150x100mm | 2 | 500-600 | 5000-6000 |
Block molds
